7
Connected to iPod
iPod adapter (optional)
Left channel audio input
Connected to TV box
Video input
Red
V-IN
R-IN
L-IN
White
Camera/radar wire (Accessory of camera/radar)
AV input wire A (optional)
1 out of 2
TV connecting wire (accessory of TV box)
Connected to radar
Connected to camer a
Connected to camera
V-IN
Right channel audio input
Video input
Right channel audio input
Left channel audio input
Yellow
Yellow
(Male radar)
(Female lens)
(Optional)
Video input
4
A B C D

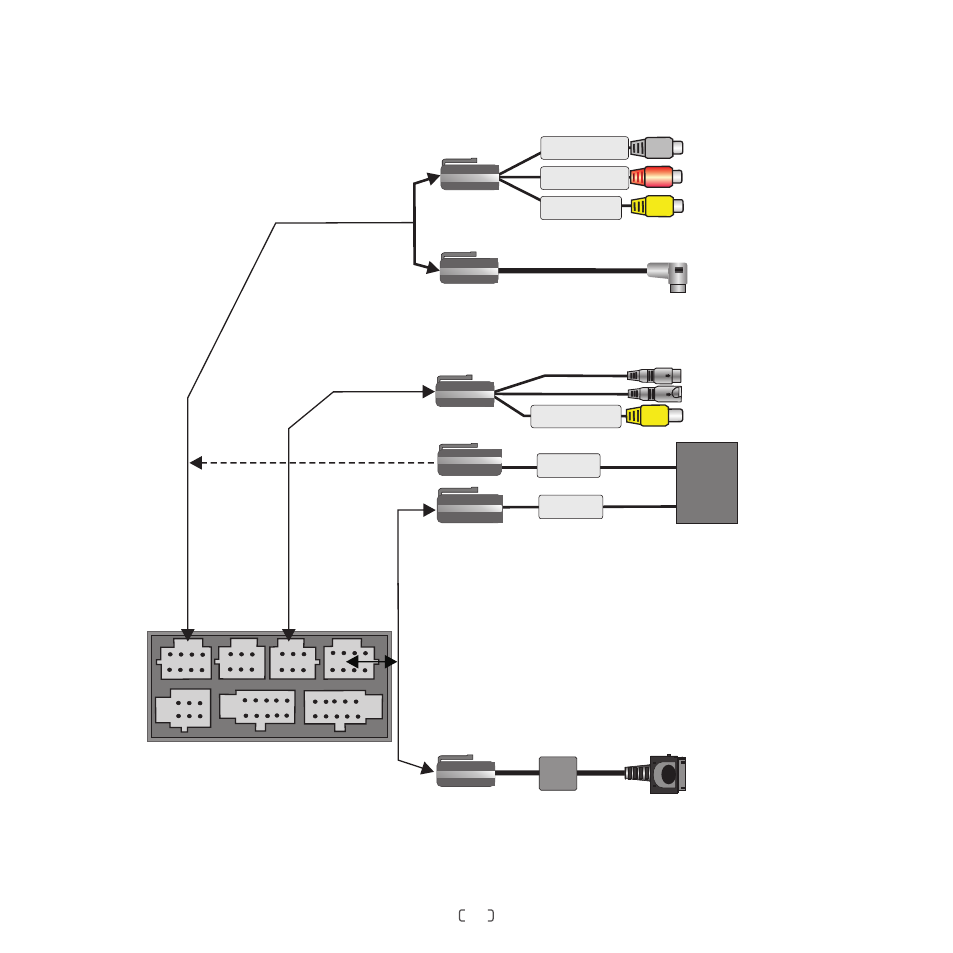

AUX-1
AUX-2
Multi-function compound interface
AUX-1 is preferred to AUX-2,don't connected to AUX-2 if AUX-1
was connected;when iPod was connected to this port,connected AUX-2
to port A.
Connected to
AUX input port
of the priginal
car
