7

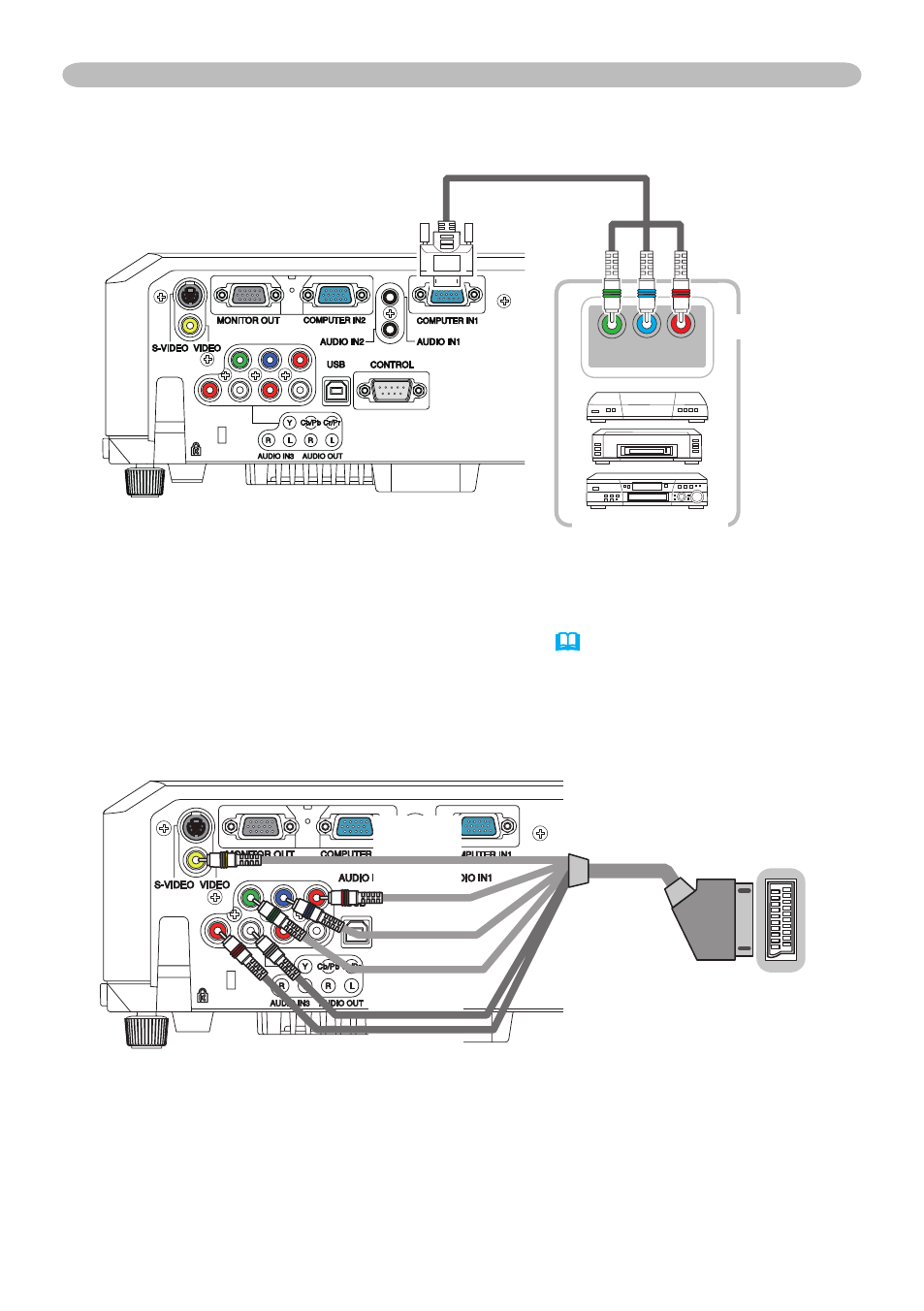

To input component video signal to COMPUTER IN ports
ex.
㪭㫀㪻㪼㫆
㪩
㪙
㪞
㪘㫌㪻㫀㫆㩷㪣
㪘㫌㪻㫀㫆㩷㪩
Y C
B
/P
B
C
R
/P
R
COMPONENT VIDEO OUT
Connection to the ports (continued)
To input SCART RGB signal;
ex.
To input SCART RGB signal to the projector, use a SCART to RCA cable.
Connect the plugs refer to above ex.. For more reference, please consult your
dealer.
SCART connector
(jack)
SCART cable
(plug)
RCA plugs
To input component video signal to the
COMPUTER IN1 or IN2 port of the
projector, use a RCA to D-sub cable or adapter.
For about the pin description of the required cable or adapter, refer to the
descriptions about
COMPUTER IN1 and IN2 port (&3).
RCA plugs
D-sub plug
VCR/DVD player
RCA connectors
