Audiovox PAV-8000D - Manual (Page 8)

7
3. REMOTE CONTROL

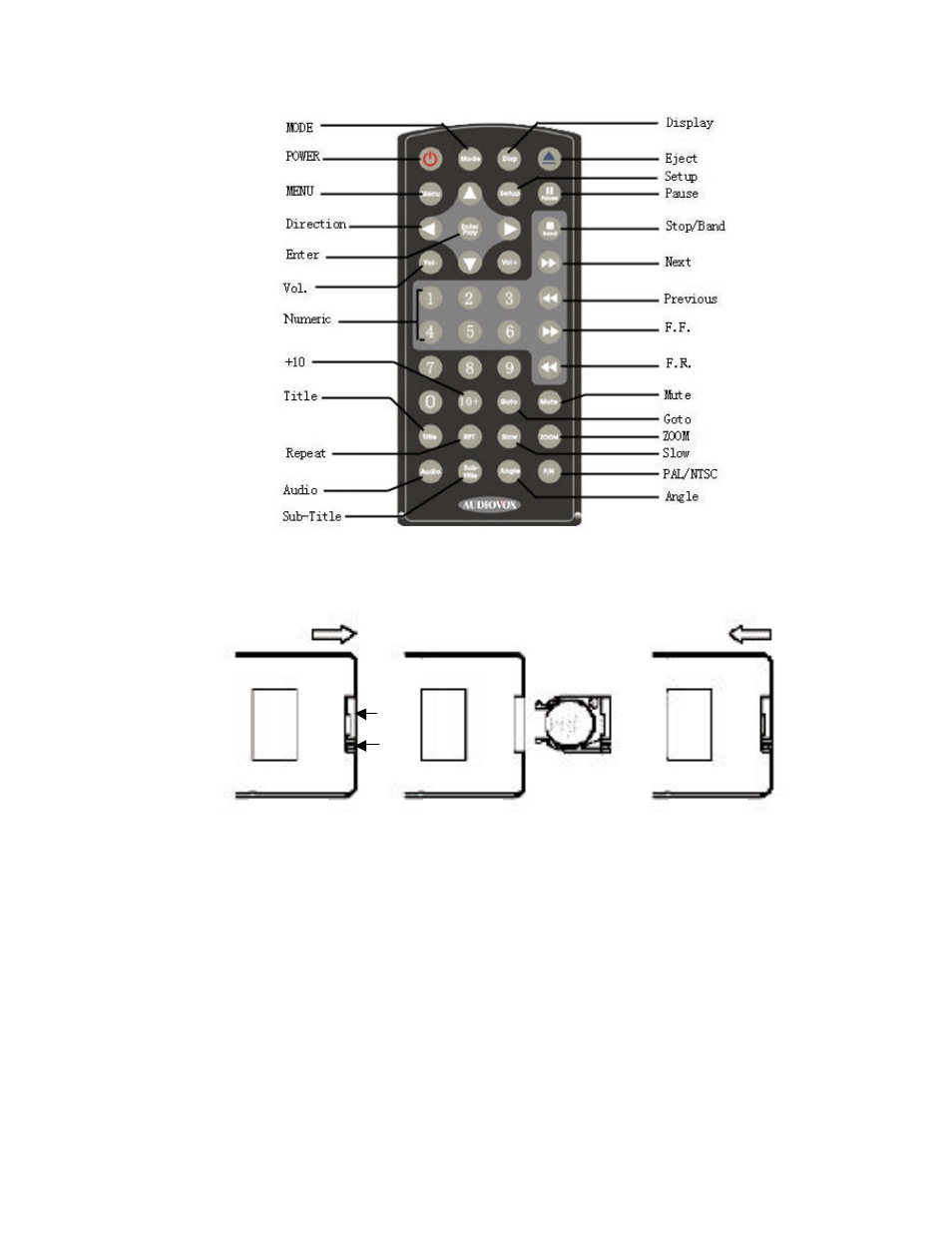

Figure 2. Remote Control
3.1. Remote Control Battery Installation
Figure 3. Remote Control Battery Replacement
To replace the battery in the Remote Control, perform the following procedure
1. Place the Remote Control face down on a flat surface. Hold the Remote Control in place using one hand
and with the other hand insert a fingernail into the grove of the spring catch (A in Step 1), insert thumbnail
into the groove Battery Holder (B in Step 1) and slide out. (see Step #1, Figure 3.)
2. Install one “CR2025” Lithium Battery into the holder. (see Step #2, see Figure 3.)
3. Slide the Battery Holder back into the remote control until it clicks in place (see Step #3, Figure 3.)
NOTE: The Remote Control is shipped without the battery installed. Before attempting to operate the
system using the Remote Control, you must install the battery as described in the procedure above.
A
B
Step #1 Step #2 Step #3
