Horizontal Applications

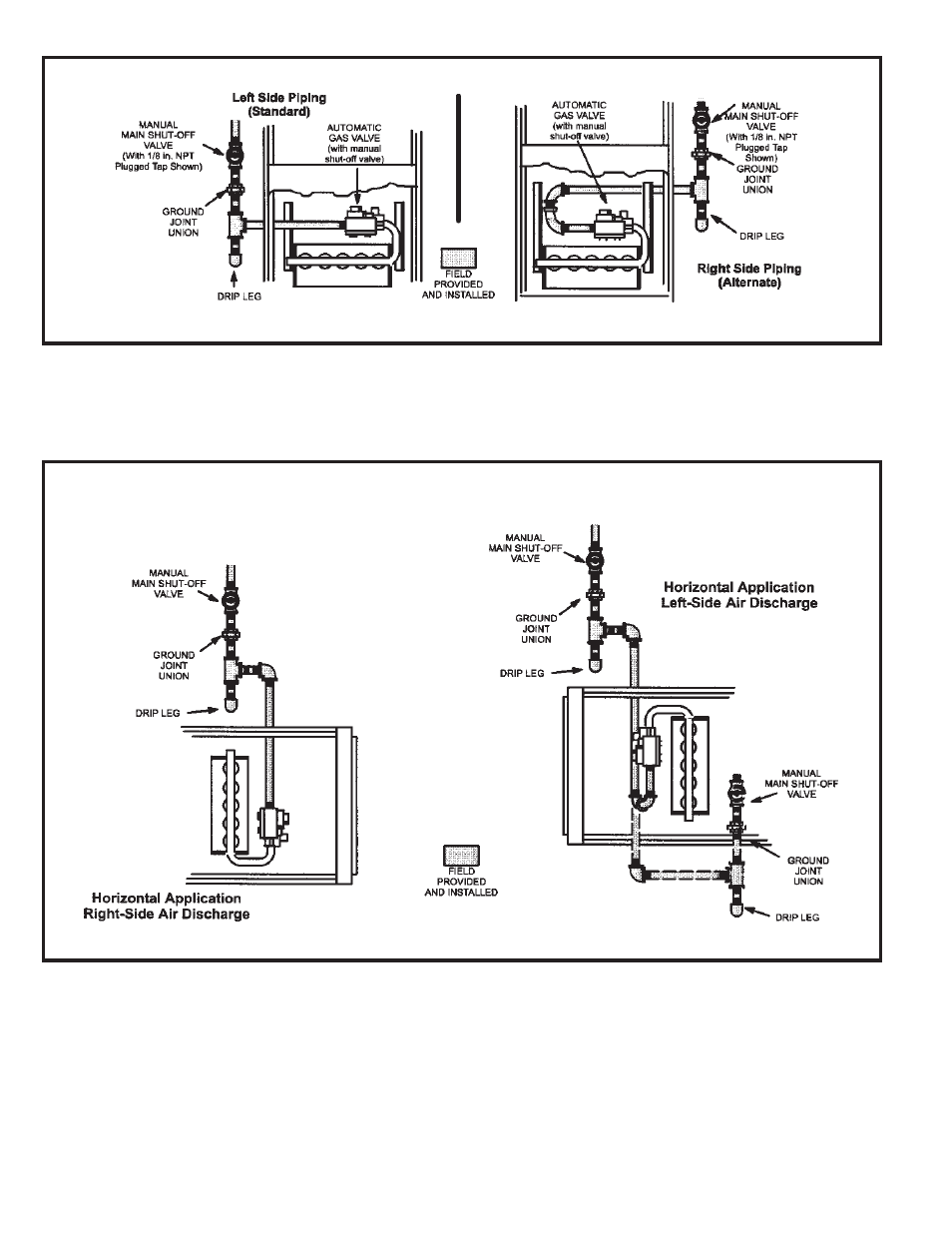

Possible Gas Piping Configurations

NOTE: BLACK IRON PIPE ONLY TO BE ROUTED INSIDE OF CABINET

Figure 27

NOTE: BLACK IRON PIPE ONLY TO BE ROUTED INSIDE OF CABINET

Figure 26
