PAGE 4

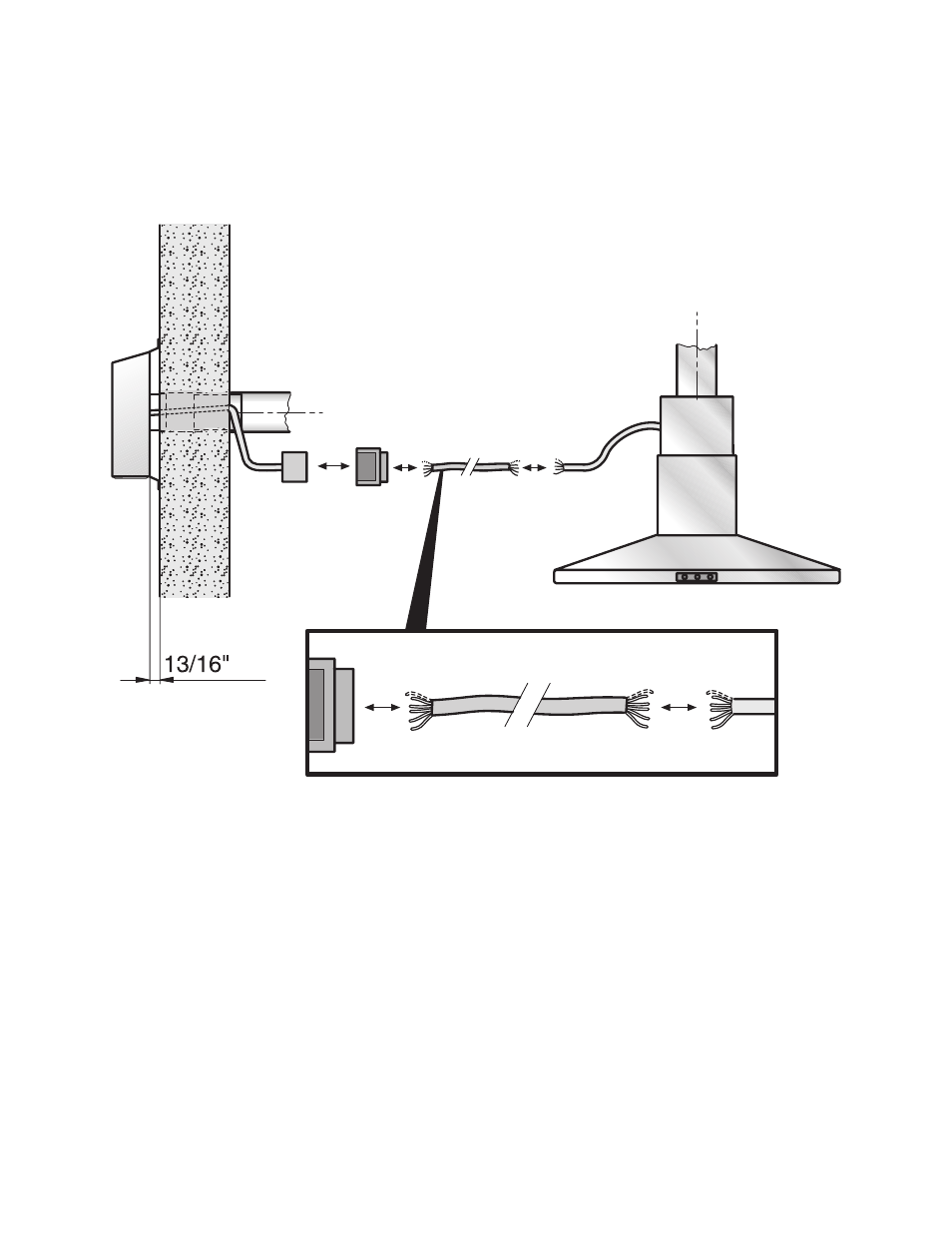

6. Connect the fan to the extractor hood with an extension
cable if required.
Use the added connector.
Use the wire diagramm for connecting.
ṇ
The additional cover on the plug must always be
attached and closed for safety reasons.
ṇ
Not needed wires must be isolated, capped with
wire nuts and stored in a safe position.
Note: The unit must be qualified sealed to the wall, e.g.
screws, pipe connection, wall break, etc.
Note: The unit can also be installed on roof in
combination with an additional accessory. Ask your retailer
or customer service. Tel. no: 800-735-4328
