Your dishwasher comes with either a two-piece or three-
piece toe panel (model dependent) to allow height adjust-
ment.
1. Position the slotted rear toe panel on the dishwasher
irst. Allow it to rest on the loor.
2. Position the mating front toe panel on top of the rear toe
panel allowing the angled edge to rest on the mating
edge of the dishwasher.
3. Drive the two black screws (B) through the holes in the
toe panel to secure. Use the supplied screws to avoid
damaging the dishwasher. See Figure 26.
4. For models with a three-piece toe panel, the rubber
apron removed earlier may now be attached and should
remain behind the outermost toe panel.
5. For models with outer toe panel (3rd piece - L) slide
the brackets (K) provided, into the slots of the toe panel
you just attached.
6. Once you determine the correct position for the brack-
ets, remove the bracket and bend the metal tab. See
Figure 27. This ensures that the toe panel will not
slide in further than you need.
7. Re-insert the brackets.
8. Attach the outer toe panel (L) onto the brackets and drive
the screws provided in place to secure the toe panel en-
suring that the rubber apron is completely hidden behind
the outer toe panel.

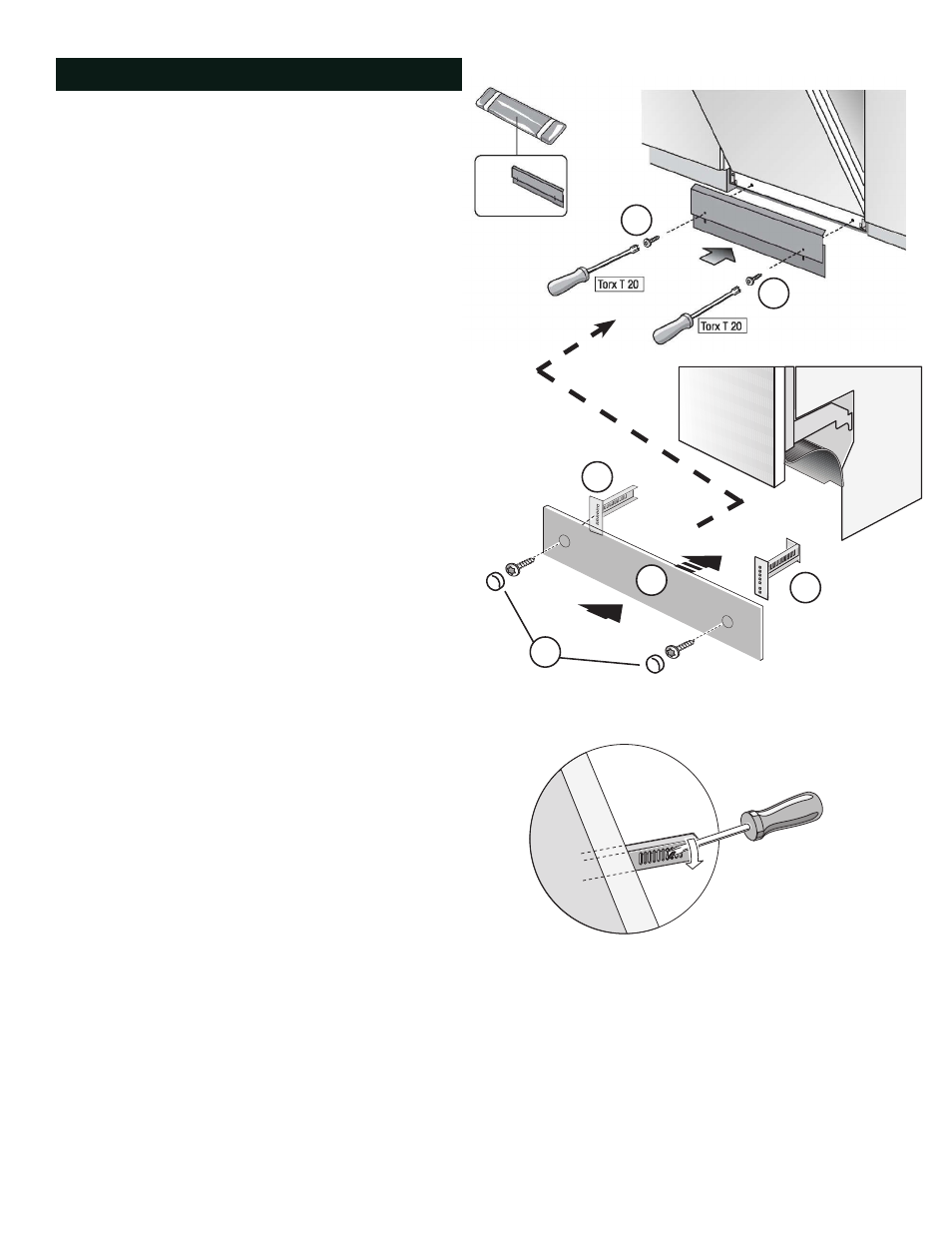

Figure 26
Figure 27
Attaching the Toe Panel
