Page 14

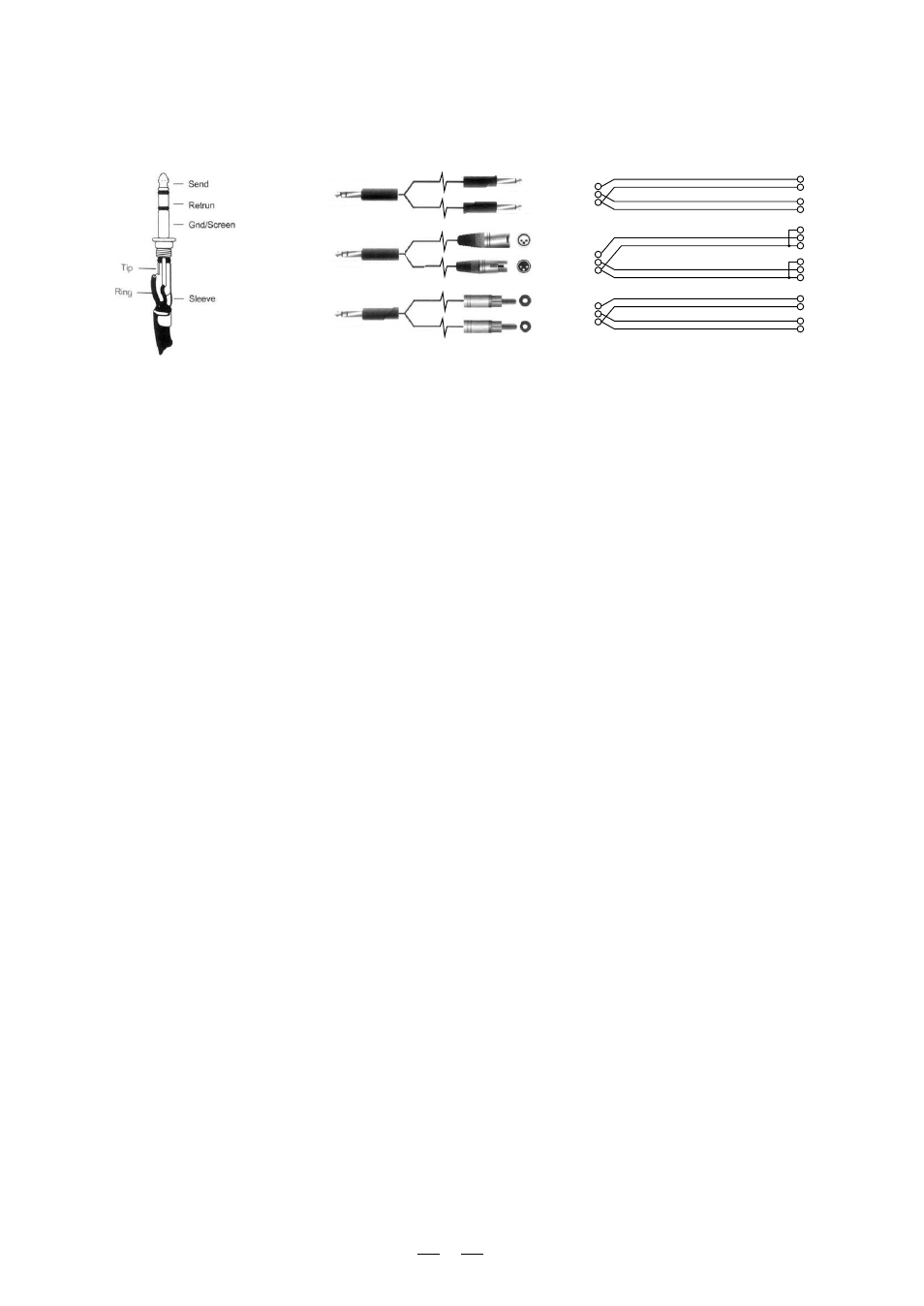

1/4" TRS insert

Tip

Ring

Sleeve

Tip (Send)
Sleeve

Tip (Return)
Sleeve

Tip

Ring

Sleeve

1
2(Send)
3

1
2(Return)
3

Tip

Ring

Sleeve

Centre(Send)
Screen

Centre(Return)
Screen

TIP RING SLEEVE

SLEEVE TIP

Insert Leads

5.3 Rack Mounting

The most secure mounting is on a universal rack shelf available from various rack manufactures or your music

dealer. The BK 2.0 Compressor /Limiter /Gate fits into one standard 19" rack unit of space.

Please allow at least an additional 4" depth for the connectors on the rear panel. Be sure that there is enough air
space around the unit for sufficient ventilation and please do not place the BK 2.0 Compressor /Limiter /Gate on
high temperature devices such as power amplifiers etc. to avoid overheating.

c. Insert Points Connection

In case you are using the main inserts of your mixing console and you have a single jack for SEND and
RETURN, you can use an insert Y cable . Please see following drawing.
