Link in
The link from the transmitter to each receiver module is made using a twisted
pair cable, specified to Category 5 or higher.
When a single receiver is attached to a link cable, the maximum length of that
link cable is 300 metres (1000 feet).

RECEIVER

SKEW GB

SKEW RG

BRIGHT

SHARP

LINK

OUT

101

ADDERLINK

OUT

RECEIVER

TRANSMITTER

Overall maximum link length: 300m

STANDARD LINK

However, if further receivers are connected in cascade to the initial receiver
(using the

LINK OUT

port – AdderLink AV101 modules only), then the overall

length of the link cables used must be reduced. For further information, please
refer to the section

Making cascade connections

NOTE: Where possible, avoid laying the twisted pair link cable(s) alongside
power cables.

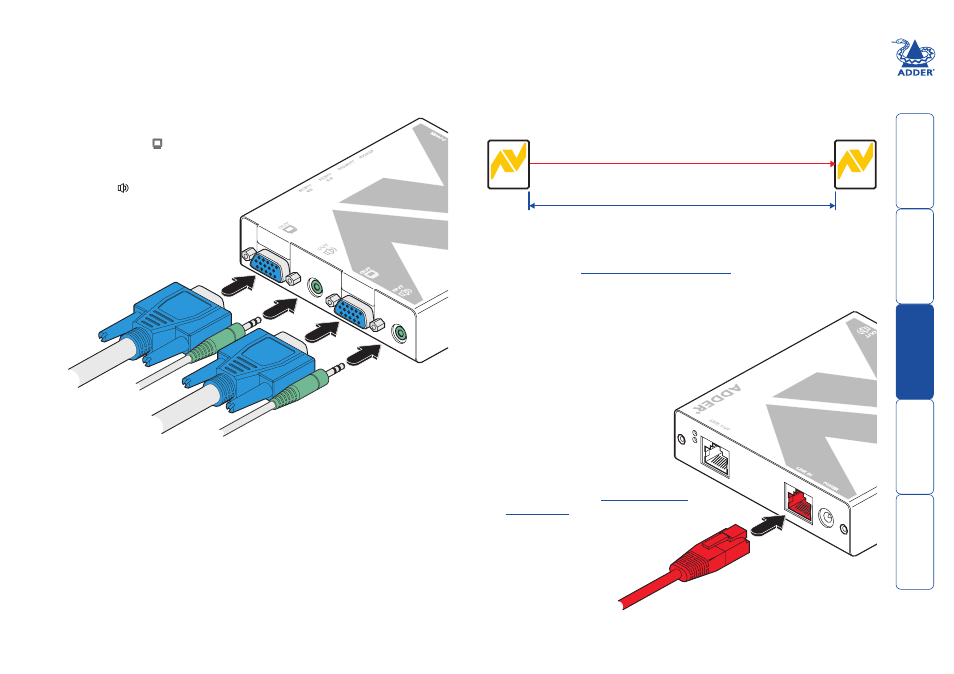

1 Attach the connector of the link cable to the socket labelled

LINK IN

on the AdderLink AV receiver. There should be a

click when the cable is fully inserted and locked in
place.

Note: AV200 transmitters and

receivers must not be connected,
via a CATx link, to AV100,
AV101 or AV104 modules.
Cascade connections to
other transmitter types are
possible, however, using the
video and audio out ports.
For further information, please
refer to the section

Making cascade

connections

Connections at the receiver

To connect displays and speakers
Dual video and audio outputs are provided on the AdderLink AV receiver. Both
sets of ports provide identical signals and their connection procedures are the
same:

1 Attach the video cable from the display module to the

socket labelled

OUT

on the AdderLink AV receiver.

2 Attach the stereo audio cable from the

speakers (or amplifier) to the socket
labelled

OUT

on the AdderLink AV

receiver.

RECEIVER

SKEW

BRIGHT

SHARP

LIN

101

ADDERLINK
