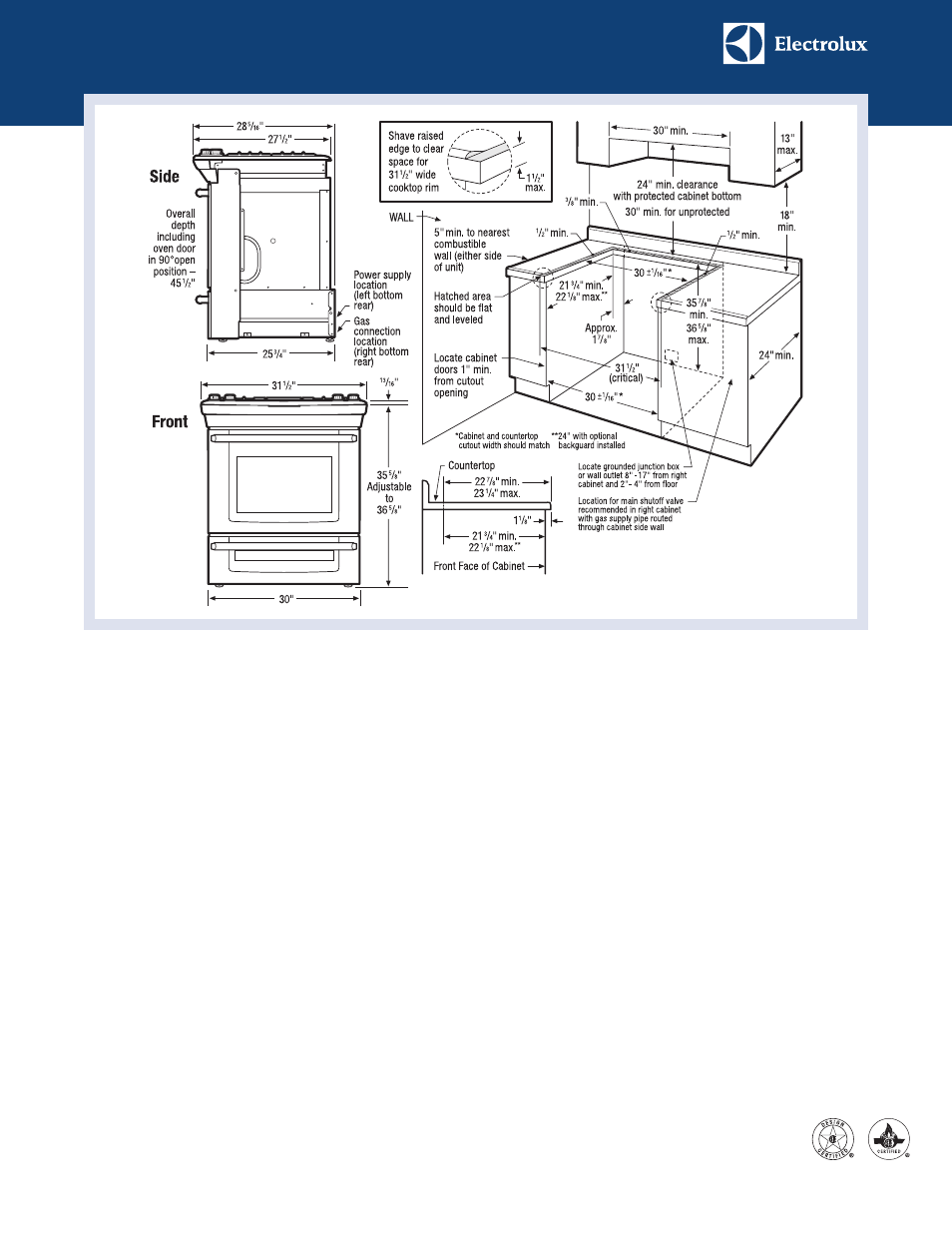

30" Gas Built-In Range Specifications
• Product Weight – 250 Lbs.
• Voltage Rating – 120V / 60 Hz / 15 Amps
• Amps @ 120V = 10 Amps
• Always consult local and national electric and gas codes.
• Make sure wall coverings around range can withstand heat generated
by range.
• Linoleum or any other synthetic floor covering located beneath range,
must be capable of withstanding minimum heat of 90° F above room
temperature without shrinking, warping or discoloring. Insulating pad
or 1/4" thick plywood required between range and a carpeted floor.
• Do not obstruct flow of combustion air at oven vent nor around base
or beneath lower front panel of range. Range requires fresh air for
proper burner combustion.
• Range ships with 3/4" factory regulator.
• LP Gas conversion kit supplied.
• Gas supply piping can be routed through side wall of right cabinet.
Right side cabinet is ideal location for main shutoff valve.
• Countertop MUST be level in all directions and adjustable range
height at least 1/16" greater than tallest cabinet height, to ensure metal
rangetop flange will fit properly on countertop edge.
• When installing optional Backguard Kit, cutout depth of 21-3/4"
minimum / 22-1/8" maximum needs increased to 24".
• Overhead cabinetry should not exceed a 13" maximum depth.
• Absolute minimum horizontal distance between overhead cabinets installed
to either side of appliance must be no less than maximum width of appliance.
• Allow 24" minimum clearance between rangetop and bottom of cabinet
when bottom of wood or metal cabinet is protected by not less than 1/4"
flame-retardant millboard covered with not less than No. 28 MSG sheet
steel, 0.015" stainless steel, 0.024" aluminum or 0.020" copper. Allow 30"
minimum clearance when cabinet is unprotected.
• Allow 5" minimum clearance from edge of rangetop to nearest combustible
wall on either side of unit.
• To reduce risk of fire when using overhead cabinetry, install range hood
that projects horizontally a recommended minimum of 5" beyond bottom
of cabinets.
• When installing range into existing cutout depth greater than 22-1/8",
optional 2" Rear Filler Kit available.
Countertop Preparation
For detailed preparation instructions, refer to installation guide on the web.
• Flat square-finish (flat) countertop requires no preparation since rangetop
flange lays directly on countertop edge.
• Formed front-edged countertops require front molded edge to be shaved
flat 3/4" from each front corner of opening.
• Tile countertops may need cut back 3/4" from each front corner of
opening and / or rounded edge flattened.
• For existing cutout width greater than 30-1/16" reduce the 3/4" overlap
dimension or for cutout width of 29", replace actual side trim panels with
smaller side trim panels, available with optional Side Trim Kit (refer to
detailed kit installation instructions).
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
Optional Accessories
• Wok Ring – (PN # 318254307).
• Simmer Plate – (PN # 318254206).
• 2" Rear Filler Kit: Stainless – (PN # 903113-901S).
• Side Panel Kit: Stainless – (PN # 903102-901S).
• Backguard Kit: Stainless – (PN # 903111-901S).
• Side Trim Kit: Stainless – (PN # 903110-901S).
Gas Built-In Range
EW30GS75KS
