Electrolux EI30EF35JS - Manual (Page 2)

High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.

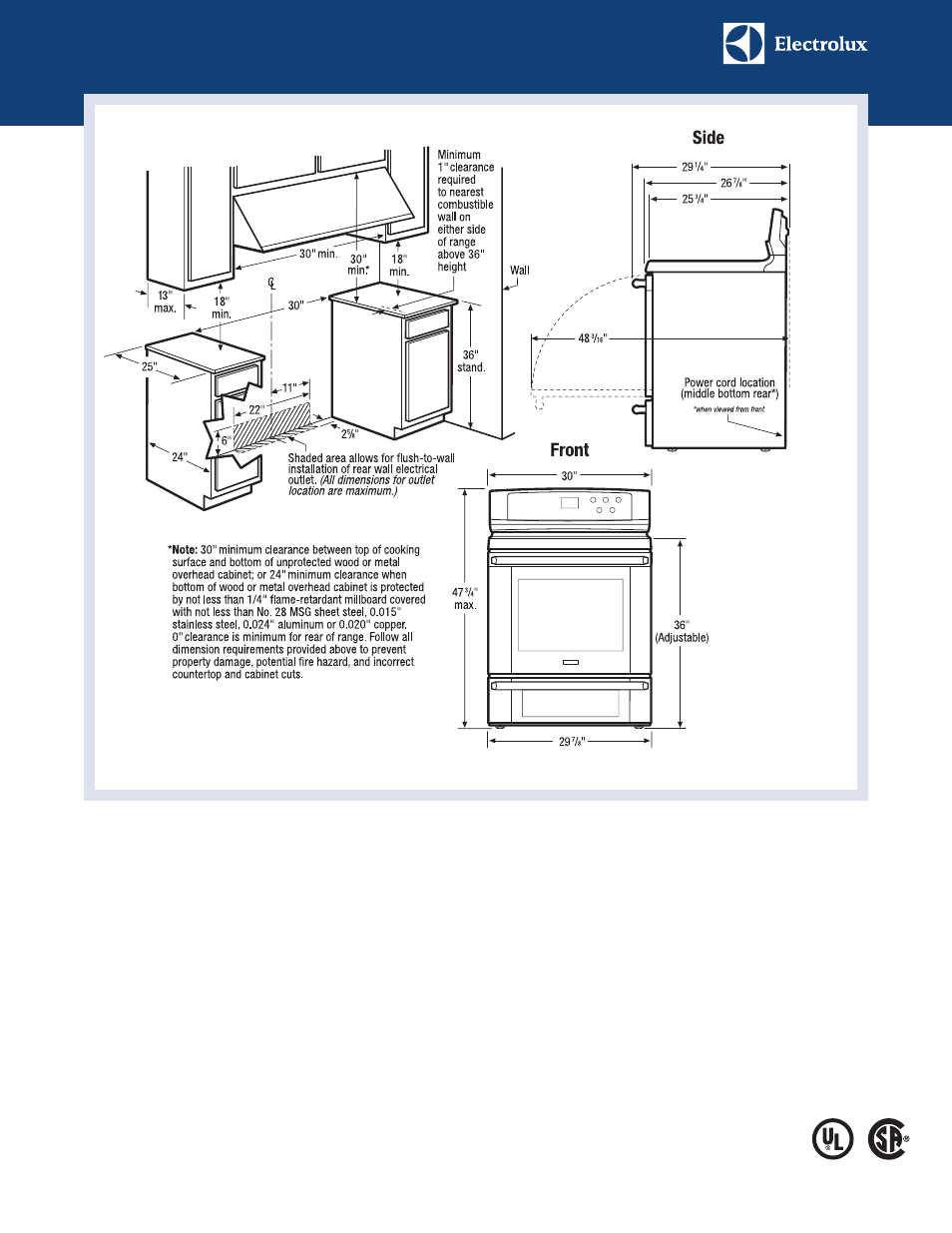

Front
36"
(Adjustable)
29 7 /
8
"
47 3 /
4
"
max.
30"
30"min.
13"
max.
25"
24"
Minimum
1"clearance
required
to nearest
combustible
wall on
either side
of range
above 36"
height
30"
6"
2 5 /
8
"
Shaded area allows for flush-to-wall
installation of rear wall electrical
outlet. (All dimensions for outlet
location are maximum.)
CL
22"
11"
36"
stand.
30"
min.*
* Note: 30"minimum clearance between top of cooking
surface and bottom of unprotected wood or metal
overhead cabinet; or 24"minimum clearance when
bottom of wood or metal overhead cabinet is protected
by not less than 1/4" flame-retardant millboard covered
with not less than No. 28 MSG sheet steel, 0.015"
stainless steel, 0.024" aluminum or 0.020" copper.
0"clearance is minimum for rear of range. Follow all
dimension requirements provided above to prevent
property damage, potential fire hazard, and incorrect
countertop and cabinet cuts.
Wall
18"
min.
18"
min.
29 1 /
4
"
28 7 /
8
"
Side
48 3 /
16
"
25 3 /
4
"
Power cord location
(middle bottom rear*)
*when viewed from front
Electrolux Major Appliances, N.A.
USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-877-4electrolux (1-877-435-3287) • electroluxappliances.com
CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • electroluxappliances.ca
EI30EF35J 02/13 © 2013 Electrolux Home Products, Inc.
Electric Freestanding Range
EI30EF35J S
30" Electric Freestanding Range Specifications
• Product Weight – 240 Lbs.
• Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz,
fused on both sides of line with ground.
• Connected Load (kW Rating) @ 240 / 208 Volts = 15.0 / 11.5 kW
• Amps @ 240 / 208 Volts = 40 Amps
• Recommended Circuit Breaker – 40 Amps
• Always consult local and national electric codes.
• Make sure wall coverings around range can withstand heat generated
by range.
• Floor beneath range MUST be solid and level.
• Overhead cabinetry should not exceed a 13" maximum depth.
• Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than maximum
width of appliance.
• Range can be installed flush to wall with 0" minimum rear clearance.
• Minimum 1" clearance required from edge of rangetop to nearest
combustible wall on either side of range above 36" height.
• Allow 30" minimum clearance between top of cooking surface and
bottom of unprotected wood or metal overhead cabinet; or 24" minimum
clearance when bottom of wood or metal overhead cabinet is protected
by not less than 1/4" flame retardant millboard covered with not less
than No. 28 MSG sheet steel, 0.015" stainless steel, 0.024" aluminum or
0.020" copper.
• To reduce risk of fire when using overhead cabinetry, install range hood
that projects horizontally a recommended minimum of 5" beyond bottom
of cabinets.
• Follow all dimension requirements provided to prevent property damage,
potential fire hazard, and incorrect countertop and cabinet cuts.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
Optional Accessories
• Grill / Griddle – (PN # 318251611).
Electric Freestanding Ranges
EI30EF35J
