Installation Procedures
Install the supplied sealant backing rod material around entire circumference of the
mounting ring/enclosure mating surfaces as shown in Figure 3-40.

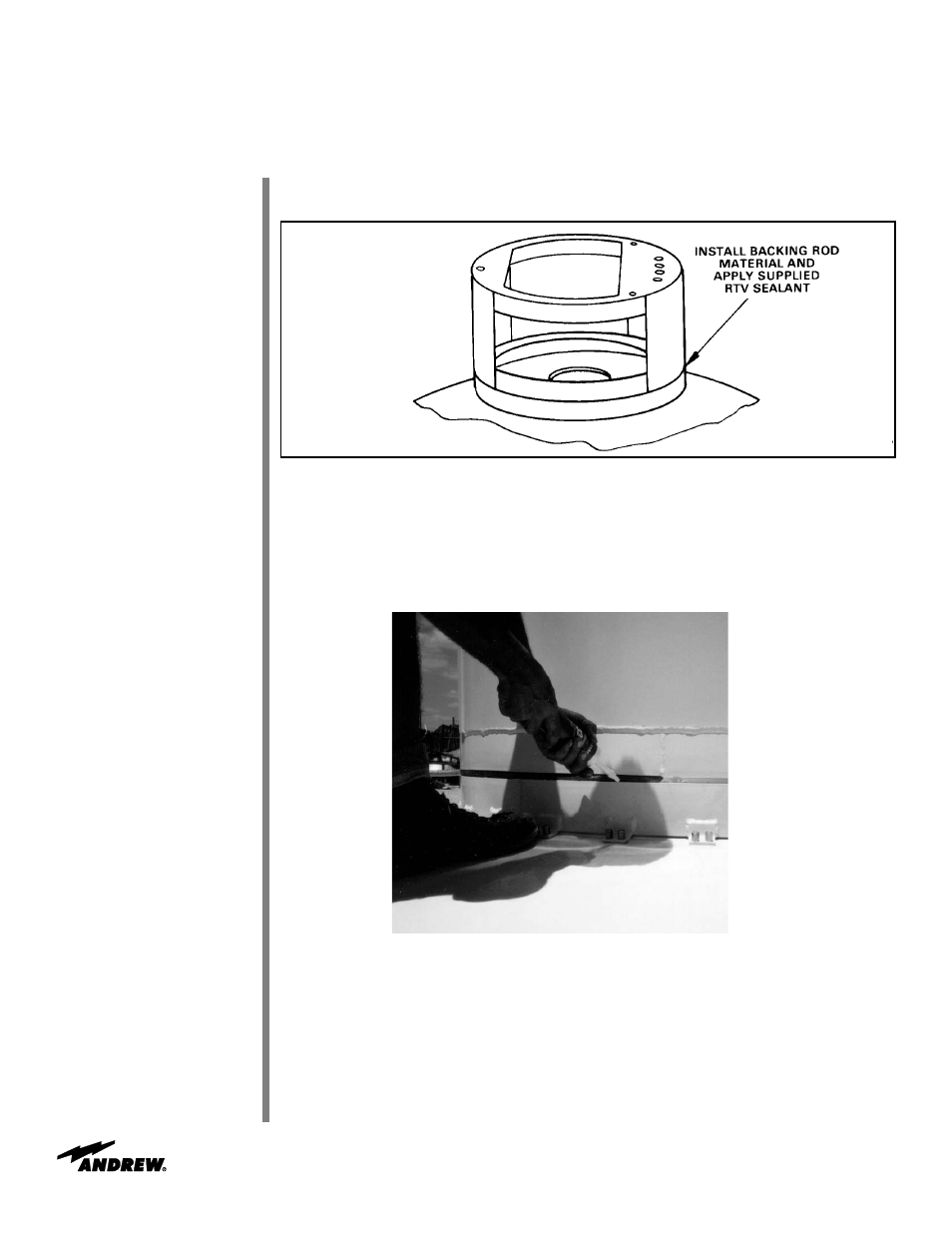

Figure 3-40: Backing Rod Assembly
Securely tighten the enclosure mounting hardware using the A-325 tensioning proce-
dure.
Apply the supplied RTV sealant around the outer perimeter of the reflector-mounting
ring/enclosure assembly junction as shown in Figure 3-41.
Figure 3-41: RTV Sealant
You have now completed the assembly of the enclosure and have mounted the enclo-
sure to the reflector. Proceed to the next page for instructions on mounting the reflector
to the ground mount assembly.
