5 Assembling the Speakers

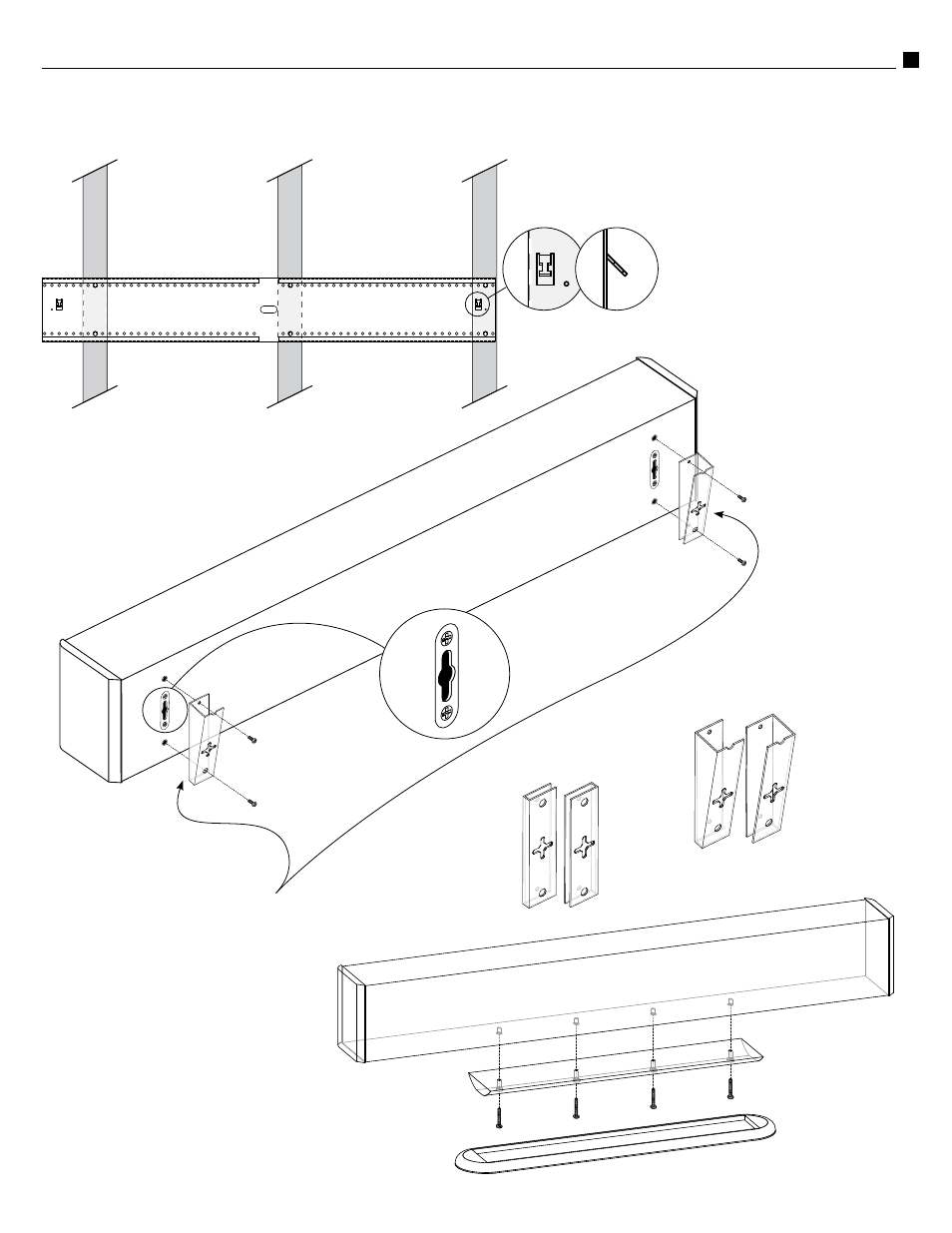

Figure 7
Straight Bracket
Figure 8
Angle Bracket
Double Keyhole for
flush mounting
Mount the brackets to the
speaker with the included
short machine screws
Make sure the closed side
of the brackets are facing
the ends of the speaker
Assembling the Speaker
Figure 9
Rocker installation
Mount the rocker to the
bottom of the speaker
with the included short
machine screws
Figure 6
Straight/Angle
Bracket installation
STUD STUD STUD
Figure 5
Stud Bracket installation
Screw stud bracket
through drywall into stud
through aligning holes on
bracket as shown.
Install so prong points out and DOWN. Hang speaker on the
prong by inserting prong through the keyholes directly on
rear of speaker or on the Straight/Angle Brackets.
STUD STUD STUD
Close
up view
Side
view
