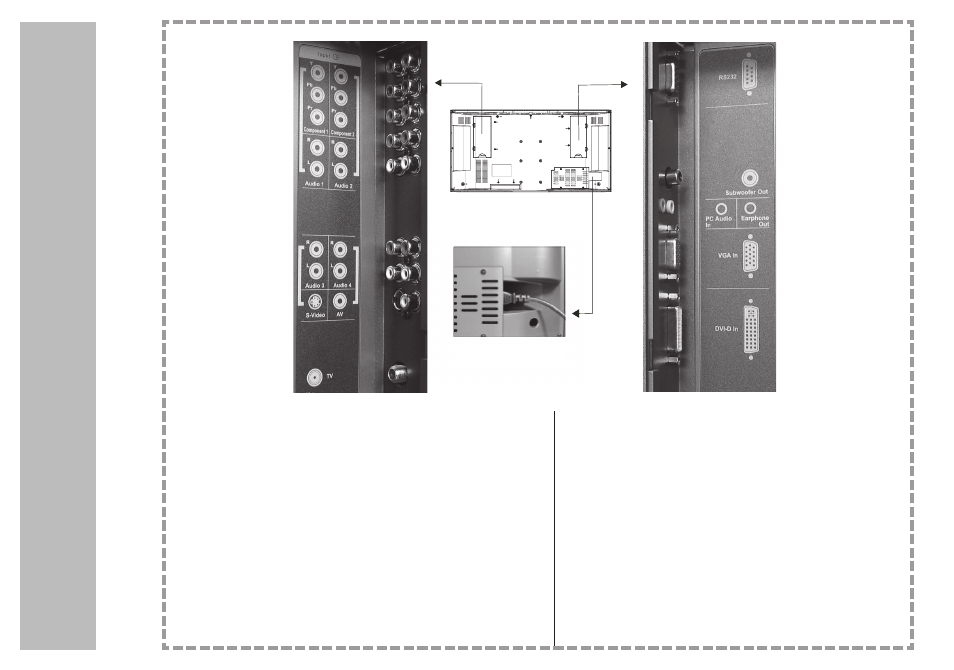

YPbPr1 and Audio 1 & YPbPr2 and Audio 2
When connecting to YPbPr(R/L), you can use YPbPr component video
sources such as a progressive DVD player, HDTV decoder or satellite
receiver to obtain a picture with maximum resolution. For audio sound
connect red and white audio cables.
S-Video / Audio3 Input
Connects to a DVD, set top box, or VCR when using S-Video (Y/C).
For audio sound connect red and white audio cables.
A/V / Audio4 Input
Connects to a VCR or DVD player when using Composite Audio/Video
connections. For audio sound connect red and white audio cables.
TV Input
Connection for RF/antenna cable source. The AVL 2778 features a
125 channel cable ready tuner. For reception of high definition signals
you will need an optional HDTV cable, satellite, or HDTV set top box.
RS232 (Reserved for Service Technicians only)
Subwoofer Output
Outputs a subwoofer signal.
PC Audio Input
For use in VGA or DVI modes only. Use this 3.5mm mini input jack
to connect 2 channel audio sound from your CATV or HDTV set-top
box audio outputs to your LCD TV. (The use of an optional 3.5mm
stereo mini-plug to two RCA connectors is required)
Earphone Output
VGA Input
When connecting the LCD TV to a personal computer.
DVI
Use when connecting to a satellite or cable set top box that incopo-
rates a DVI output.
B
ac
k
Pa
ne
l
Power Cord Input
