8
Pin Signal Names Pin Signal Names
1 USB Power 1 2 USB Power 2
3 Negative Signal 1 4 Negative Signal 2
5 Positive Signal 1 6 Positive Signal 2
7 Ground 1 8 Ground 2
9 Key (No Connection) 10 Empty Pin
Pin
Signal Names
(HDA)
Pin
Signal Names
(AC’97)
1 MIC2 L 1 MIC In
2 AGND 2 GND
3 MIC2 R 3 MIC Power
4 AVCC 4 NC
5 FRO-R 5 Line Out (R)
6 MIC2_JD 6 Line Out (R)
7 F_IO_SEN 7 NC
8 Key (no pin) 8 Key (no pin)
9 FRO-L 9 Line Out (L)
10 LINE2_JD 10 Line Out (L)
C
ONNECTING THE
F
RONT
I/O P
ORTS
3.1 USB 2.0

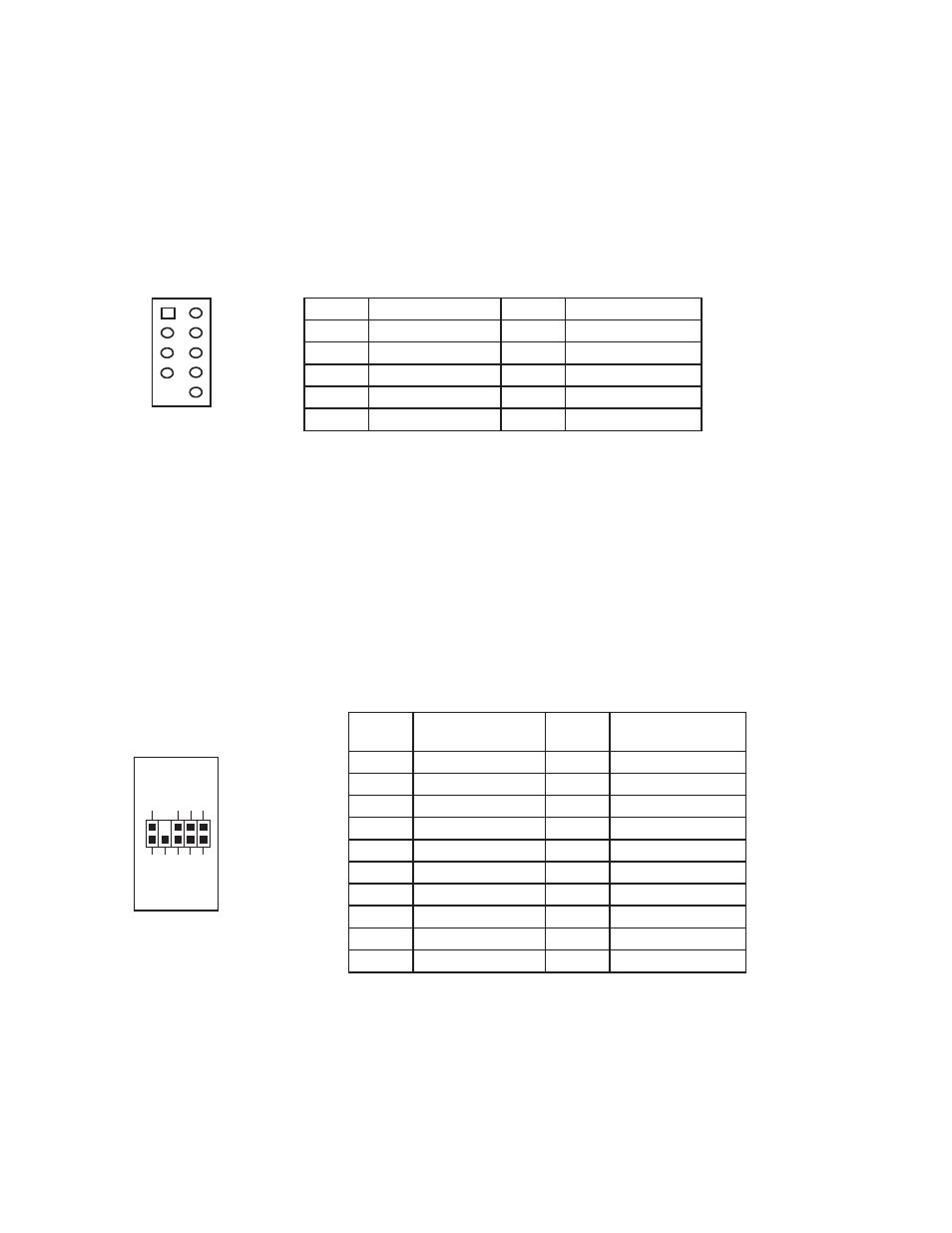

Connect the front I/O panel USB cable to the USB header pin on your motherboard. Check
the motherboard manual to ensure that it matches the table below:
3.2 E SATA
You will find a SATA connector on a cable attached to the front ports. This internal SATA
connector is designed to connect to a standard SATA connector on your motherboard. This
will allow high-speed external hard disk enclosures such as the Antec MX-1 to run at the
same speeds as internally installed hard disks.
3.3 AC’97 / HD A UDIO P ORTS
There is an Intel® standard 10-pin AC’97 connector and an Intel® 10-pin HDA (High
Definition Audio) connector linked to the front panel of the case.
10 6 4 2
9 7 5 3 1
You can connect either the AC’97 or the HDA connector, depending on your motherboard.
Locate the internal audio connectors from your motherboard or sound card and connect
the corresponding audio cable. Consult your motherboard or sound card manual for the
pin-out positions. Even if your system supports both standards, only use one connector.
1 2
9 10
