27
-EN

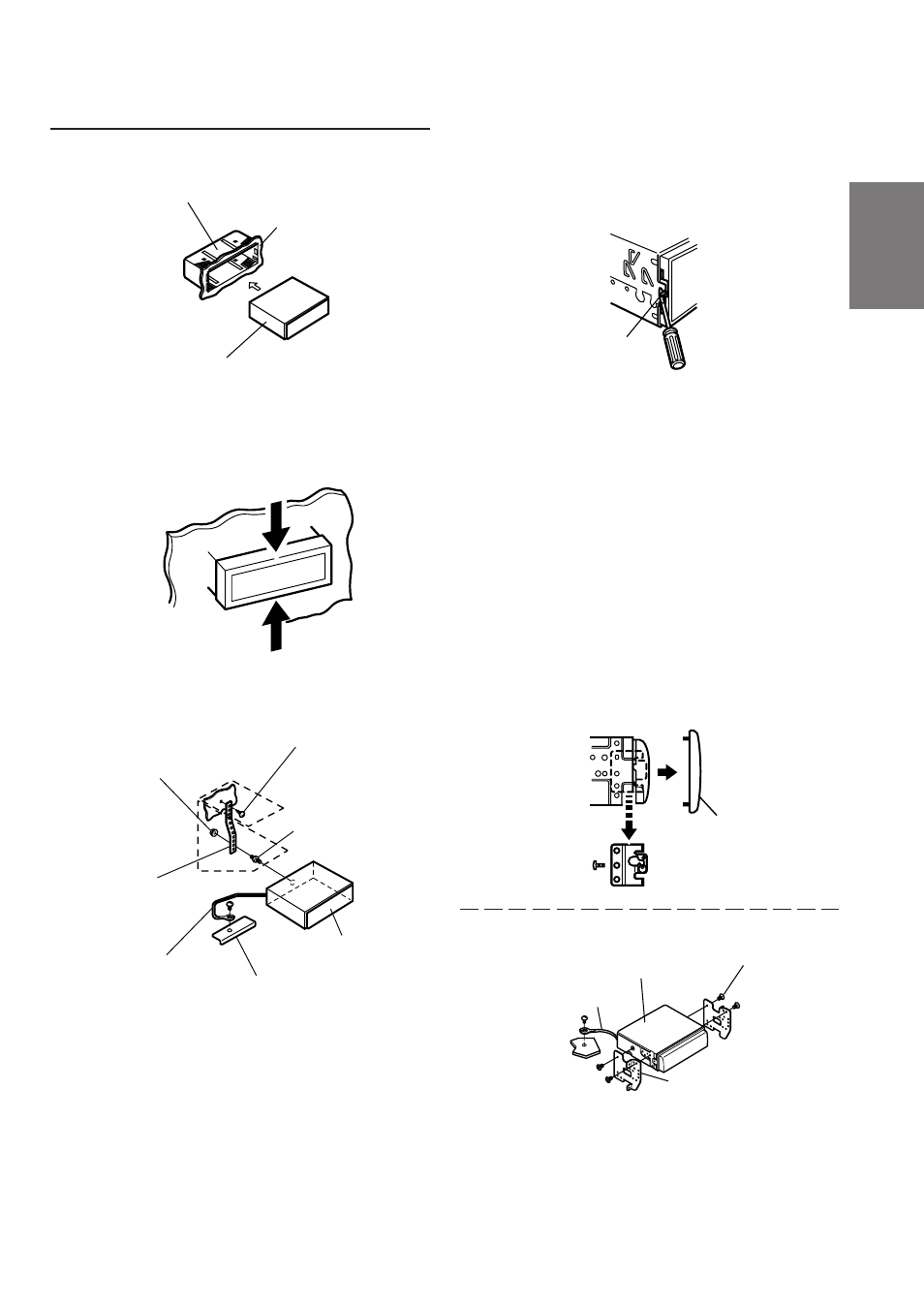

Installation
1
Slide mounting sleeve from main unit (see "Removal"
on this page).
Slide the mounting sleeve into the dashboard.
2
Reinforce the head unit with the metal mounting
strap (not supplied). Secure the ground lead of the
unit to a clean metal spot using a screw (
∗
) already
attached to the vehicle's chassis.
NOTE
For the screw marked ** , use an appropriate screw for
the chosen mounting location.
Connect each input lead coming from an amplifier or
equalizer to the corresponding output lead coming
from the left rear of the CDA-7969/CDA-7867.
Connect all other leads of the CDA-7969/CDA-7867
according to details described in the
CONNECTlONS section.
Slide the CDA-7969/CDA-7867 into the dashboard.
When the unit is in place, make sure the locking pins
are fully seated in the down position. This can be
done by pressing firmly in on the unit while pushing
the locking pin down with a small screwdriver. This
ensures that the unit is properly locked and will not
accidentally come out from the dashboard.
Removal
1 Use a small screwdriver (or similar tool) to push
the locking pins to the "up" position (see above
drawing). As each pin is unlocked, gently pull out
on the unit to make sure it does not re-lock before
unlocking the second pin.
2 Pull the unit out, keeping it unlocked as you do so.
3
Lock Pin
Mounting Sleeve
(Included)
Dashboard
CDA-7969/CDA-7867
Face Plate
Mounting Bracket
Ground Lead
Screws (M5
×
8)
(Included)
NOTE
Secure the ground lead of the unit to a clean metal spot
using a screw (
∗
) already attached to the vehicle's
chassis.
∗
CDA-7969/
CDA-7867
No Pressure Here
No Pressure Here
Metal
Mounting
Strap
Chassis
Screw
Hex Nut (M5)
Bolt Stud
Ground Lead
∗∗
∗
CDA-7969/
CDA-7867
