3
Maintenance:
The filter media in your air cleaner must be changed
periodically. The frequency of filter replacement is best
determined by visual examination. However, a bi-annual
replacement of the filter is strongly recommended.
Replacement filters can be obtained through your
installing contractor or local dealer.
Steps for replacing pleated filter:
1. Open the access door by lifting up on the handle
and pulling the bottom of the door toward you.
Then slide the top of door down, removing the door
completely.
2. Tilt used filter to allow it to be removed through
door opening. Pull out and discard.
3. Slide new filter into cabinet with “airflow label
pointing in the direction of the airflow. Be sure to
seat new filter into top and bottom brackets to
assure a good seal.
4. Replace access door.
Note: a gasket is provided to seal between the opening on
the side of the filtration cabinet and the side of the air
handler.
Air Conditioning:
The air cleaner should be installed upstream of the cooling
coil. This will keep the coil clean and reduce air
conditioning coil maintenance. Improved cooling efficiency
is the result, which directly affects energy costs. A clean
coil will reduce utility costs. Failure to replace media can
cause damage to the cooling system.

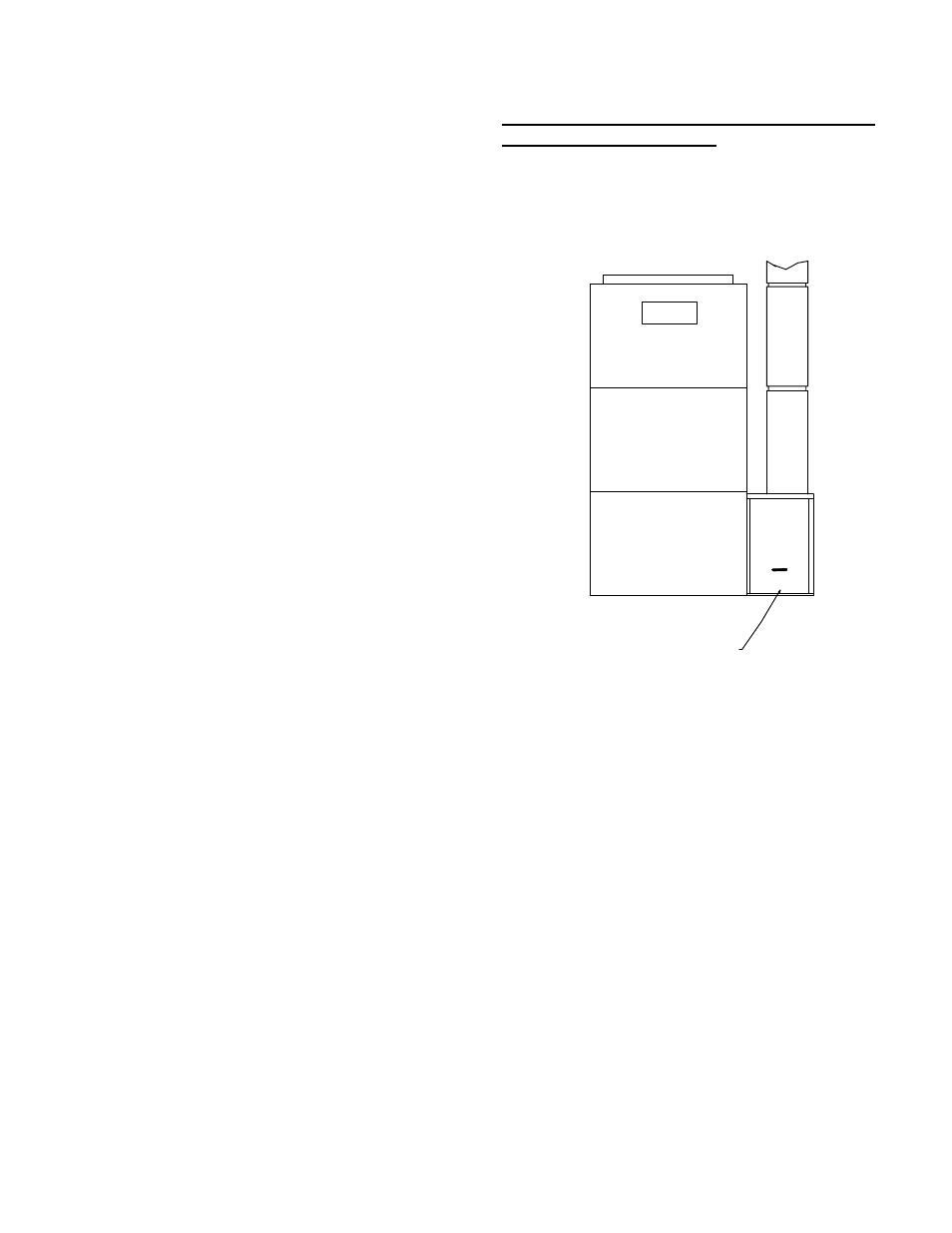

Typical installation of an Ultravation Right
Angle Media Air Cleaner
RETURN
AIR
DUCT
RIGHT ANGLE
MEDIA AIR CLEANER
