DC-OH-0230
Single UV lamp
Installation
NOTICE: When installing the M-Series
UV system with a single lamp, the
Single Lamp Adapter Module
(supplied) must be installed.
Plug the adapter into the unused lamp
receptacle as shown.

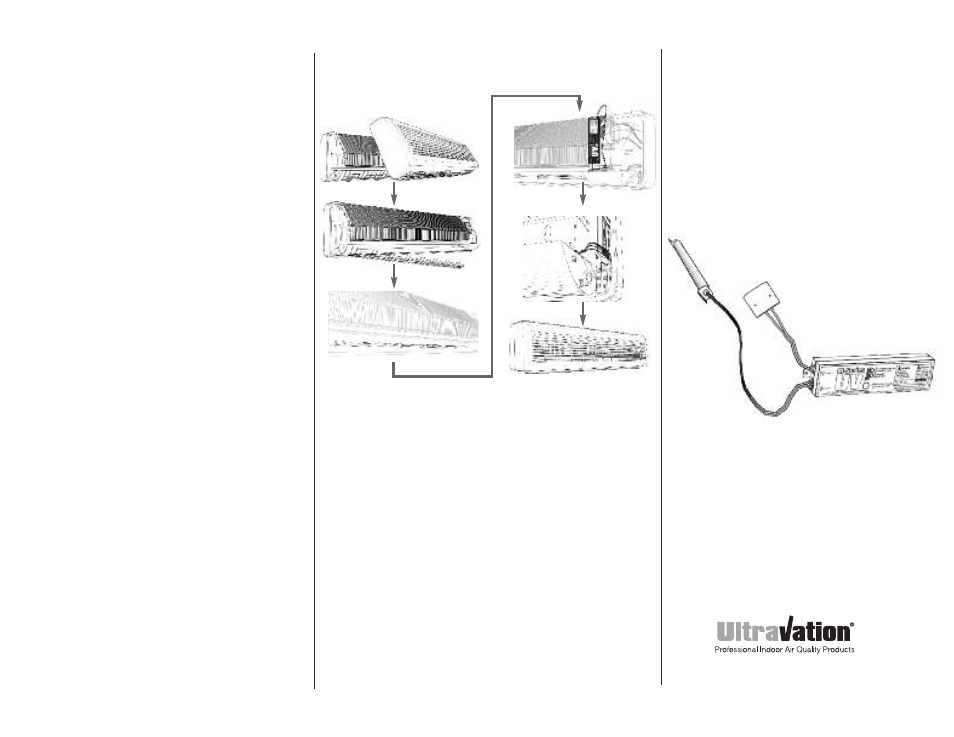

Easy Installation
We recommend that this unit be installed
and maintained by a trained HVAC
professional technician.
1. Disconnect power (breaker) to air
conditioner. Remove front cover of
mini-split wall unit.
2. Find a suitable place for power supply
inside the mini-split wall unit on the side or
back and out of the air stream as much as
possible. Connect power cable to an
appropriate 120/240 VAC power source.
Fasten the power supply in place with two
self-tapping screws (supplied).
3. Select a location for UV lamp module(s) that
maximizes UV exposure to cooling coil and
other areas where condensation will occur
or collect.
4. Fasten the lamps with the provided
adhesive strips or screws (supplied).**
5. Adjust / position lamps and shields to
prevent direct viewing of UV lamp by the
unprotected eye during operation and to
prevent exposure of sensitive
components.
6. Route UV lamp wires and connect to power
supply, securing them from sharp edges,
blower fan, and component
electrical cover.
7. Place mini-split wall unit cover back on the
wall unit. Restore power.
8. LED status should be green and glow of UV
light should be visible.
Caution: DO NOT look directly at a UV
lamp in operation.
NOTE: Installation
must be completed
in accordance with
all state and local
electrical and
building codes.
**When installing new
lamps, ensure that the
lamp glass is free from
any fingerprints or
debris, as this may alter
the path of the UV
energy. Use rubbing
alcohol and a dry cloth
to remove any surface
contamination.
