Hardware Installation
Step1:
Insert the card onto an empty PCI slot. Connect the Audio/Video
Cable to the connector in the same color.
Note: You need to power down the PC before you insert the card.
Step 2:
Turn on your PC and start Windows.
Step 3:
Insert the included Software CD into CD-ROM.
Step 4:
Refer the section Driver Installation on page 18 to install driver.
Step 5:
After driver is installed, restart your PC.

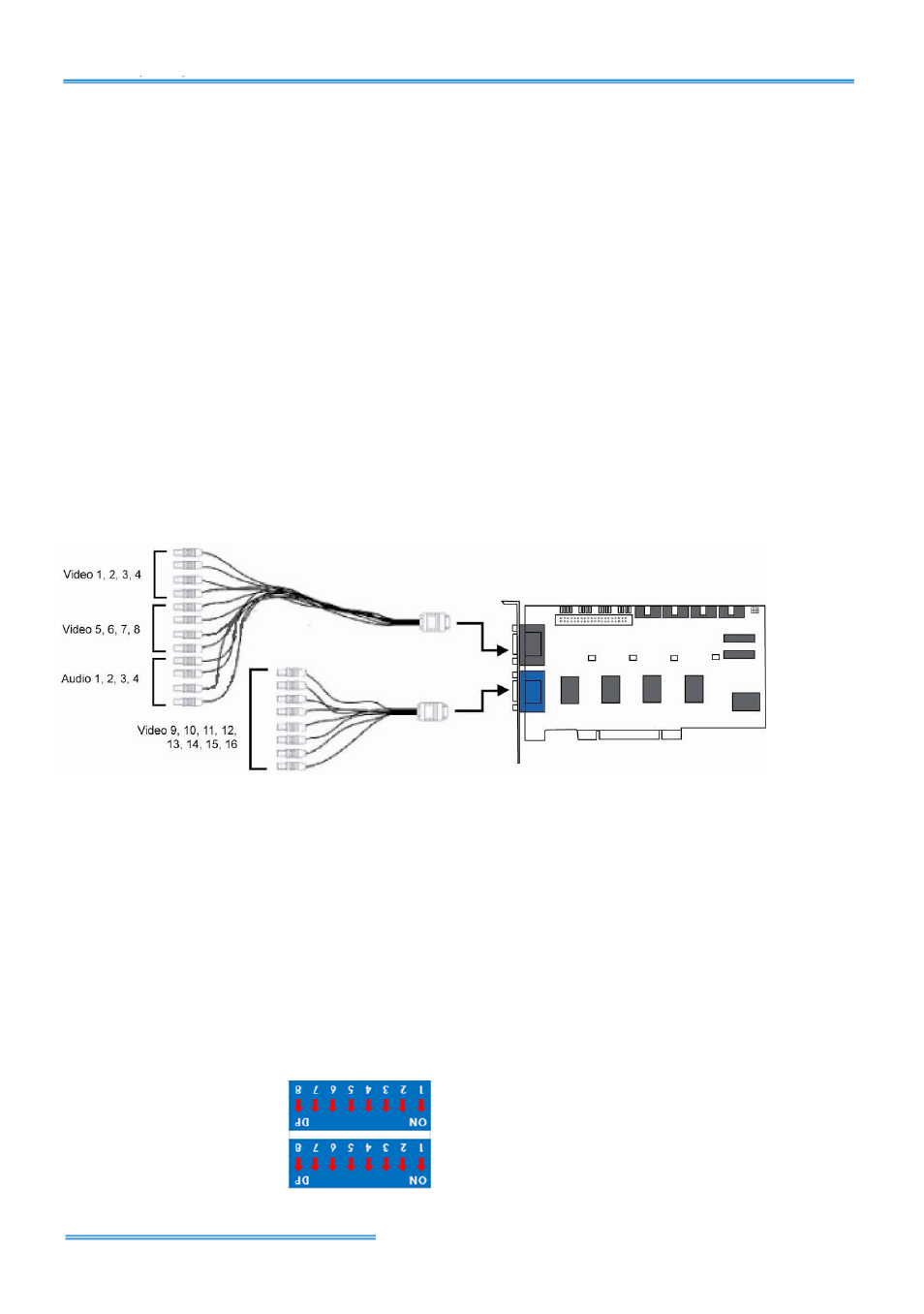

Connect the Audio/Video Cable
Note: for G3-3000 series, audio channels are located at 1, 2, 3, 4.
Optional I/O Card:
refer to the figures on the following pages.
Step 1:
Fix the IO card onto your PC.
Step 2:
Connect the Capture Card and the I/O Card with an included
ribbon cable (2.54mm IDC cable).
Note: The default configuration of blue slide switch on I/O Card as below.
