Altinex Cat-5 Computer Video Receiver DA1921SX - Manual (Page 6)

DISTRIBUTION AMPLIFIERS
400-0155-002 5
5
4.1 INPUT
The input connector of the DA1921SX is an RJ-45
connector, which connects the DA1921SX to the
DA1920SX using a CAT-5 cable.
PIN No.
Input Signals
RJ-45 Connector
1 R-
2 R+
3 G-
4 B-
5 B+
6 G+
7 HOR-
8 HOR+
Table 4. DA1921SX Input Signals
4.2 OUTPUTS
The DA1921SX has two outputs with 15-pin HD
female connectors. It allows the distribution of
video signals to two monitors. With equalization,
the DA1921SX
receives signals through a
CAT-5 cable from as far as 500 feet away.
PIN No.
Output Signals
15-pin HD Female
1 Red
2 Green
3 Blue
4 ID Bit 4
5 Ground
6 Ground
7 Ground
8 Ground
9 +5V
10 Ground
11 Ground
12 No Connection
13 Horizontal Sync
14 Vertical Sync
15 No Connection
Table 5. DA1921SX Output Signals

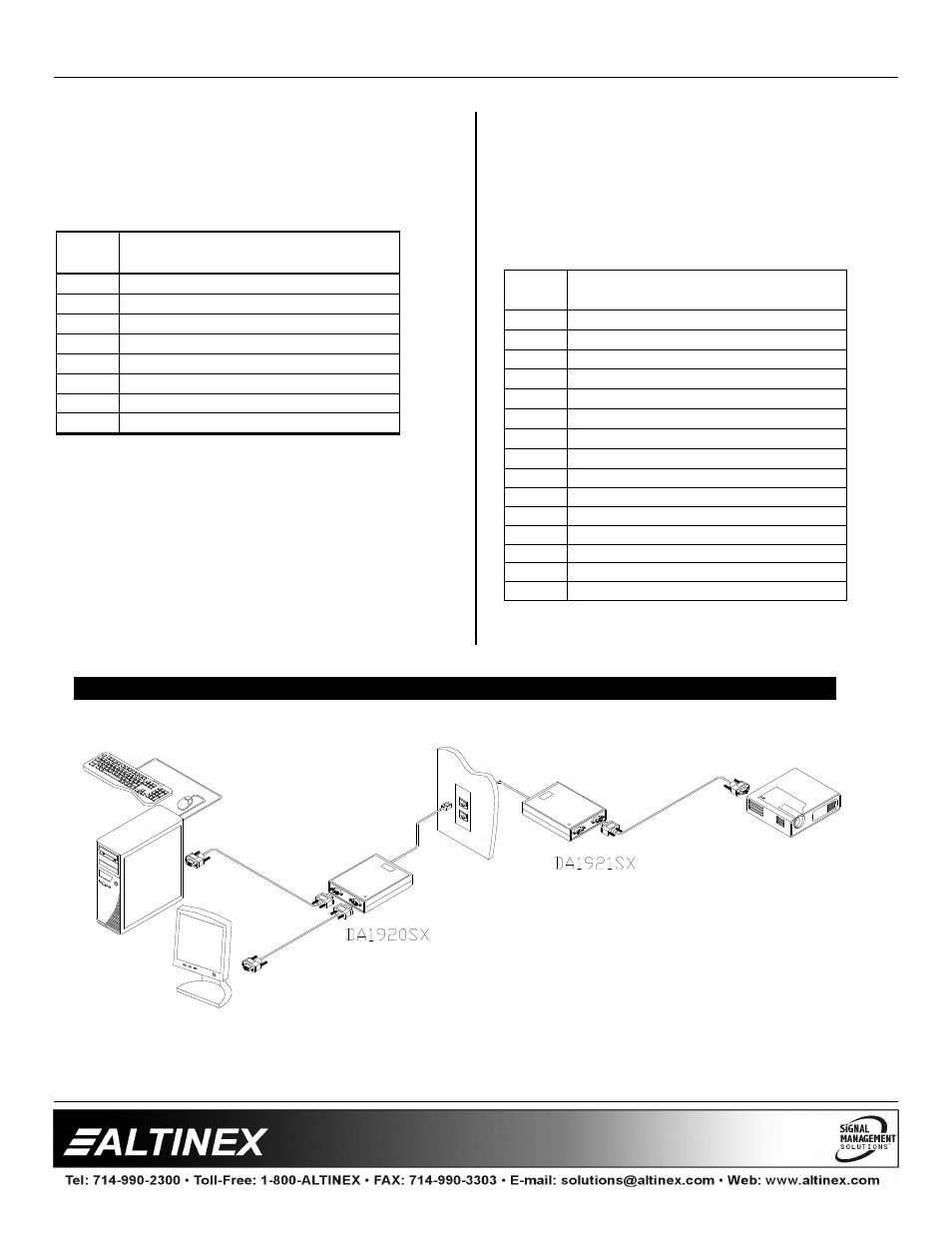

APPLICATION DIAGRAM 5
