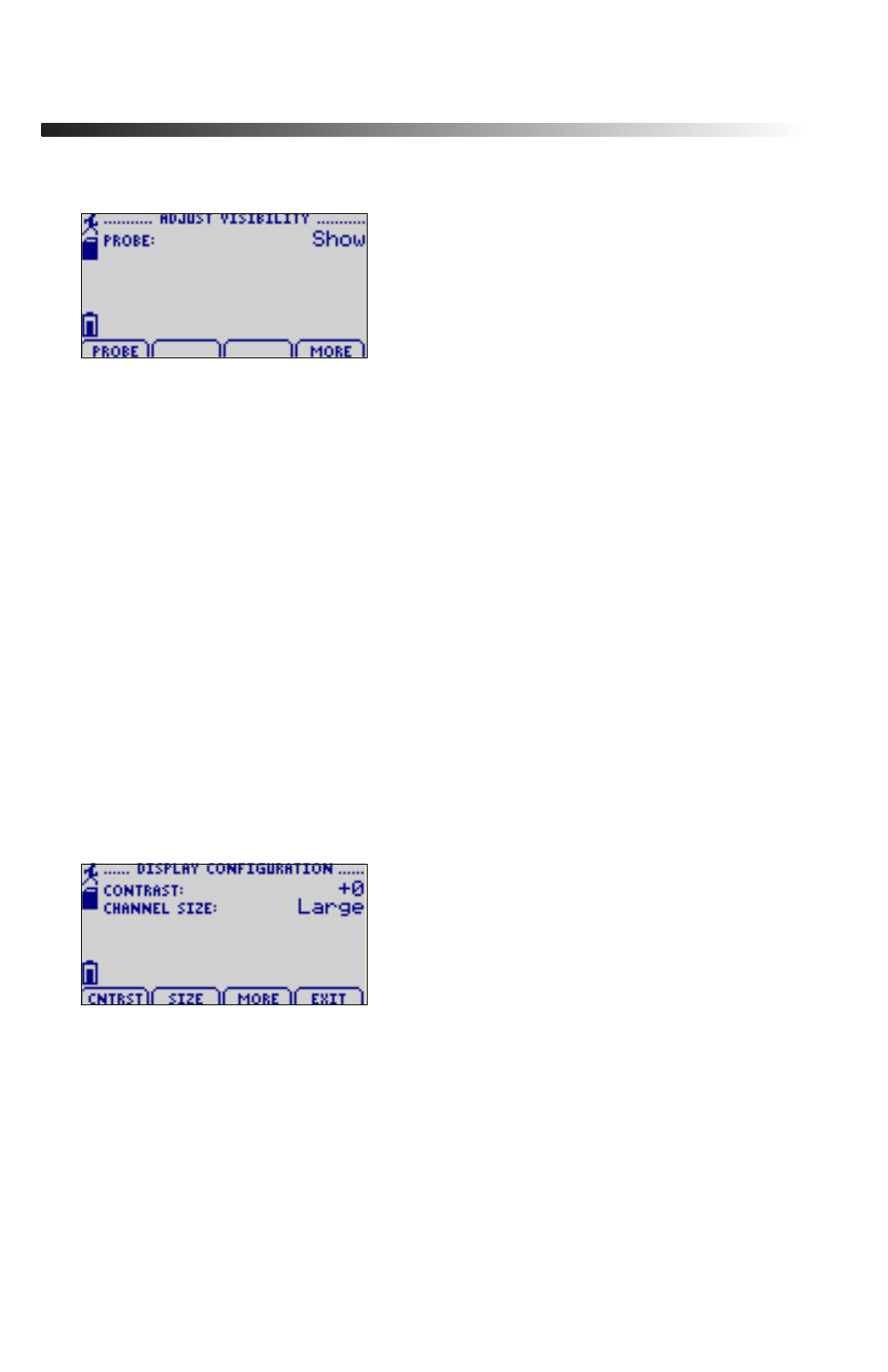

6.12 Adjust Visibility:
Displays options for changing the viewing of the channel on the main screen
(either shows the channel or hides it.)
F1 = PROBE: first highlights and then changes the viewing options of the
external probe channel
F2 = no function
F3 = no function
F4 = MORE: moves on to Display Configuration screen
CANCEL = return to Device Configuration Menu
OK = moves on to Display Configuration screen
UP = once channel parameter configuration tab is highlighted scrolls
through available options
DOWN = once channel parameter configuration tab is highlighted scrolls
through available options
6.13 Display Configuration:
Allows the user to change the contrast of the LCD display as well as the channel
size.
F1 = CNTRST: highlights the contrast parameter configuration tab
F2 = SIZE: highlights and then changes options of the channel size parameter
F3 = MORE: moves back to the Adjust Visibility screen
F4 = EXIT: returns to Display Configuration Menu
CANCEL = returns to Device Configuration Menu
OK = moves back to the Adjust Visibility screen
