Optional accessories
For information on AXIS Camera Station and
video management software from
Axis’ Application Development Partners,
see www.axis.com/products/video/software/
T90A IR Illuminators
Various housings
AXIS 295
Video Surveillance Joystick
Outdoor mains power
adaptor
Technical specifications – AXIS 231D+/232D+ Network Dome Cameras
www.axis.com
©2008 Axis Communications AB. AXIS COMMUNICATIONS, AXIS, ETRAX, ARTPEC and VAPIX are registered trademarks or trademark applications of Axis AB
in various jurisdictions. All other company names and products are trademarks or registered trademarks of their respective companies. We reserve the right
to introduce modifications without notice.
32
46
1/
EN
/R
1/
08
08
Camera
Models AXIS 231D+ 50Hz/PAL
AXIS 231D+ 60Hz/NTSC
AXIS 232D+ 50Hz/PAL (Automatic day/night)
AXIS 232D+ 60Hz/NTSC (Automatic day/night)
Image sensor 1/4” Exview HAD CCD
Lens F1. 4 – 3.0, f=4.1 mm wide to 73.8 mm tele, autofocus
Angle of view, horizontal: 2.8° – 48°
Minimum
illumination
Color: 0.3 lux at 30IRE
AXIS 232D+: B/W: 0.005 lux at 30IRE
Shutter time 1/10000 s to 1 s
Pan/Tilt/Zoom 18x optical, 12x digital zoom
360° endless pan range, 360°/s pan speed
0° – 90° (± 3°) tilt range, 360°/s tilt speed
50 preset positions
Guard Tour
Support Windows compatible joysticks
Video
Video
compression
MPEG-4 Part 2 (ISO/IEC 14496-2)
Motion JPEG
Resolutions 160x120 to 704x576
Frame rate
MPEG-4
Up to 30/25 fps at 2CIF/CIF/QCIF
Frame rate
Motion JPEG
Up to 30/25 fps in all resolutions
Video streaming Simultaneous MPEG-4 and Motion JPEG
Controllable frame rate and bandwidth
VBR/CBR MPEG-4
Image settings WDR (Wide Dynamic Range), compression, brightness,
sharpness, white balance, exposure control
Text and image overlay
De-interlacing
Network
Security Password protection, IP address filtering, HTTPS encryption,
IEEE 802.1X network access control
Supported
protocols
IPv4/v6, HTTP, HTTPS, QoS Layer 3 DiffServ, FTP, SMTP, Bonjour,
UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP,
TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
System integration
Application
Programming
Interface
Open API for software integration, including VAPIX®
from Axis Communications available at www.axis.com
Intelligent video Video motion detection
Alarm triggers
Intelligent video and external input
Alarm events File upload via FTP, HTTP and email
Notification via email, HTTP and TCP
External output activation
Video buffer 9 MB pre- and post alarm
General
Processors and
memory
ARTPEC-2, 32MB RAM, 8MB Flash
Power 24 – 36 V DC, max 28 W
19 – 28 V AC, max 25 VA
Connectors RJ-45 Ethernet 10BaseT/100BaseTX PoE,
Terminal block for 4 alarm inputs and 4 outputs
Operating
conditions
5 – 50 °C (41 – 122 °F)
Humidity 20 – 80% RH (non-condensing)
Approvals EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3,
FCC Part 15 Subpart B Class A, VCCI Class A, ICES-003 Class A,
C-tick AS/NZS CISPR 22 Class A, EN 60065
Power supply: EN 60950, UL, CSA
Weight 1.8 kg (4.0 lb)
Included
accessories
Power supply, mounting brackets for hard and drop ceiling
mount, smoked and transparent covers, Installation Guide, CD
with installation tools, recording software and User’s Manual,
Windows decoder 1-user license

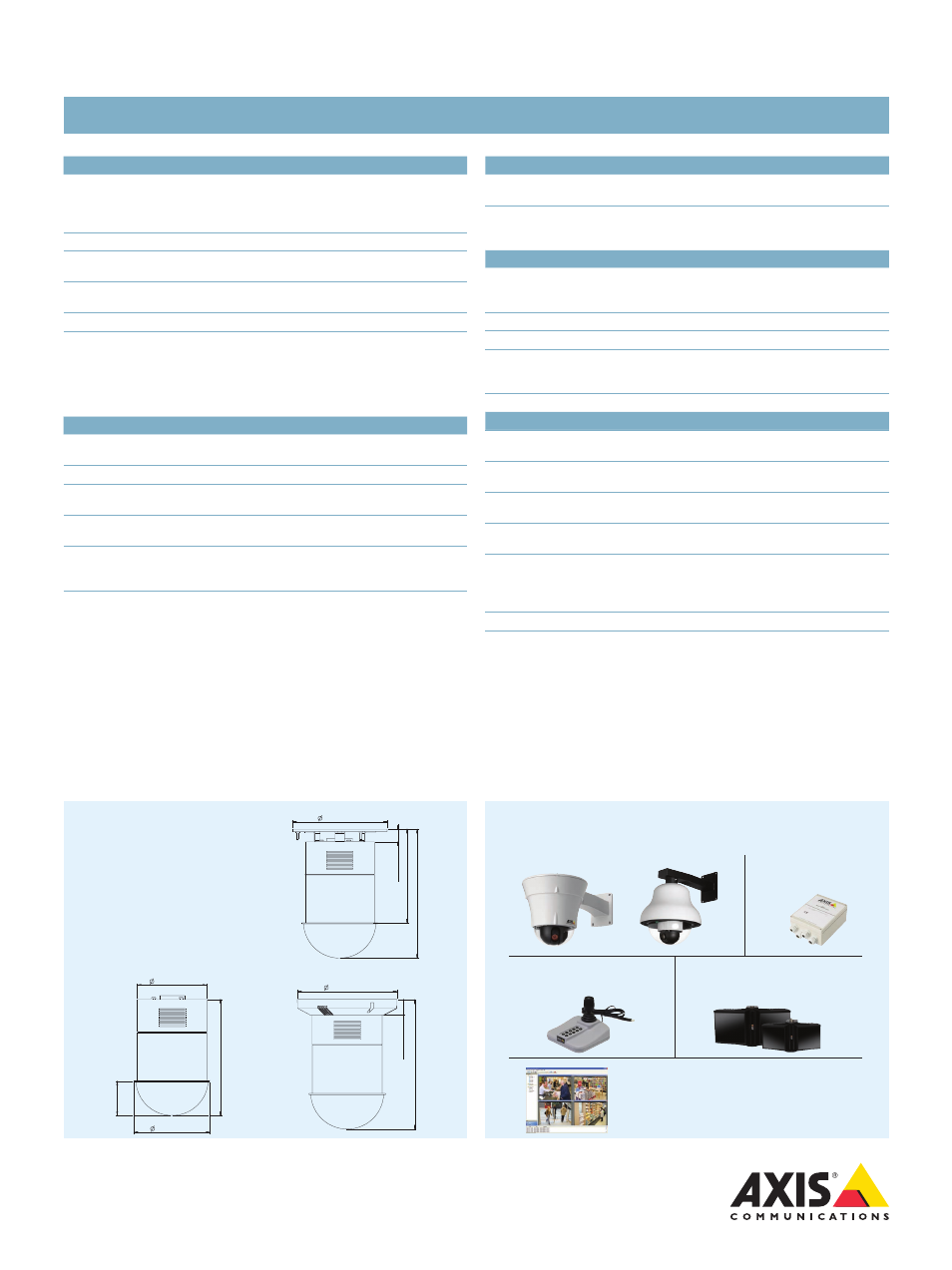

Dimensions
More information is available at www.axis.com
180 mm (7.1”) 187 mm (7.4”)
64.8 mm (2.6”)
131.5 mm (5.2”)
220 mm (8.7”)
143.5 mm (5.6”)
24 mm (0.9”)
177 mm (7.0”)
244 mm (9.6”)
29.5 mm (1.16”)
249.5 mm (9.82”)
180 mm (7.1”) 187 mm (7.4”)
64.8 mm (2.6”)
131.5 mm (5.2”)
220 mm (8.7”)
143.5 mm (5.6”)
24 mm (0.9”)
177 mm (7.0”)
244 mm (9.6”)
29.5 mm (1.16”)
249.5 mm (9.82”)
180 mm (7.1”) 187 mm (7.4”)
64.8 mm (2.6”)
131.5 mm (5.2”)
220 mm (8.7”)
143.5 mm (5.6”)
24 mm (0.9”)
177 mm (7.0”)
244 mm (9.6”)
29.5 mm (1.16”)
249.5 mm (9.82”)
