F4 = MORE: moves to Power Status screen
CANCEL = returns to Device Configuration Menu
OK = moves to Power Status screen
UP = once parameter configuration tab is highlighted scrolls through
available options
DOWN = once parameter configuration tab is highlighted scrolls through
available options

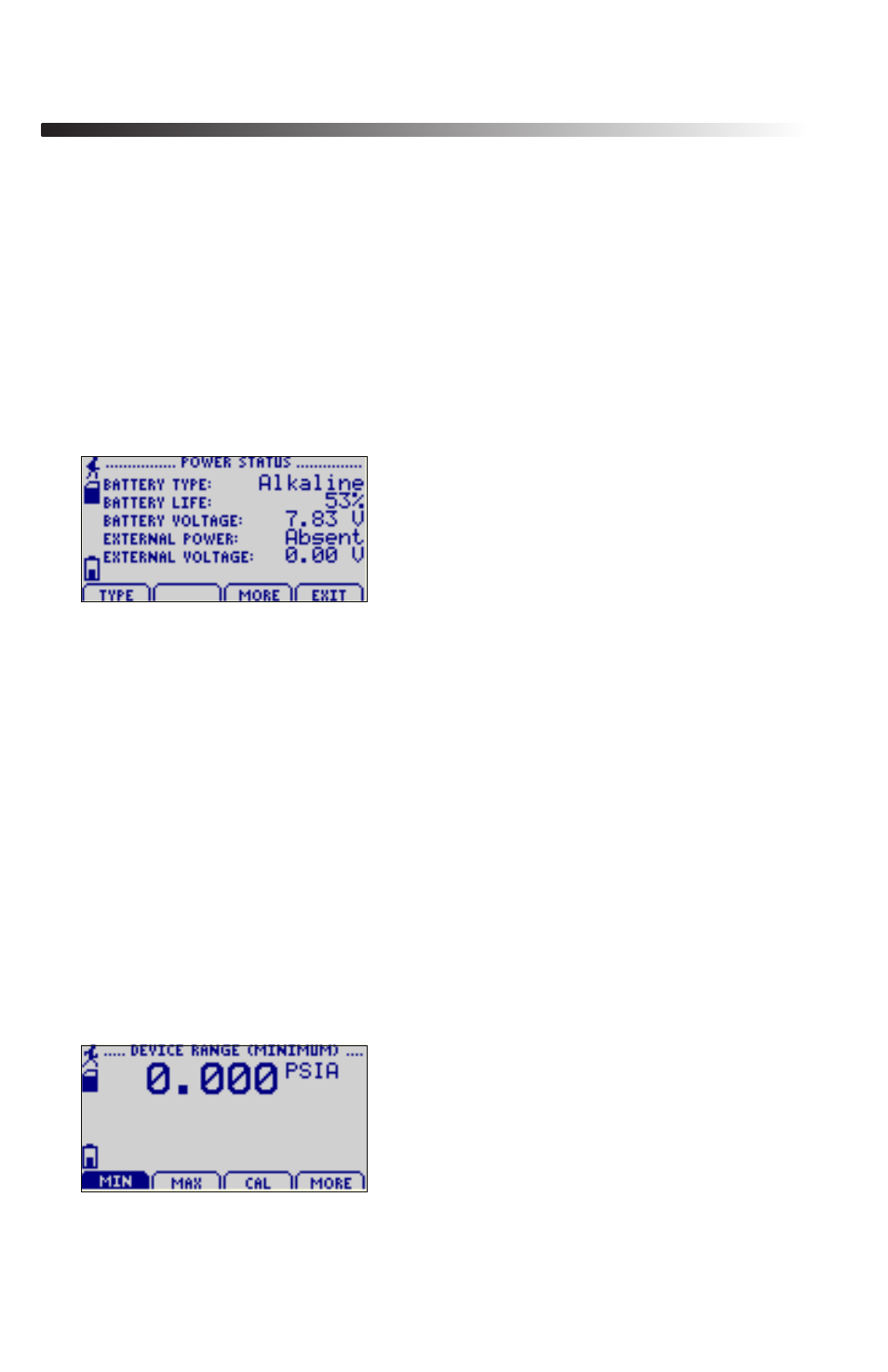

6.16 Power Status Screen:
Displays details about power available to the device including the battery type,
battery voltage, and external voltage.
F1 = TYPE: highlights and then changes battery type (Lithium or Alkaline)
F3 = MORE: moves back to Power Modes screen
F4 = EXIT: returns to Device Configuration Screen
CANCEL: returns to Device Configuration Menu
OK = moves back to Power Modes screen
UP = if type parameter configuration tab is highlighted, scrolls through
available options
DOWN = if type parameter configuration tab is highlighted, scrolls through
available options
6.17 Device Information Screens (Minimum Device Range):
Displays values indicating minimum pressure detectable by the PR2000.
