Page 30
MadgeTech PRHTemp2000

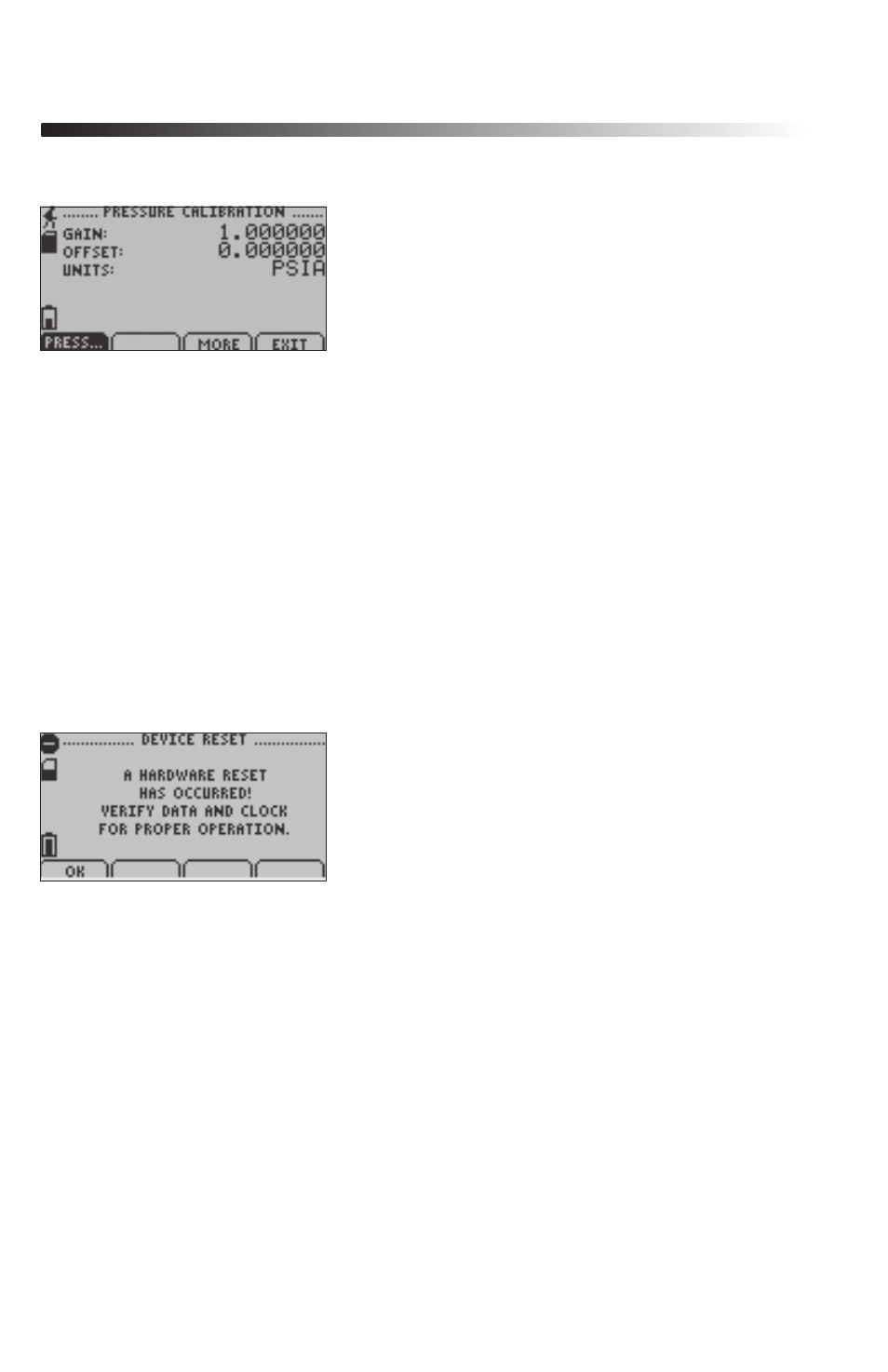

6.1 Calibration Information Screens (Pressure Calibration):
Displays calibration information for pressure channel.
For all Device Information Screens:
F1 = PRESS…: no function
F3 = MORE: shows further calibration information screens
F4 = EXIT: Returns to Device Configuration Menu
CANCEL = Returns to Device Configuration Menu
OK = Returns to Device Configuration Menu
UP = No function
DOWN = No function
6.2 Device Reset Screen (Hardware Reset):
Displayed as notification when a hardware reset has occurred.
F1 = OK: accepts notification and displays main screen
F2 = no function
F3 = no function
F4 = no function
CANCEL = no function
OK = accepts notification and displays main screen
UP = no function
DOWN = no function
