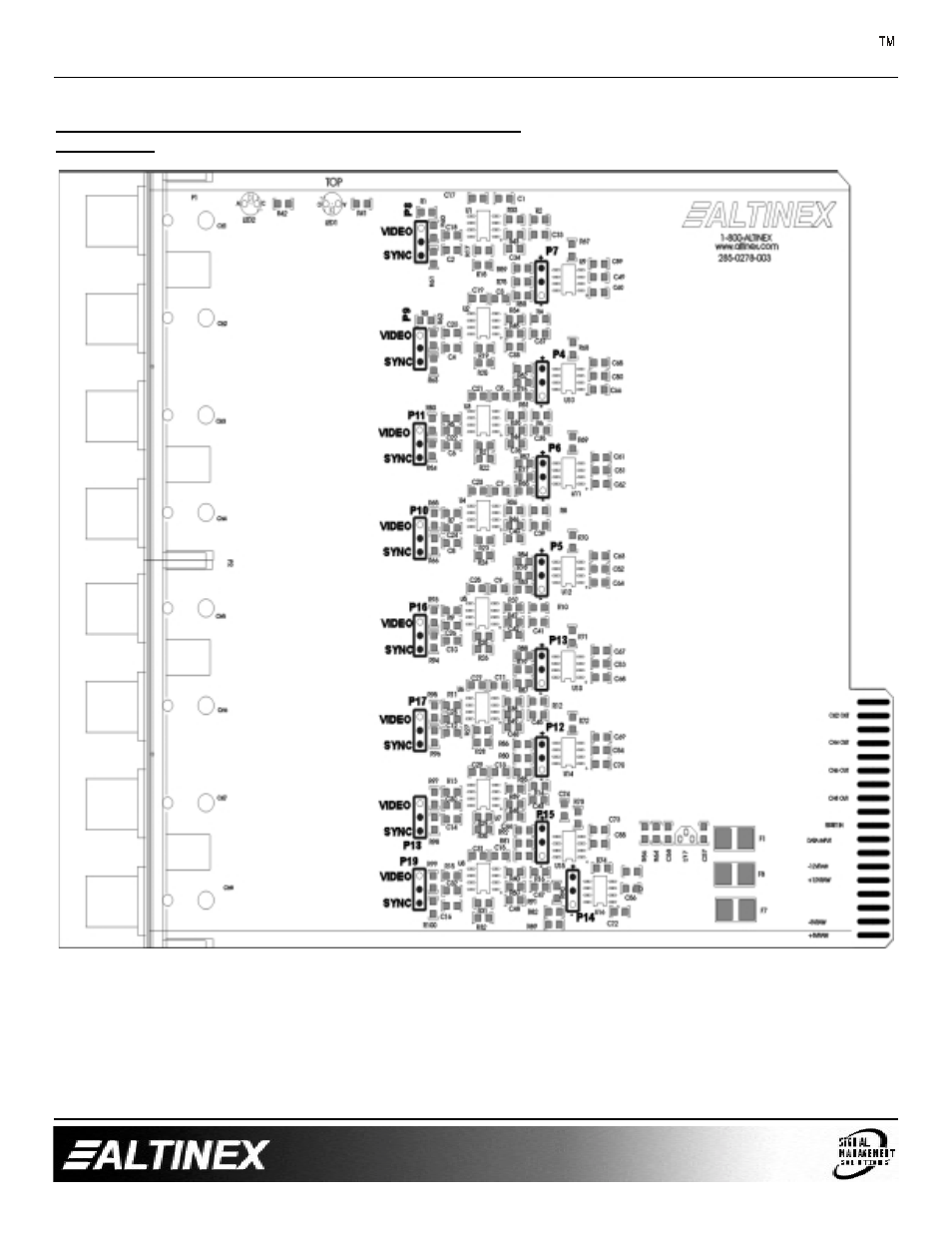

Application 6: Setting Jumpers for Sync-Positive Polarity
(VM2146UX)
Note: In the diagram above, the jumpers are set for positive sync polarity on the following ports: P8, P9, P11,
P10, P16, P17, P18, P19, P7, P4, P6, P5, P13, P12, P15, and P14. For sync, set the jumpers on the left to
the bottom pin and middle pin. For positive sync polarity, set jumpers on the right to the top pin and middle pin
(pins are the dark circles).
