Operation Manual
9
© aud ient 12/2008

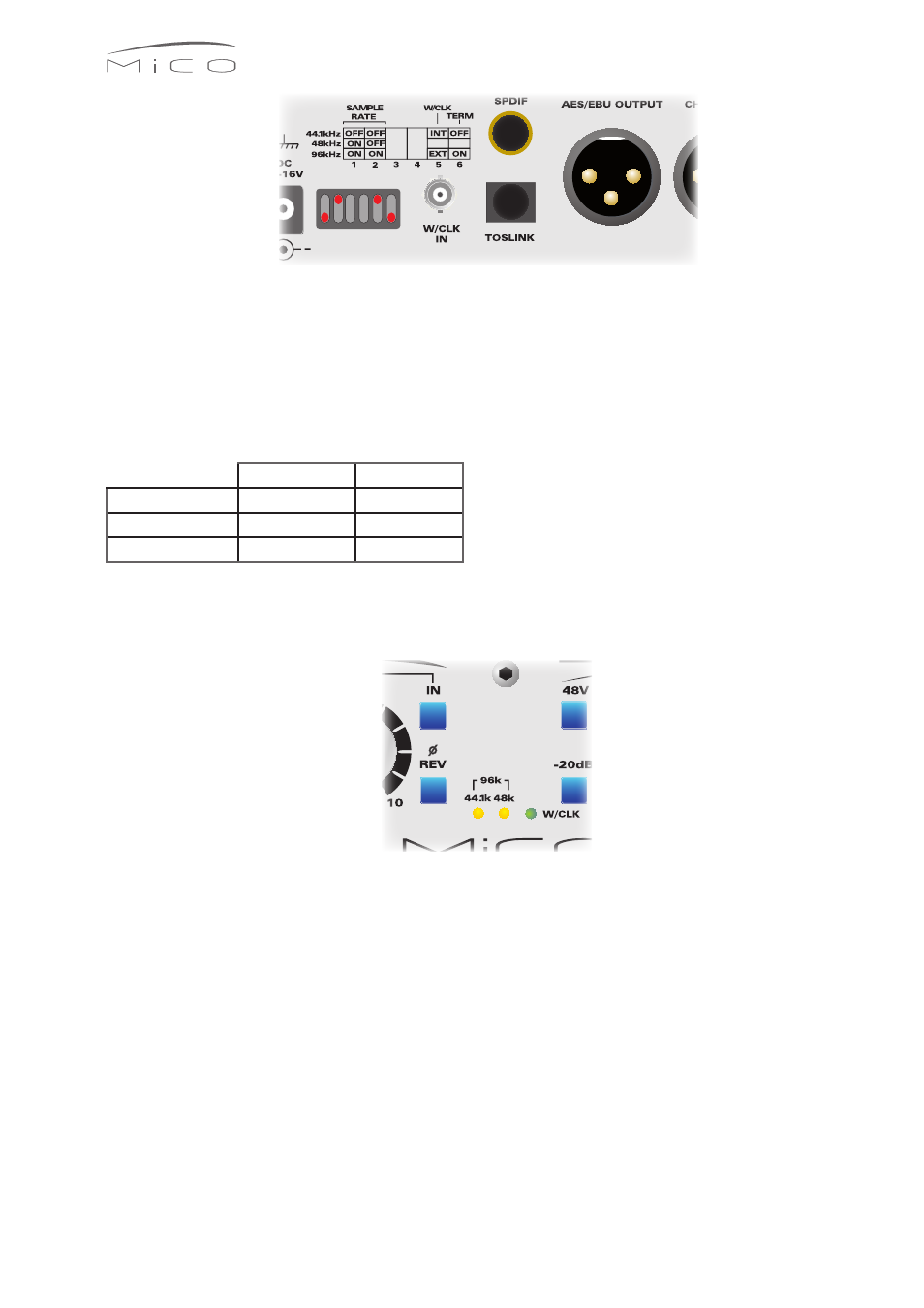

Front Panel Status LeDs
Internal sample rate is indicated by 2
LeDs, either 44.1kHz, 48kHz or - with
both LeDs illuminated - 96kHz. If MiCO
is locked to an external clock source the
green W/CLK LeD will illuminate.
Digital Features
rear panel DIP switch
Sample rate
Switches 1 and 2 are used to set the
sample rate of the convertors, the
table below shows how these can be
selected:
SW1 SW2
44.1kHz Off Off
48kHz On Off
96kHz On On
These should be set when clocking both
internally and externally.
W/CLK
Switch 5 allows for selecting internal
or external (via BNC) clock source. With
the DIP switch up the word clock is
taken from the internal clock. When the
DIP switch is down the Clock source is
taken from the Word Clock input.
TerM
When MiCO is at the end of a Word Clock
chain the 75 ohm load must be inserted
(DIP switch to On).
