Time Electronics 1050 PT100 Simulator - Manual (Page 5)

4
1050 User Manual 4
3. Operation and Controls
Connection to the 1050 is via 4mm banana plugs. Two connections red and black
connect to the simulated element. To select the temperature, rotate the dial until the
temperature is displayed in the window.

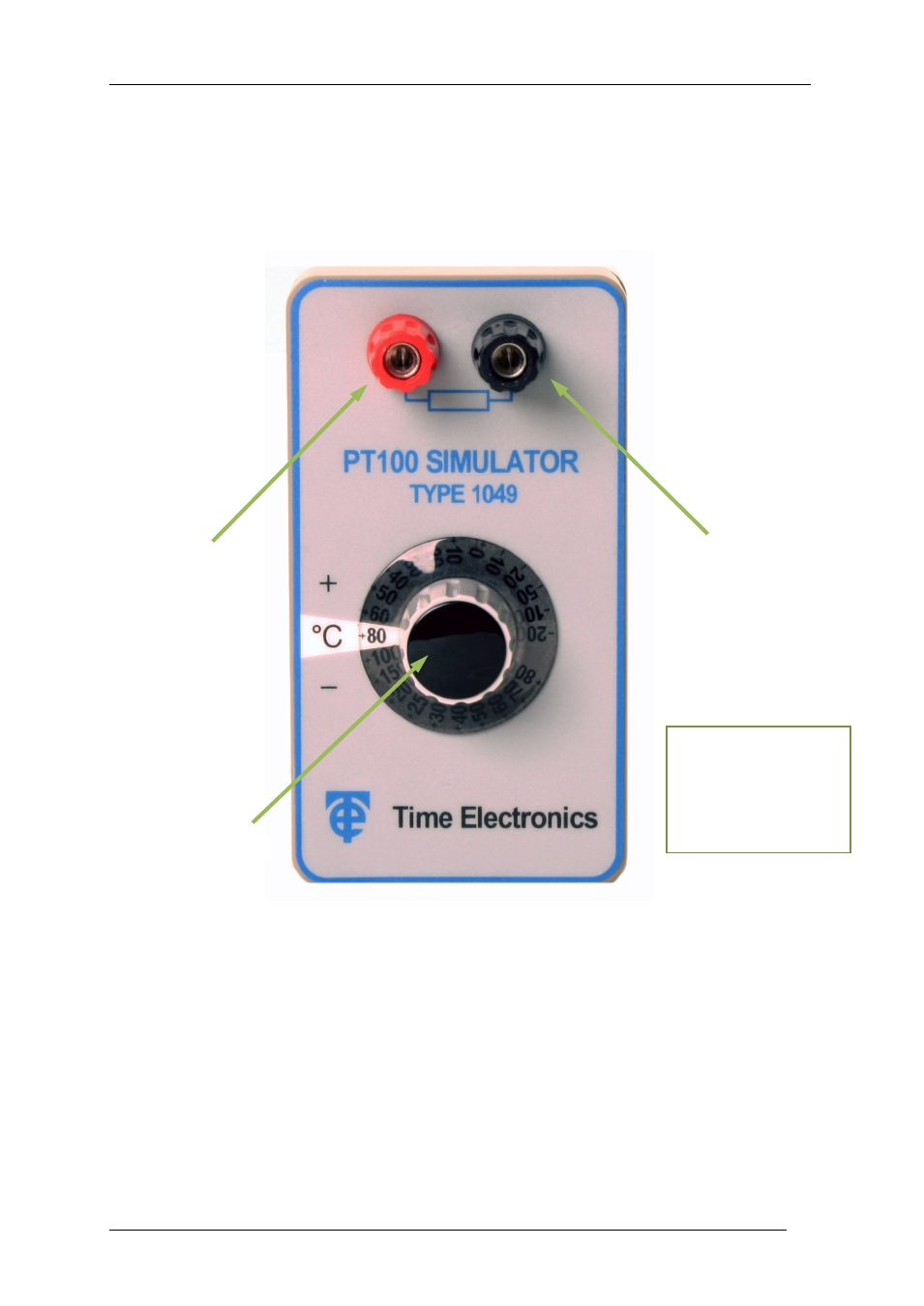

1. 23 set points selector switch Selects Output value of resistance.
2. Black 4mm terminals Resistance output terminal.
3. Red 4mm terminals Resistance output terminal.
1
3
2
Model 1049 (degC
version) shown.
Controls the same
