Ag1000 – Seametrics AG1000 User Manual
Page 7
Page 5

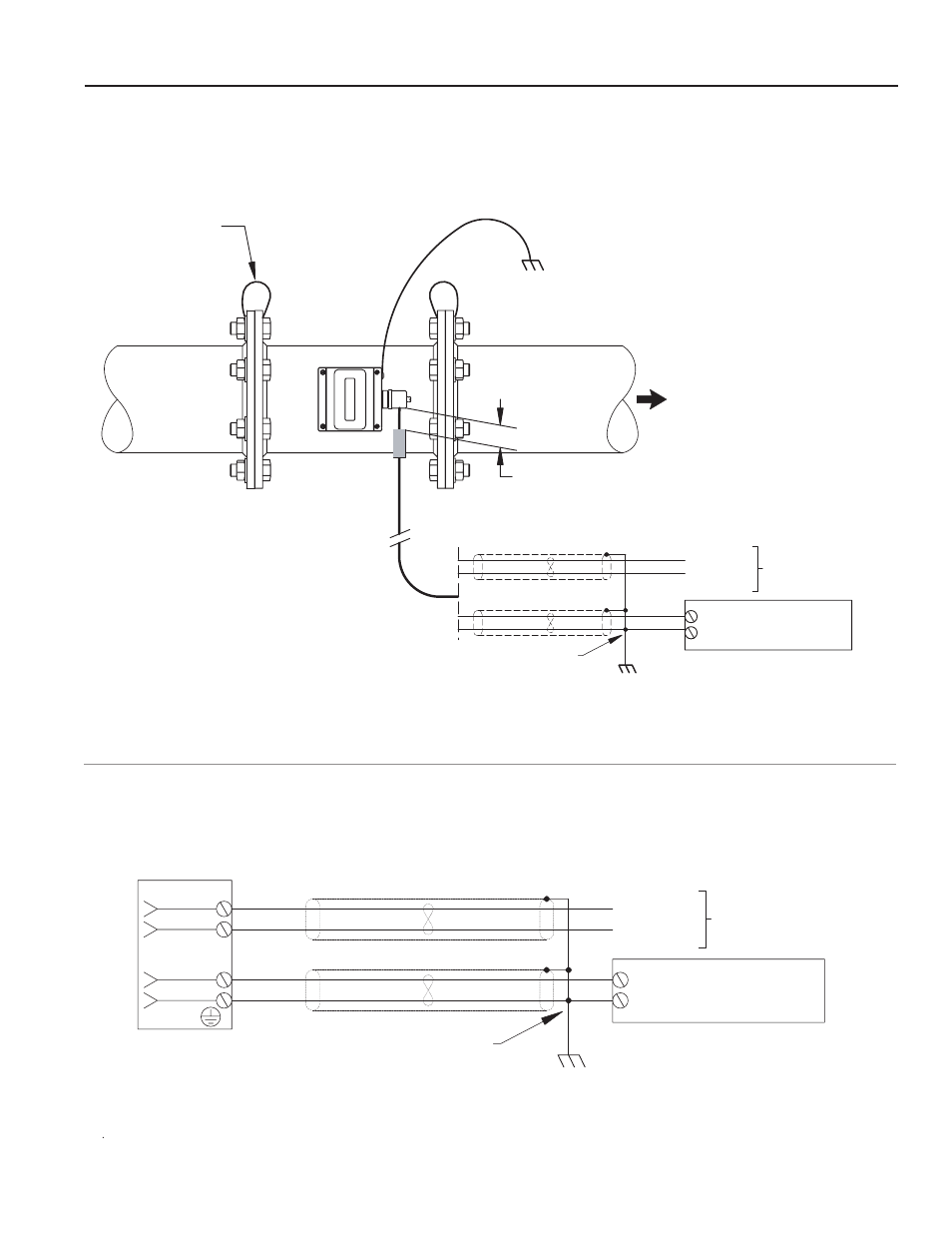

ElECTRICAl CONNECTIONS
STANDARD CONNECTION
(Black)
(Black)
(Red)
(Red)
Reliable
Earth Ground
Pair 1
Pair 2
1
2
3
Connector Block
Tie shield drain wires
to ground wire
Power Supply
+12 to +24Vdc
(+)
(-)
Signal (+)
Signal (-)
Pulse output
CAUTION: Be sure to note Pair 1 & Pair 2 numbers printed on the wires,
since there are 2 wires of each color
CONNECTION WhEN REPlACING CAblE
Ensures full pipe
Keeps pipe full at sensor
For optimum performance,
ground both ends of the
meter to adjacent metal pipe
Reliable
Earth
Ground
.5 in. Maximum
Ferrite Bead,
Digi-Key p/n
240-2076-ND
Operating Cable,
2 pair shielded
Green ground wire,
supplied
Tie shield drain wires
to ground wire
Reliable
Earth Ground
(Red)
(Red)
(Black)
(Black)
Pair 2
Pair 1
Pulse output
Signal (+)
Signal (-)
(+)
(-)
Power Supply
+12 to +24Vdc
AG1000
