Seametrics AD30 - Manual (Page 2)

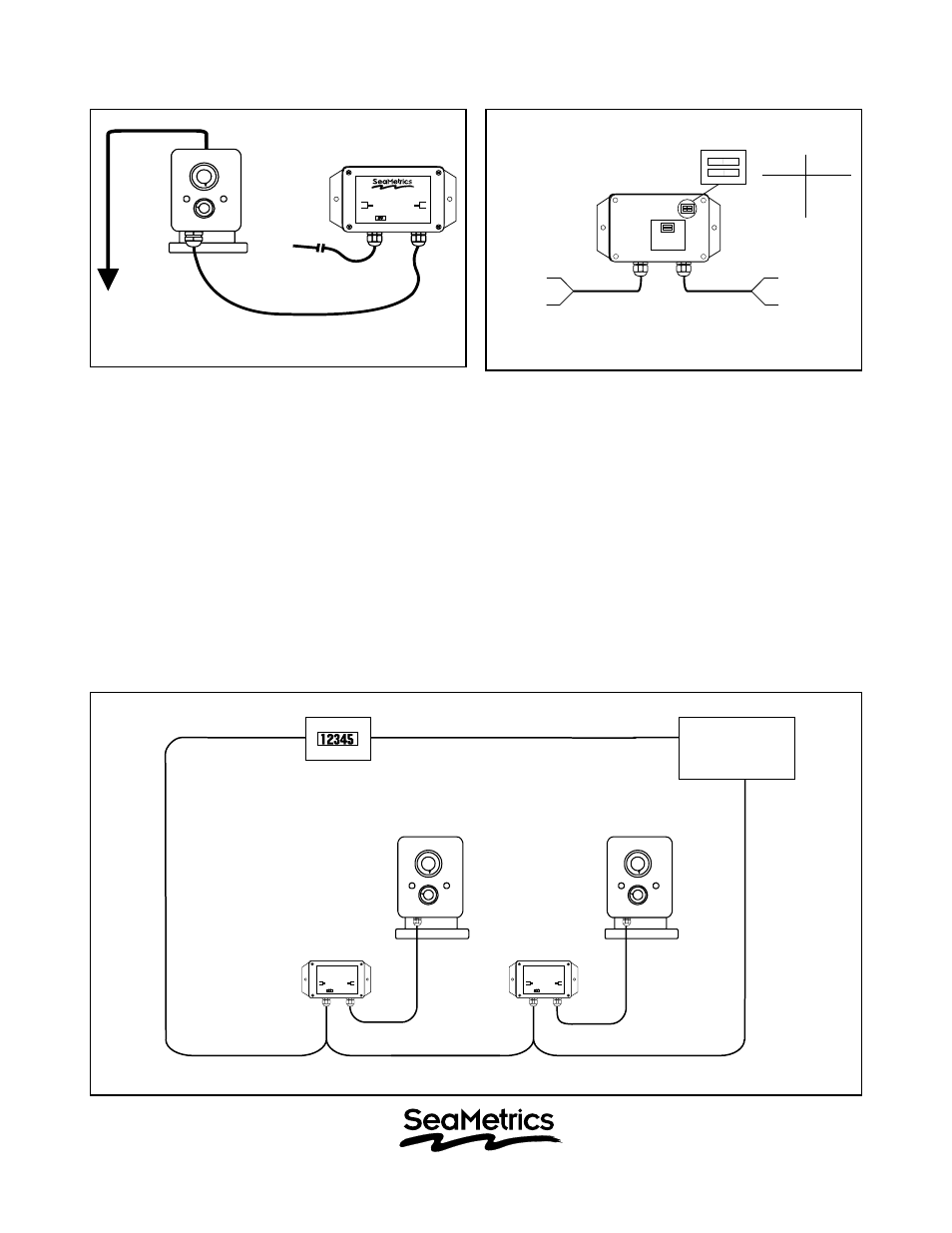

Connections (without connector) Typical Application
RED +
BLACK -
RED +
BLACK -
INPUT 4-20 mA OUTPUT PULSE
PPM MAXIMUM
Analog to Pulse Converter
4-20 mA process
signal instrument
Chemical output proportional
to process signal
Chemical metering
pump
Installation
Use the double adhesive strips on the back of the mod-
ule to mount the AD30 to the pump or any other clean,
flat surface. If screw mounting is desired, use the two
screw holes provided on the sides of the unit.
Connections
If the AD30 was ordered with a pump connector for your
pump, connect the pump by plugging it in. If there is no
pump connector, follow the connections diagram. Con-
nect to the analog signal as shown.
Operation
Pulse output from the AD30 increases or decreases pro-
portionally with the 4-20 mA input signal. At 20 mA,
output is at the rated maximum strokes per minute, and
at 4 mA there are no pulses.
Repair
There are no field-repairable components in the AD30.
If the unit should fail to operate, contact your distributor
or SeaMetrics for information.
Multiple Pump Application
20419 80th Ave. So., Kent WA. 98032 USA
Phone: 253-872-0284 Fax: 253-872-0285
www.seametrics.com 1-800-975-8153 2 of 2
RED +
BLACK -
RED +
BLACK -
INPUT 4-20 mA OUTPUT PULSE
PPM MAXIMUM
Analog to Pulse Converter
Chemical
metering
pump
Neg. (-) Black
Neg. (-) Black
Neg. (-) Black
Optional 4-20 mA
digital display
Pos. (+) Red
RED +
BLACK -
RED +
BLACK -
INPUT 4-20 mA OUTPUT PULSE
PPM MAXIMUM
Analog to Pulse Converter
Chemical
metering
pump
Neg. (-) Black
Pos. (+) Red
Pos. (+) Red
4-20 mA
process signal
instrument
4-20 mA input
Red (+) Red (+)
Black (-) Black (-)
Pulse output
OPEN 1 2
OPEN 1 2
OPEN S1 S2
S1 O
C
O
C 60 PPM
80 PPM
100 PPM
150 PPM O
O
C
C S2
60 PPM
80 PPM
100 PPM
150 PPM
S1
O
C
O
C O
O
C
C
S2
Position Output
Rate
DIS
CON
TIN
UED
