RSP5
Solar Panel
Periodic cleaning of the solar panel glass is recommended to
remove dust accumulation. Snow and ice may need remov-
al if it remains more than 2 weeks. Installing the panel at a
steeper than 45 degree angle may make this unnecessary in
most areas. Battery service life for good quality SLA batteries
should be 4-6 years. Actual maintenance replacement inter-
val will depend on local conditions and criticality of data.
MAINTENANCE
CONTACT YOUR SUPPLIER
12V SLA
Battery
Flow Sensor
or Display
Solar Char ge Controller
wirenut connector s,
4 places
SOLAR
BATTERY
yellow
black
black
red
red
black
red
black
red
black
fuse holder
with 1A fuse

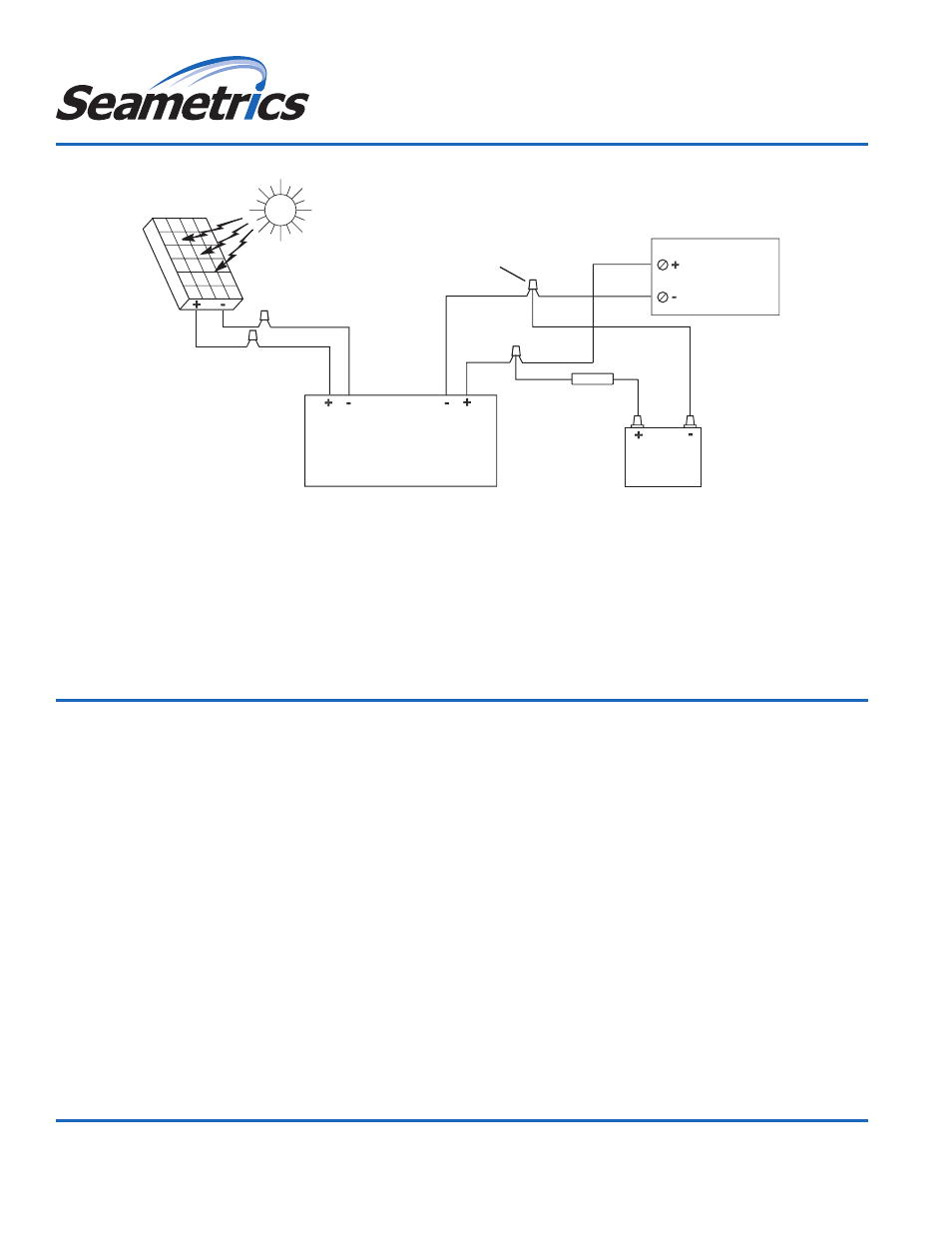

WIRING DIAGRAM
