MOUNTING & CONNECTIONS
MOUNTING
There are three mounting configurations for a DL76: Meter
mount for mechanical meters, meter mount for insertion
magmeters, and wall mount (DL76W). The meter mount
models match up to any Seametrics lower square housing.
All configurations can be factory-ordered or field-installed.
Converting from one mounting configuration to another
requires use of MK10 or MK20 mounting kits.
Meter Mounting. Remove the four screws on the meter cover
with a 5/32” Allen wrench. After connecting the leads to their
respective terminals (see diagram), put the DL76 in place of
the meter cover and tighten the screws evenly. The gasket
on the DL76 should be visibly compressed by tightening all
around.
OPERATION
Seametrics FlowInspector V.2 software is required for
operation of the DL76. Please consult your FlowInspector
manual for instructions in loading the software onto your
computer, setting up your DL76 for use, downloading, storing,
and analyzing your data.

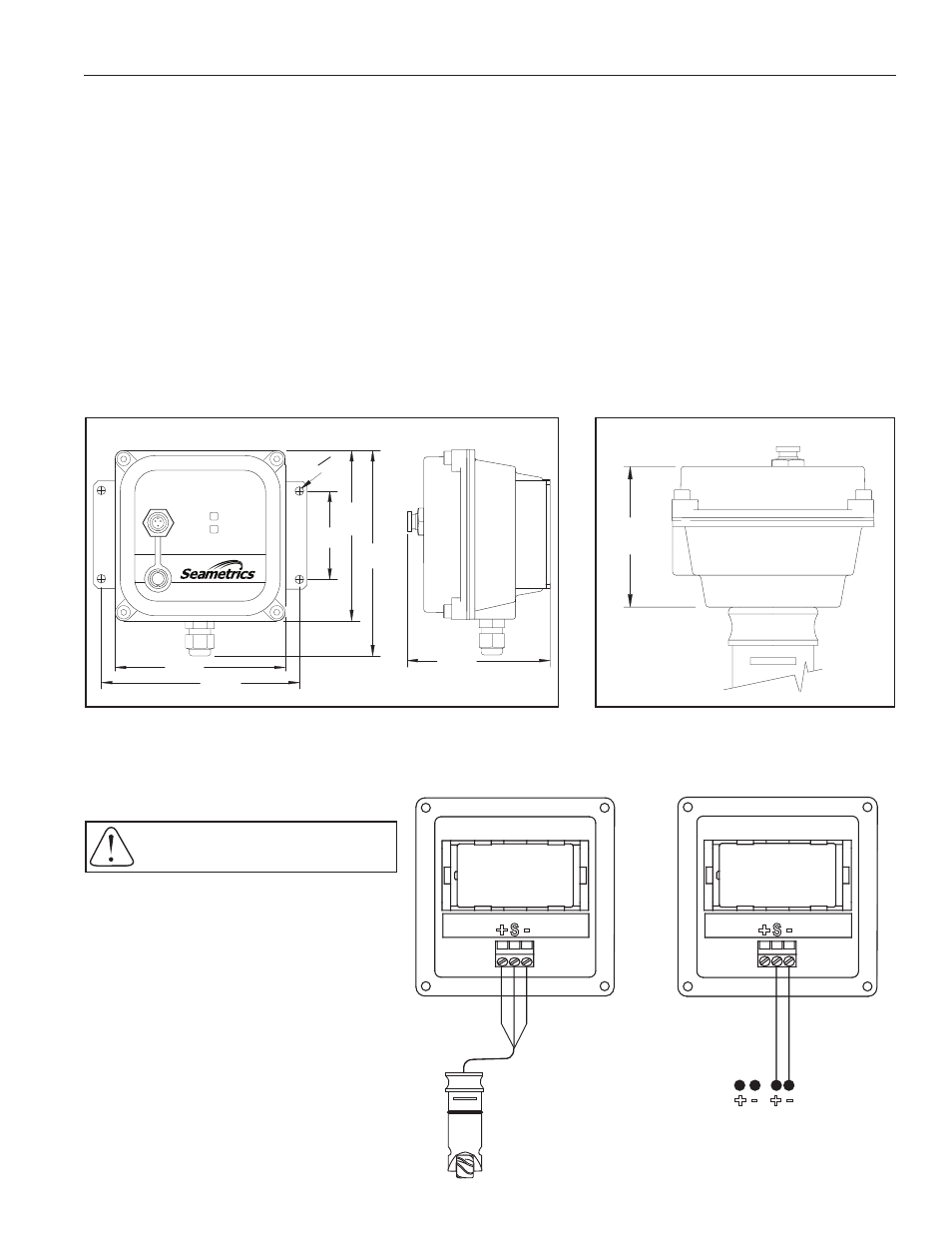

DIMENSIONS
2.82”
7.16 cm
3.95”
10.03 cm
4.52”
11.48 cm
3.35”
8.51 cm
2.06”
5.23 cm
3.95”
10.03 cm
DL76
Data Logger
Data
Port
Active
Replace
Battery
4.90”
12.45 cm
3 “
16
4.77 mm
DL76W (WALL MOUNT) DL76M (METER MOUNT)
CONNECTIONS (see also next page)
Caution: Do not apply external
power to the DL76
Re
d
White Black
Flow Sensor
+ S -
Magmeter
Connections
+ S
-
+ - + -
Forward
Output
Power
DL76 TO MECHANICAL METER DL76 TO MAGMETER
