C O N T R O L F U N C T I O N S

A

L E D

When the LED is lighted the Amp 1 is “ON”, receiving

power from the power supply.

B

ON- OF F BUTTO N

When in the ON position (button depressed), high

voltage power is received by the Amp 1 circuitry from

the power source. Due to the warm up characteristics

of tubes, it will take 30 seconds for the tubes to pass

full signal. It is suggested that the Amp 1 remain

muted or the Volume turned down for this first

minute. When in the OFF position (not depressed),

the Amp 1 is not receiving power and is not opera-

tional.

3

C

D E TACHABLE AC PO WER CO RD SOCKET

Plug the Detachable Power Cord into this socket (see

Figure 2). The Amp 1 is factory set for the correct

operating voltage for the area in which it is sold (see

shipping box for voltage setting). If a different operat-

ing voltage is required, please contact an authorized

Sonic Frontiers or Anthem dealer, distributor or the

factory directly.

D

SPEAKE R C ONNE CT ION POSTS

These 5 way binding posts accept a connection from

one pair of speakers. The negative connections are to

be made to the black connectors; left speaker to the

terminals marked left and right to the terminal marked

right. The positive connections are determined by the

speakers. If the speakers impedance tends towards

an 8 ohm load, use the left and right positive (red)

posts labeled as 8 ohm. If the speakers are better

represented by a 4 ohm load impedance, use the

positive connectors labeled 4 ohm. Consult your

speaker specification sheet, manual or manufacturer

directly if there is any clarification needed regarding

the impedance of your speakers. NOTE: ONLY O N E

PA I R OF POSITIVE C O N N E C T O R S M AY B EU S E D AT A

TIME. UNDER N O C I R C U M S TA N C E S A R E T W O PA I R

O F S P E A K E R ST O B E C O N N E C T E D T O BOTH 4 OHM

A N D 8 O H M P O S T S .

Refer to Figure 2 for further instruction.

C O N N E C T I O N F U N C T I O N S

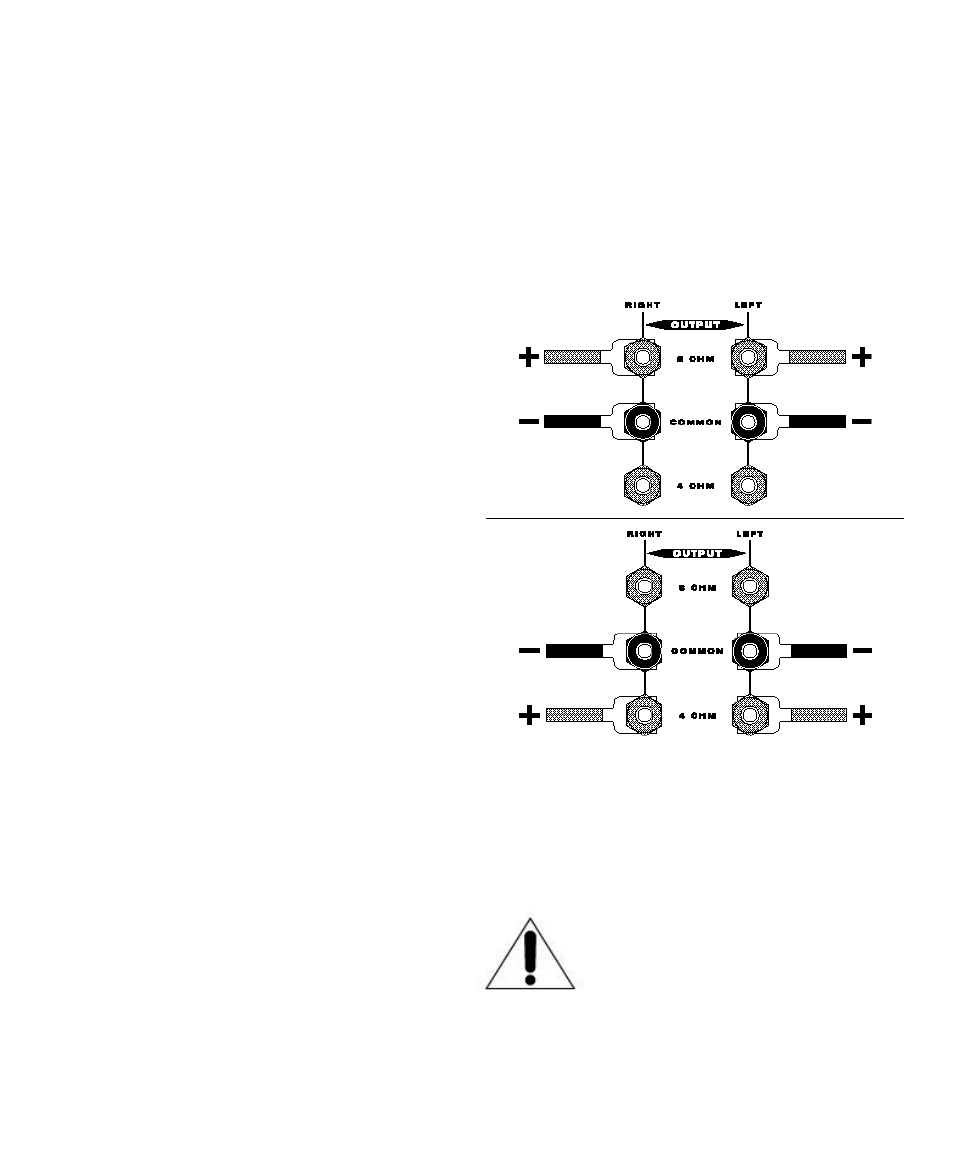

F I G U R E 2

Top figure shows a connection to a loudspeaker with an

8 ohm impedance, lower figure shows a connection to a

speaker with 4 ohm impedance.

WARNING-DISCONNECT THE A C D E TA C H-

A B L E P O W E RC O R D F R O M T H E AMP 1

AND WAIT 5 MINUTES BEFORE REMOV-

ING COVER, TUBES OR FUSE.

E

PREAMPLIFIE R I NPUT

This input accepts RCA input connections from an

external preamp or crossover; connect left channel to

left channel and right channel to right channel.
