3

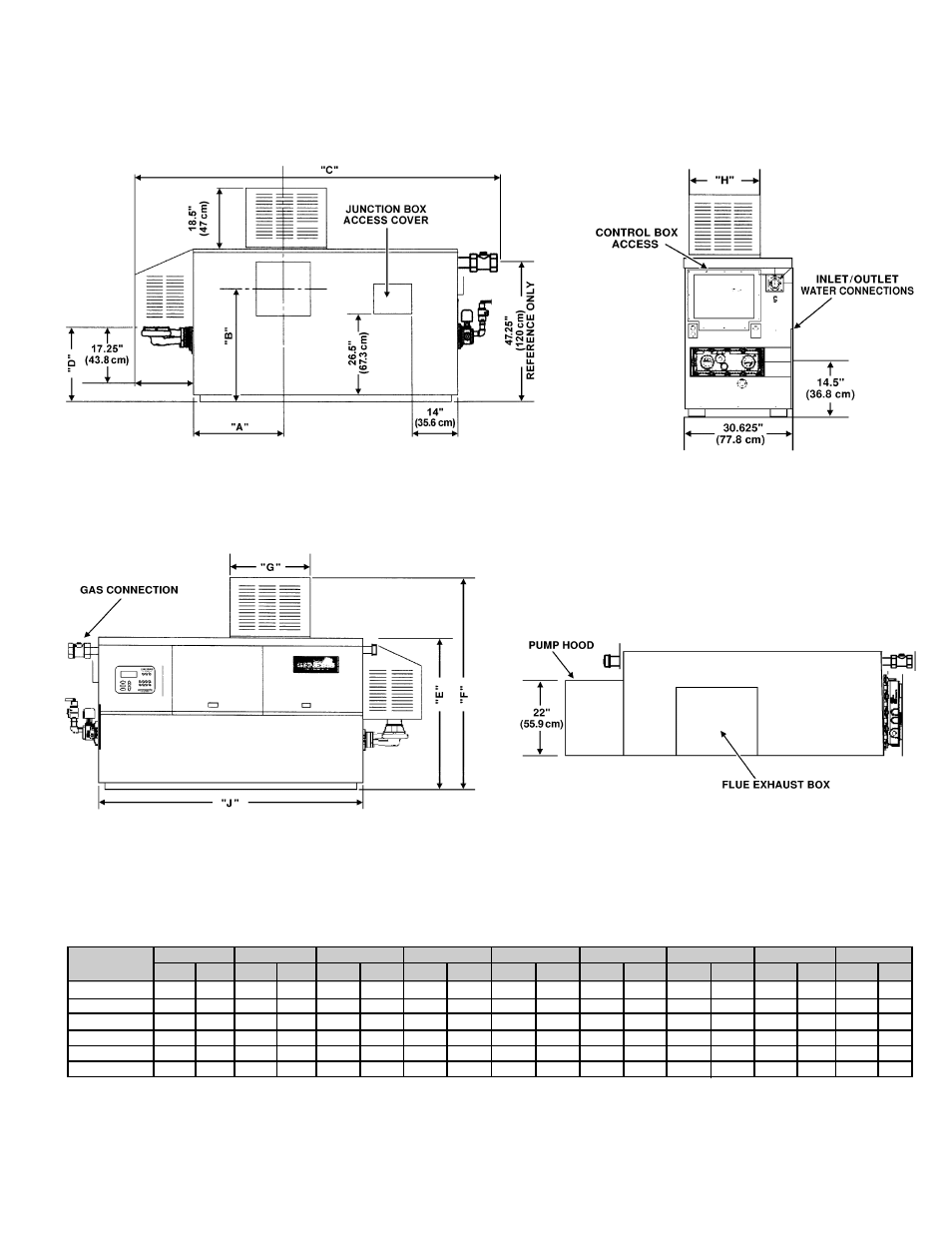

DIMENSIONS DATA FOR OUTDOOR CONFIGURATION
Figure 2.
TABLE 3. DIMENSIONAL DATA
A B C D E F G H J
Model Inches cm Inches cm Inches cm Inches cm Inches cm Inches cm Inches cm Inches cm Inches cm
GBO/GWO-1000 14 35.5 31.6 80.3 71.8 182.4 15.5 39.4 39.75 101 58.25 148 15.9 40.83 16 40.64 46.8 118.9
GBO/GWO-1300 24.75 62.9 31.6 80.3 82 208.3 15.5 39.4 39.75 101 58.25 148 15.9 40.83 16 40.64 57.3 145.5
GBO/GWO-1500 30 76.2 31.6 80.3 89 226 15.5 39.4 39.75 101 58.25 148 15.9 40.83 16 40.64 64.3 163.3
GBO/GWO-1850 27.5 69.9 32.3 82 103 261.6 18.9 48 43 109.2 61.5 156.2 23.9 60.7 20 50.8 78.3 198.9
GBO/GWO-2100 31 78.7 32.3 82 110 279.4 18.9 48 43 109.2 61.5 156.2 23.9 60.7 20 50.8 85.3 216.7
GBO/GWO-2500 38 96.5 32.3 82 124 315 18.9 48 43 109.2 61.5 156.2 23.9 60.7 20 50.8 99.3 252.2
TOP VIEW
REAR VIEW
FRONT VIEW
LEFT SIDE
