FRS-1002-MD / FRS-1002-MD-LG-PA

Guide to installation and operation

6 status LEDs are located near the FRS-1002 card’s front edge.
Consult the graphic and color code below to identify the LEDs and their
meanings

Card Status - LED color code

Green

Yellow

Red

Normal

Minor Problem

Critical error

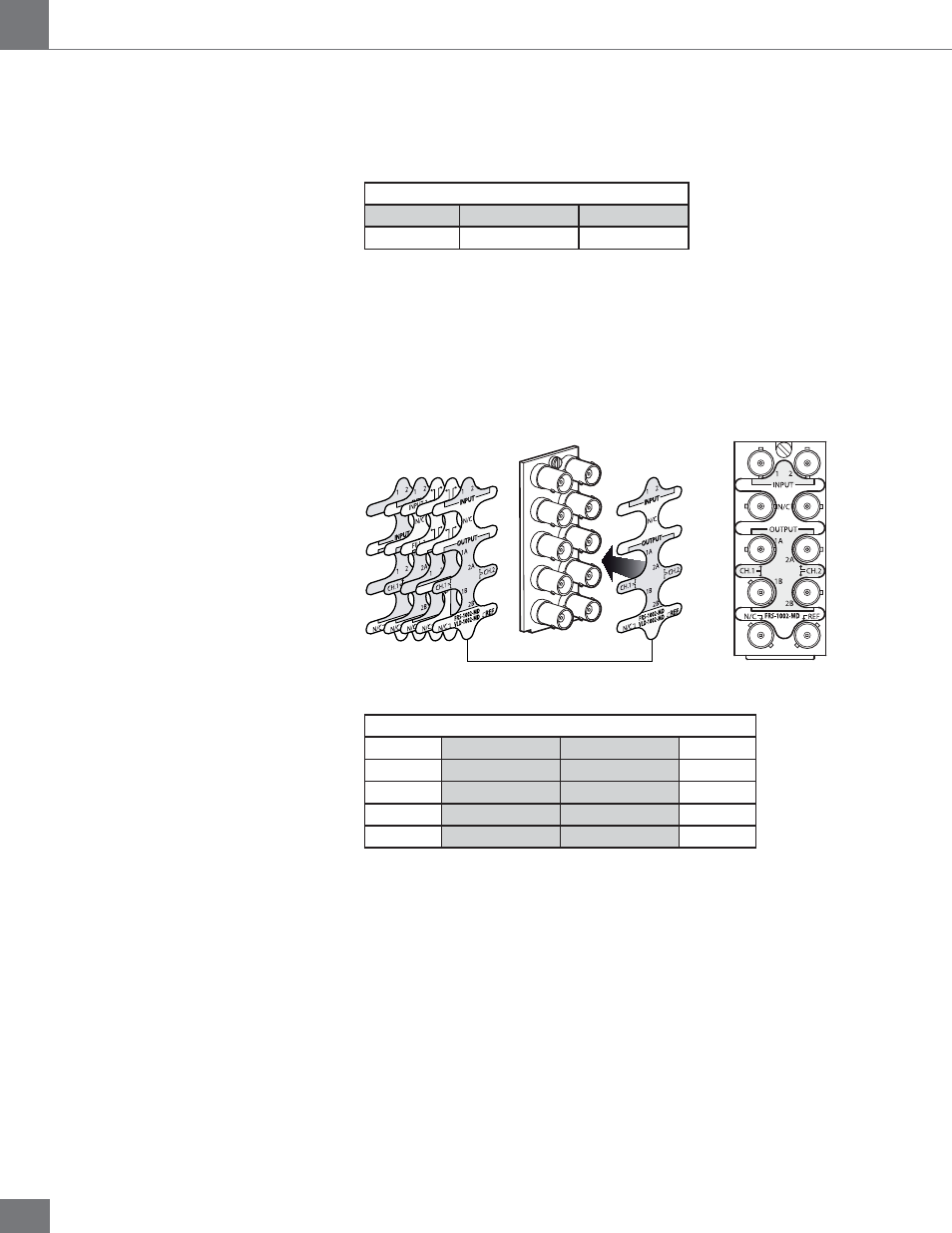

Rear Input / Output Module Labels

Algolith’s FRS-1002 card comes with the rear module labels of every
available Algogear product at the time of purchase. To identify your card
and the connectors at the back of the openGear frame, simply push the
appropriate label onto the BNC connectors to identify the card’s inputs
and outputs.

Rear Label

Push onto connectors

Select the
appropriate label

3 4

VNR-1000-SD

INPUT 1

FILL 1

SAFE 1

XVC-1001-UC

FRS-1002-MD

BNC 1

Input 1

Input 2

BNC 2

BNC 3

No connection

BNC 4

BNC 5

Output 1A

Output 2A

BNC 6

BNC 7

Output 1B

Output 2B

BNC 8

BNC 9

No connection

Reference

BNC 10
