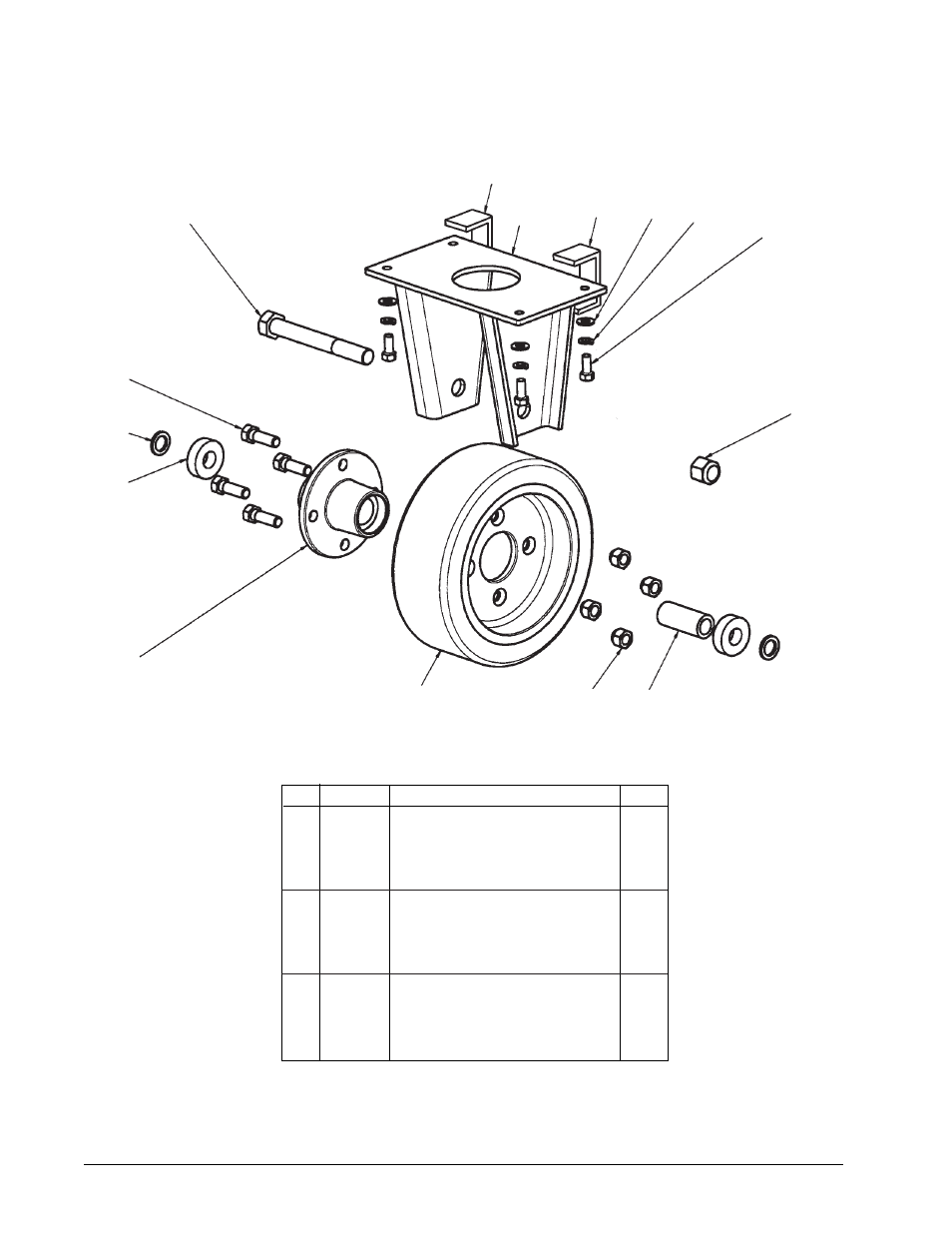

Front Wheel Assembly Drawing and Parts List 6/07
Drawing #10779A
Ref Part No. Description Qty
1 80267A Bolt, 3/4 - 16 Hex Head 1
2 61472A Yoke Weldment, Steering 1
3 980645 Washer, 3/8 Flat 4
4 170883 Washer, Lock 3/8 4
5 85822A Screw, 3/8 -16 x 7/8 Hex Hd. 4
6 80268A Nut, .750 ESNA 1
7 * Spacer, Center (included w/#10) 1
8 81221A Nut, 1/2 -20 Lug 4
9 61382A Wheel, Anti-Skid 1
10 61691A* Hub Assembly, Front Wheel 1
11 * Bearing (included w/#10) 2
12 * Spacer (included w/#10) 2
13 85838A Bolt, 1/2 -20 Hex 4
14 61877A Stop, LH Steering 1
15 61878A Stop, RH Steering 1
*Front Wheel Hub Assembly (61691A) includes reference
#’s 7, 11 and 12.
