Continuity & electrical diagram, Ontinuity, Lectrical – Ariens 911150 - BRP21 User Manual

Page 15: Iagram

background image

15

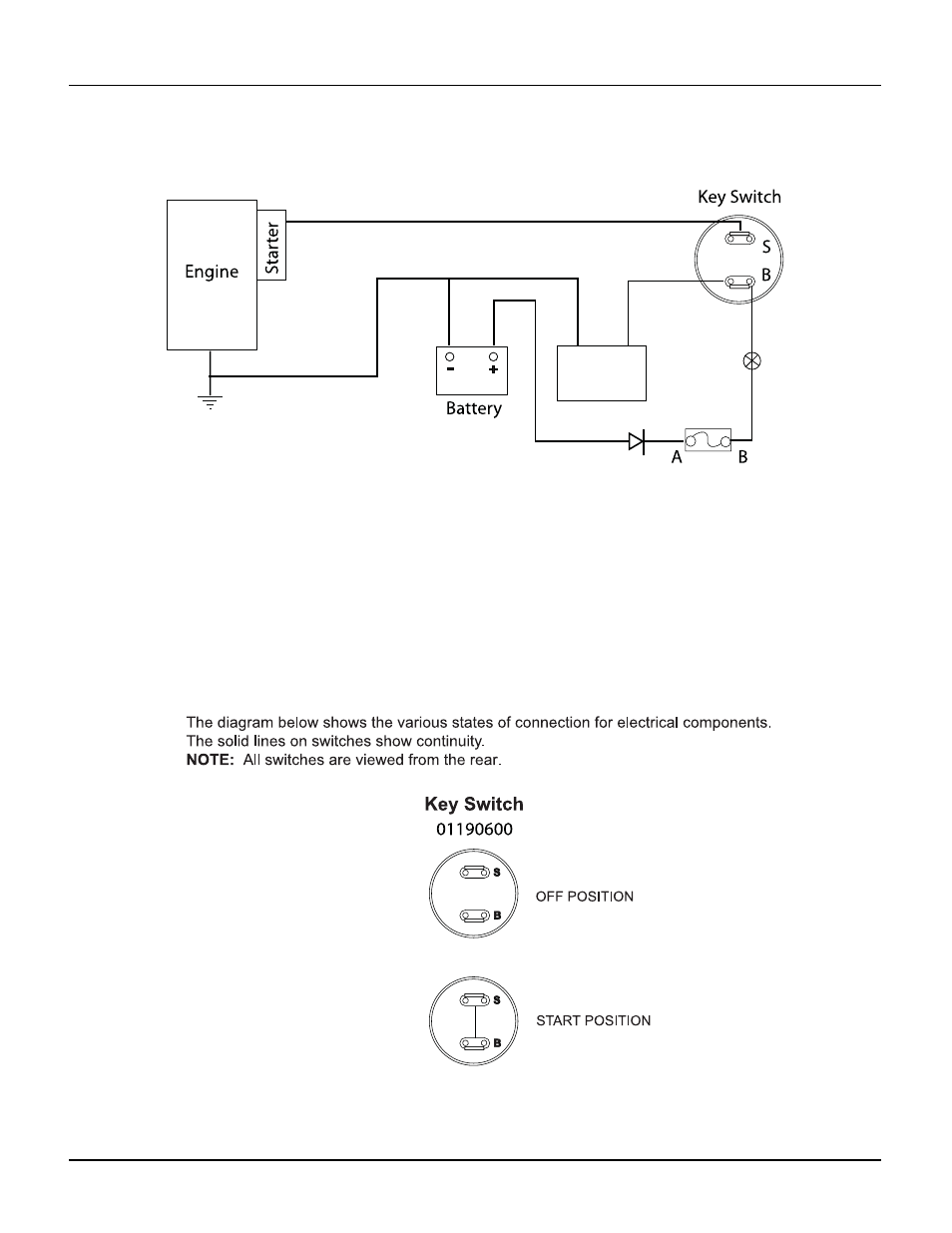

C

ONTINUITY

& E

LECTRICAL

D

IAGRAM

Model 911154

30 Amp

Splice

RED

BLACK

Charger
Terminal

RED

BLACK

BLACK

BLACK

Black Wire /
Red Shrink
Wrap Cover

RED
