1.8 Installation
To setup Avenview SW-HDSDI-8X1 follow these steps for connecting to a device:
1. Connect SDI enable equipment’s to the output of SW-HDSDI-8X1
2. Connect the SDI input sources to the inputs of SW-HDSDI-8X1
3. Plug power adapter cable into 5V DC power jack of SW-HDSDI-8X1
4. Use IR Remote, RS232 or front panel push button to switch between inputs.

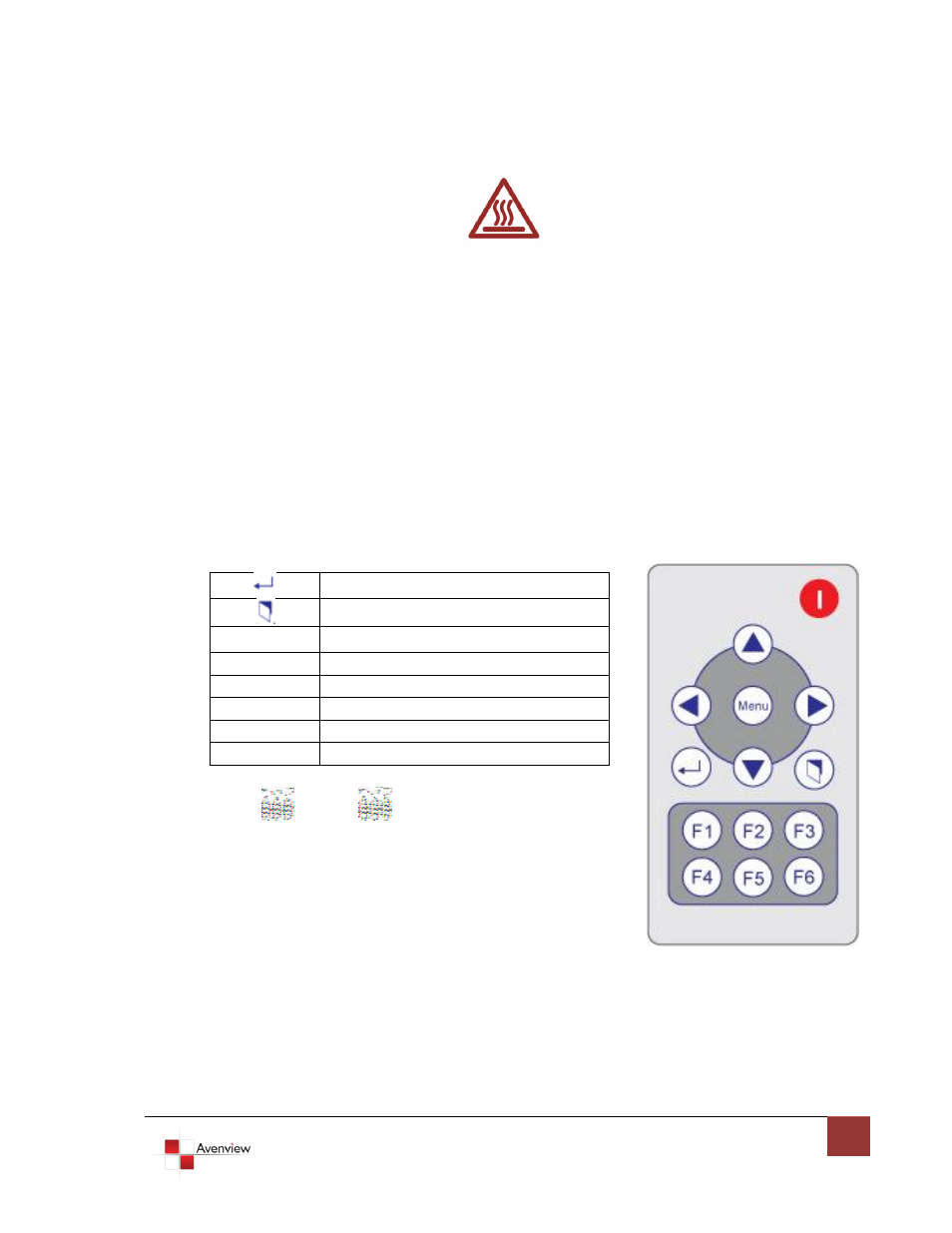

1.9 Operation and IR Control
Channel 1
Channel 2
F1 Channel 3
F2 Channel 4
F3 Channel 5
F4 Channel 6
F5 Channel 7
F6 Channel 8
a. Use or keys to select input source, and
wait a few seconds for video of next channel coming out after
the channel switch command is sent.
