3.0.2 Microprocessor Control Circuit

The control circuit is microprocessor based and is packaged as a plug-in f ield replaceable module, facilitating easy

replacement and minimum down time. Circuit functions include a basic sensor pre-amplif ier, on-board power sup-

plies, microprocessor, back lit alpha numeric display, alarm status LED indicators, magnetic programming switches,

an RS-485 communication port, and a linear 4-20 mA DC output.

3.0.3 Base Connector Board

The base connector board is mounted in the explosion proof enclosure and includes: the mating connector for the

control circuit, reverse input and secondary transient suppression, input f ilter, alarm relays, lugless terminals for all

f ield wiring, and a terminal strip for storing unused programming jumper tabs. The alarm relays are contact rated 5

amps @ 250 VAC, 5 amps @ 30 VDC and coil rated at 24 VDC. Gold plated program jumpers are used to select

either the normally open or normally closed relay contacts.

3.0.4 Explosion Proof Enclosure

The sensors are packaged in a cast metal explosion proof enclosure. The enclosure is f itted with a threaded cover

that has a glass lens window. Magnetic program switches located behind the transmitter module face plate are acti-

vated through the lens window via a hand-held magnetic programming tool allowing non-intrusive operator inter-

face with the sensor. All calibration and alarm level adjustments can be accomplished without removing the cover

or declassifying the area. Electrical classif ication is Class I; Groups B, C, D; Div. 1.

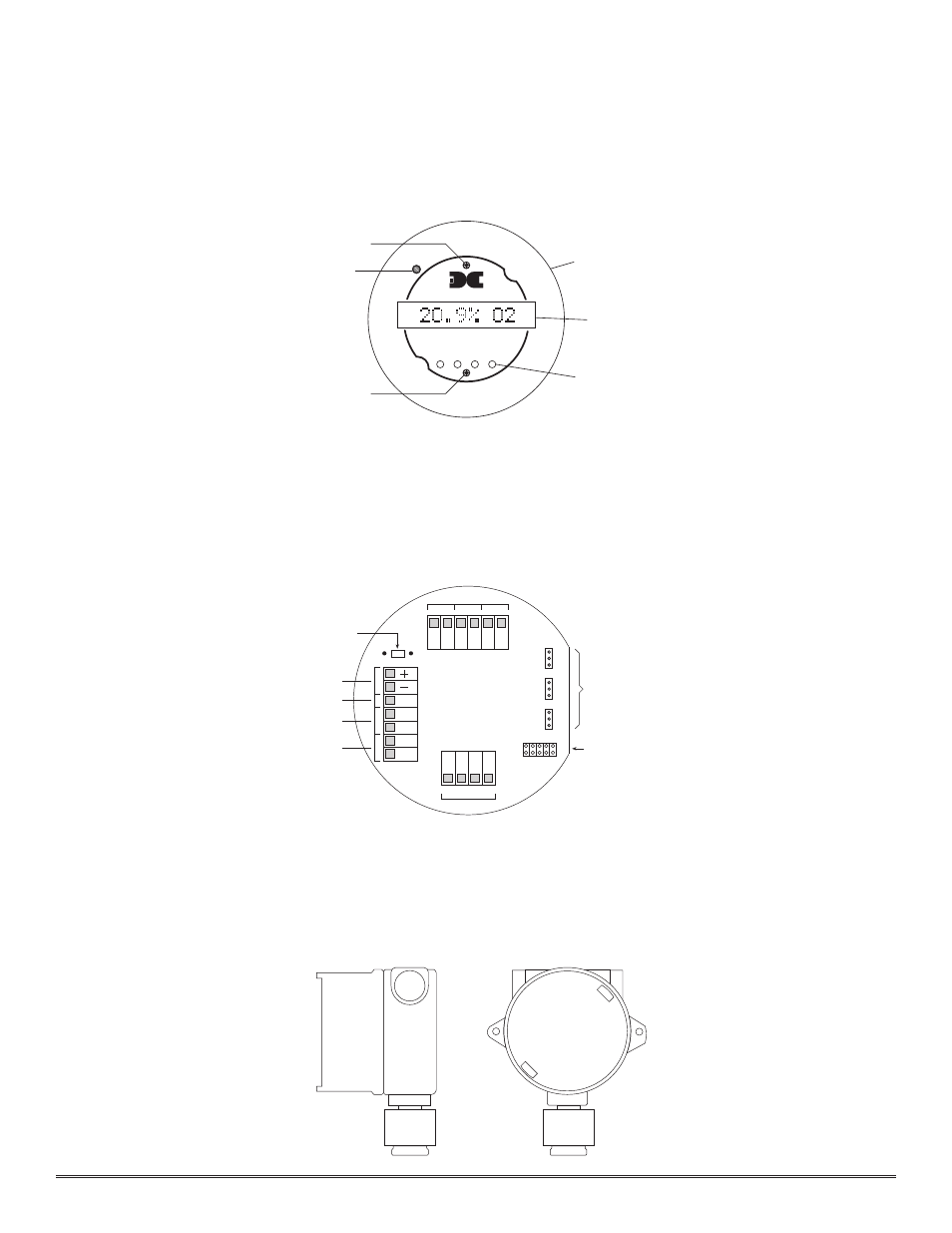

Detcon Model DM-634 Oxygen Sensor PG.4

detcon inc.

Program Switch #2

FLT

ALM

1

CAL

MicroSafe™ O2 Gas Sensor

HOUSTON, TEXAS

PGM

2

PGM

1

ALM

2

MODEL

DM-634

CONTRAST

Alarm & Cal LEDs

Program Switch #1

Menu Driven Display

Plug-in Microprocessor Control Circuit

Display Contrast Adjust

NC

ALARM 1

W

H

T

B

L

K

Y

E

L

B

LU

MA

VDC Power In

NO

NC

NO

NC

NO

N

O

/N

C

C

O

M

N

O

/N

C

C

O

M

N

O

/N

C

C

O

M

FAULT

ALM-2

ALM-1

Alarm Dry Contacts

ALARM 2

FAULT

R1

A

B

A

B

4-20 mA Output

RS-485 In

RS-485 Out

Optional Voltage
Developing Resistor
Use 250 ohm 1/4w

JUMPERS

UN-USED

Jumper Programmable Alarm Outputs
Normally Open or Normally Closed

Sensor

Place un-used alarm programming
jumper tabs here
