Step 2
Attach Drawer and Basket Supports
to Side Panels
A. Using 1” (25mm) Phillips flat head #8
screw, attach the basket supports to the
side panel.
B. Using 1 1/4” (25mm) Phillips flat head
#8 screw, attach the drawer guide support
stick to the side panel (see Illustration 2-B
for proper alignment).
C. Using 5/8” (16mm) Phillips flat head #6
screw, attach the drawer glide (as shown in
Illustration 2-B) to the drawer glide support
stick.
D. Repeat for other side panel. (Reference
Illustration 2-B for proper alignment for
right side).

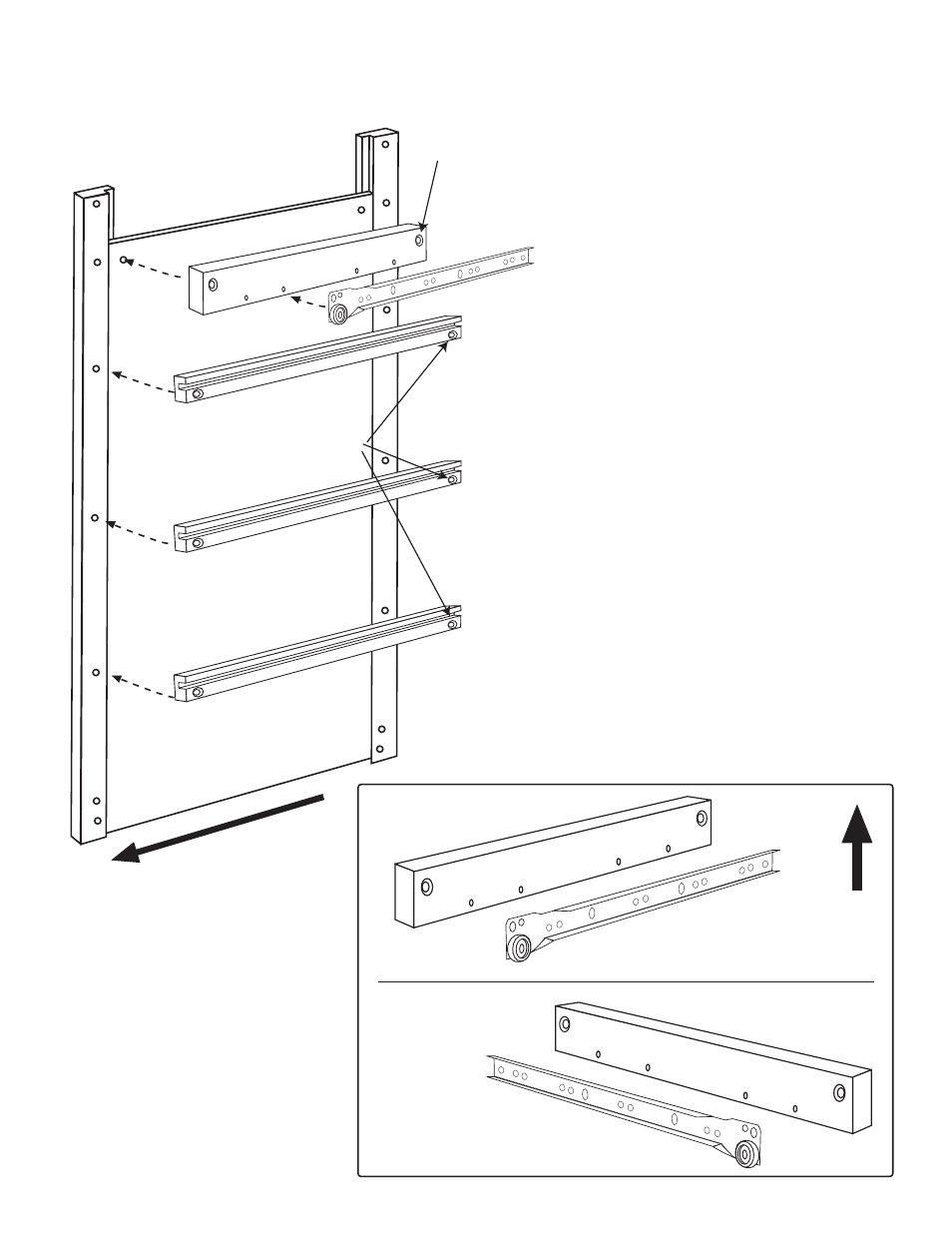

Illustration 2-B
Illustration 2-A
UP
Left assembly
Right assembly
Left Assembly
FRONT
1” screw used here
1 1/4” screw used here
