Catskill Craftsmen 2008 - Manual (Page 3)

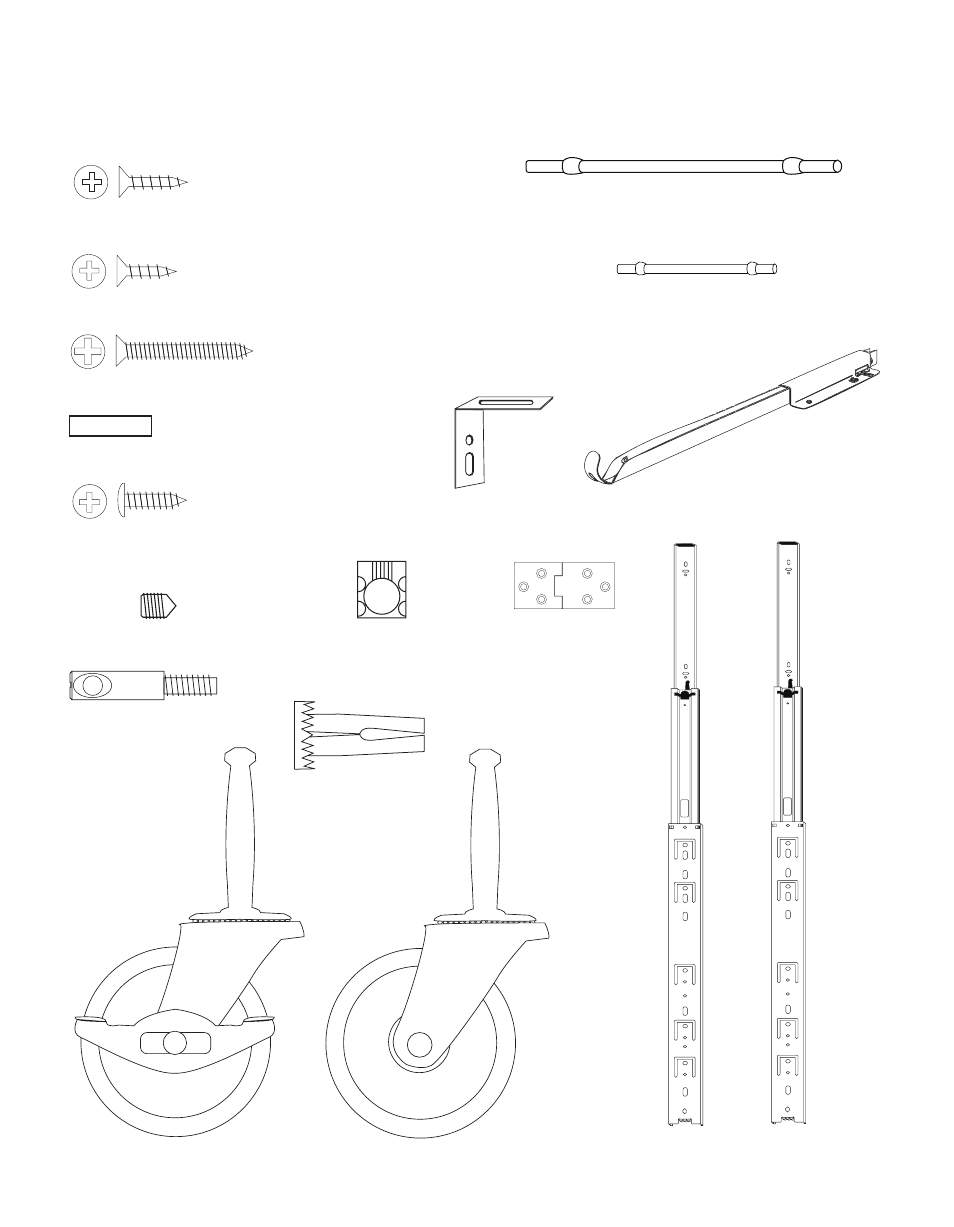

L-Bracket (4)
3/4” Long 3/16” DIA. Steel Pin (16)
5/8” Phillips Flat Head #8 Screw (26)
(Used to attach
hinges/supports)
1 1/4” Phillips Flat Head #8 Screw (12)
Non-Locking Wheel Caster (2) Locking Wheel Caster (2)
Caster Socket (4)
Drop Leaf Support (2)
Hinge (3) Bastion Set Screw (16)
Bastion Post (16)
Bastion Barrel Nut (16)
14” FULL EXTENSION GLIDE SET (1)
P/N GLIDE - 2007
SIDE HANDLE - 13” CHROME TUBE SET (2)
(TUBE/PIPE, PIPE HOLDER, SET SCREWS
P/N SHDL-2007
DRAWER HANDLE - 17 7/8” CHROME TUBE SET (1)
(TUBE/PIPE, PIPE HOLDER, SET SCREWS
P/N DHDL-2007
HARDWARE MODEL 2008
7/16” Pan Head #6 Screw (8)
5/8” Phillips Flat Head #6 Screw (8)
(used on “L” Bracket)
(used to attach glides)
