Quick Installation Guide
This guide covers the installation and basic setup procedures for the
AXIS PrintPoint 140 BJC. If you need more detailed instructions,
please refer to the AXIS PrintPoint 140 BJC User’s Manual.

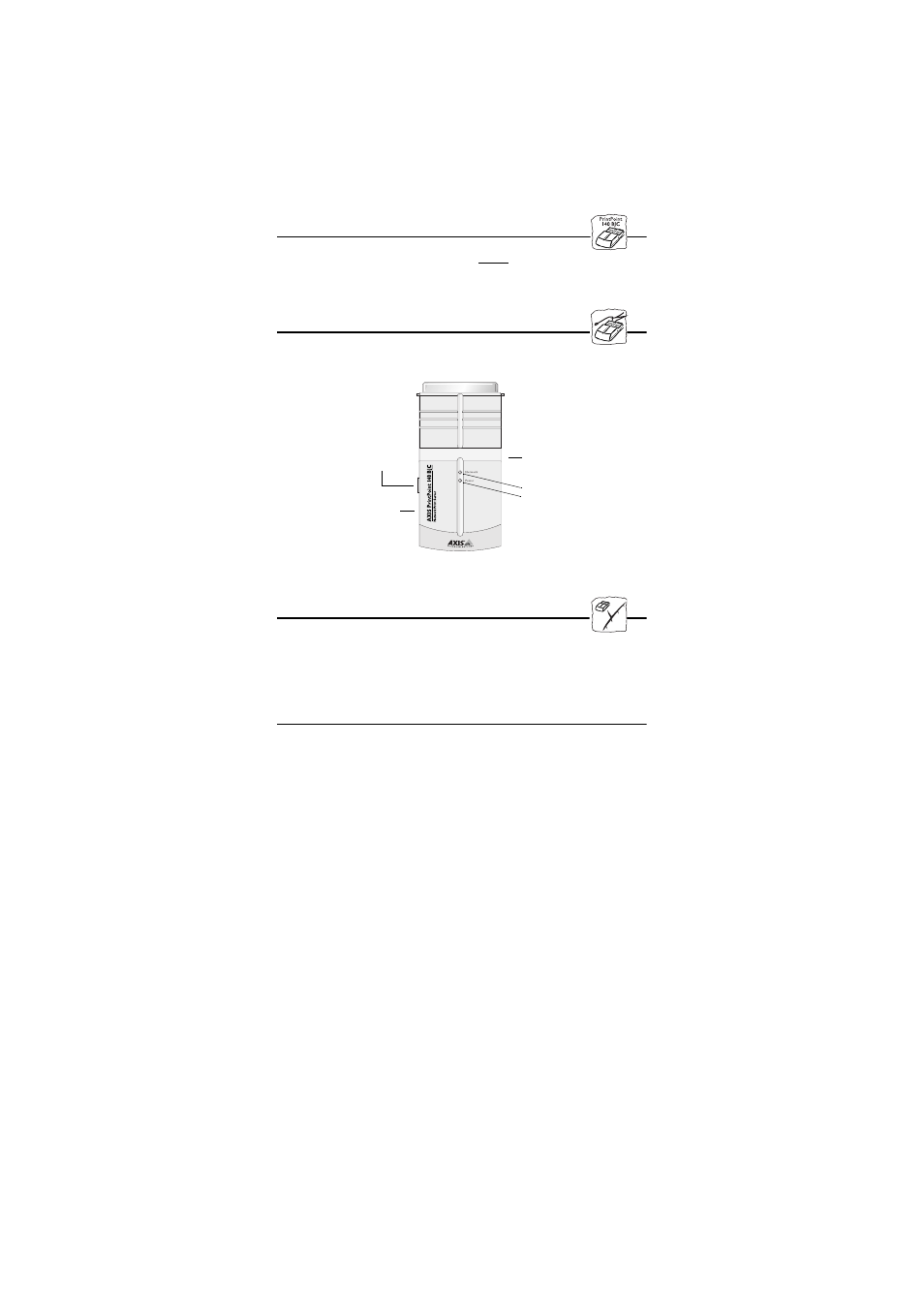

Physical Description
Installing AXIS PrintPoint 140 BJC
You should proceed with the following instructions, as appropriate
for your type of network. Refer to all relevant sections if you intend
to use the AXIS PrintPoint 140 BJC in a multiprotocol
environment.
Hardware Installation
1. Note the serial number found on the underside label of the AXIS
PrintPoint 140 BJC. You need this number during the
configuration.
2. Switch off the printer and plug the AXIS PrintPoint 140 BJC
into the printer’s parallel port.
3. Connect the AXIS PrintPoint 140 BJC to the network using an
appropriate Ethernet cable.
4. Switch on the printer and connect the external power supply to
the AXIS PrintPoint 140 BJC. Ensure that the Network
Indicator is flashing.
5. Successful output of a Test Page will effectively confirm that the
unit has been connected correctly. Press the Test Button to print
a Test Page.
External Power
Supply Connector
Ethernet
10baseT
Connector
Test Button
LPT1 Printer
Connector
Network Indicator
Power Indicator
