WEN 4288 Bench Grinder Pedestal Stand - Manual (Page 3)

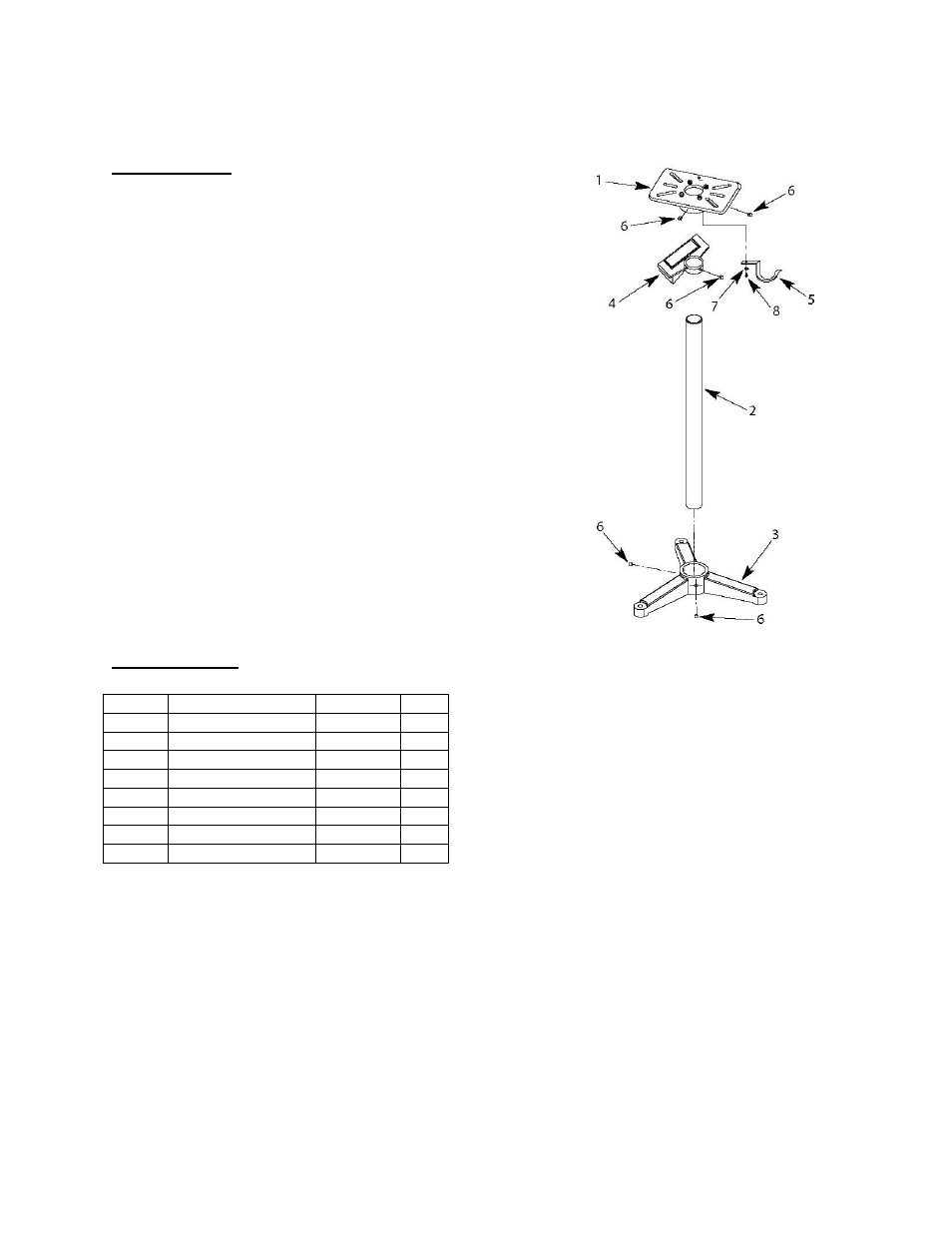

ASSEMBLY
1. Slide column into base (2 and 3); secure by tightening
set screws (6) against column.
2. Slide water pot assembly (4) over column. Tighten set
screw (6) to secure holder.
3. Slide top (1) over column and secure with set screw (6).
4. Secure base to floor for maximum stability and safety.
(Hardware not included.)
5. Attach hook (5) using pan head screw and washer (7 and
8).
PARTS LIST
Item Description Stock # Qty
1 Top 4288-001 1
2 Column 4288-002 1
3 Base 4288-003 1
4 Water pot assembly 4288-004 1
5 Hook 4288-005 1
6 Set screw 4288-006 5
7 Washer 4288-007 1
8 Screw 4288-008 1
