5.3 Chuck Control Connections
5.3.1 Model
SMART-C

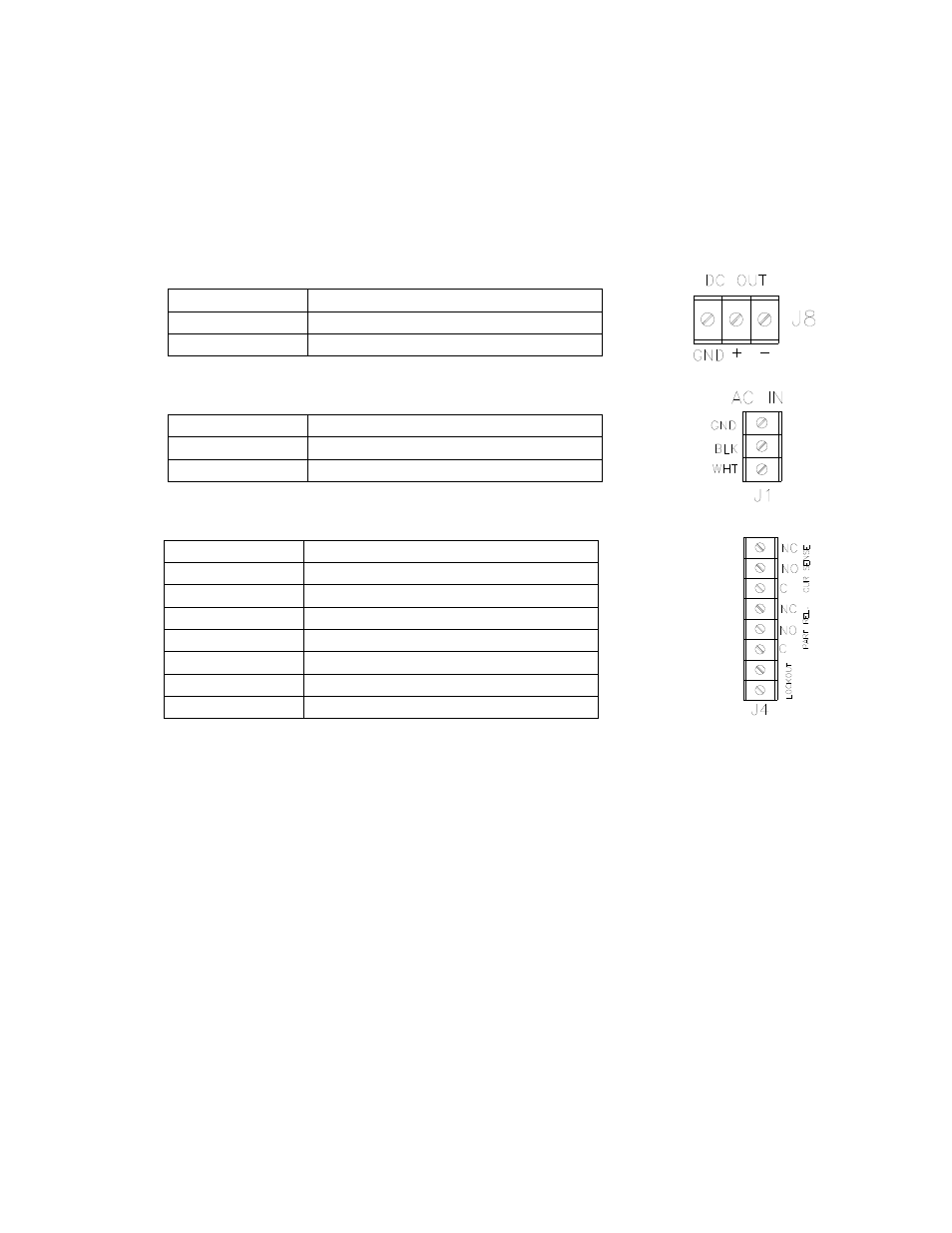

Table 5-1 Connector J8 (Main P.C. Board)
1 GND
2 CHUCK
+DC
3 CHUCK
–DC
Table 5-2 Connector J1 (Main P.C. Board)
1 GND
2 AC
HOT
3 AC
NEUTRAL
Table 5-3 Connector J4 (Main P.C. Board)
J4:1 Lockout
Signal
J4:2 Lockout
Common
J4:3
J4:4
J4:5
J4:6
Current Sense Common
J4:7
Current Sense NO
J4:8
Current Sense NC
5.3.2 Adjustments
Number of Release Pulses (1-16) - Set to 8 pulses at factory (see Release 4.2)
