Step 1
Before starting lay out all parts to your mount and match them to
the parts list provided. Verify that you have all your parts before at-
tempting to assemble the mount.
Note: For the example images the ER-184 is shown.
Step 2
Attach the triangle plates for ER-1 and ER-148, for ER-184 to
the base plate for ER-1 and ER-148, for ER-184 using ¼” – 20
screws for ER-1 and ER-148, for ER-184 and nuts for ER-1
and ER-148, for ER-184.
Step 3
Attach the left and right supports to the triangle plates
for ER-1 and ER-148, for ER-184 using ¼” – 20 screws for
ER-1 and ER-148, for ER-184 and nuts for ER-1 and ER-148,
for ER-184.
Step 4
Attach the support plate for ER-1 and ER-148, for ER-184 to
the left and right supports using ¼” – 20 screws for ER-1
and ER-148, for ER-184 and nuts for ER-1 and ER-148, for
ER-184.
Please verify that all nuts and screws are securely tightened.

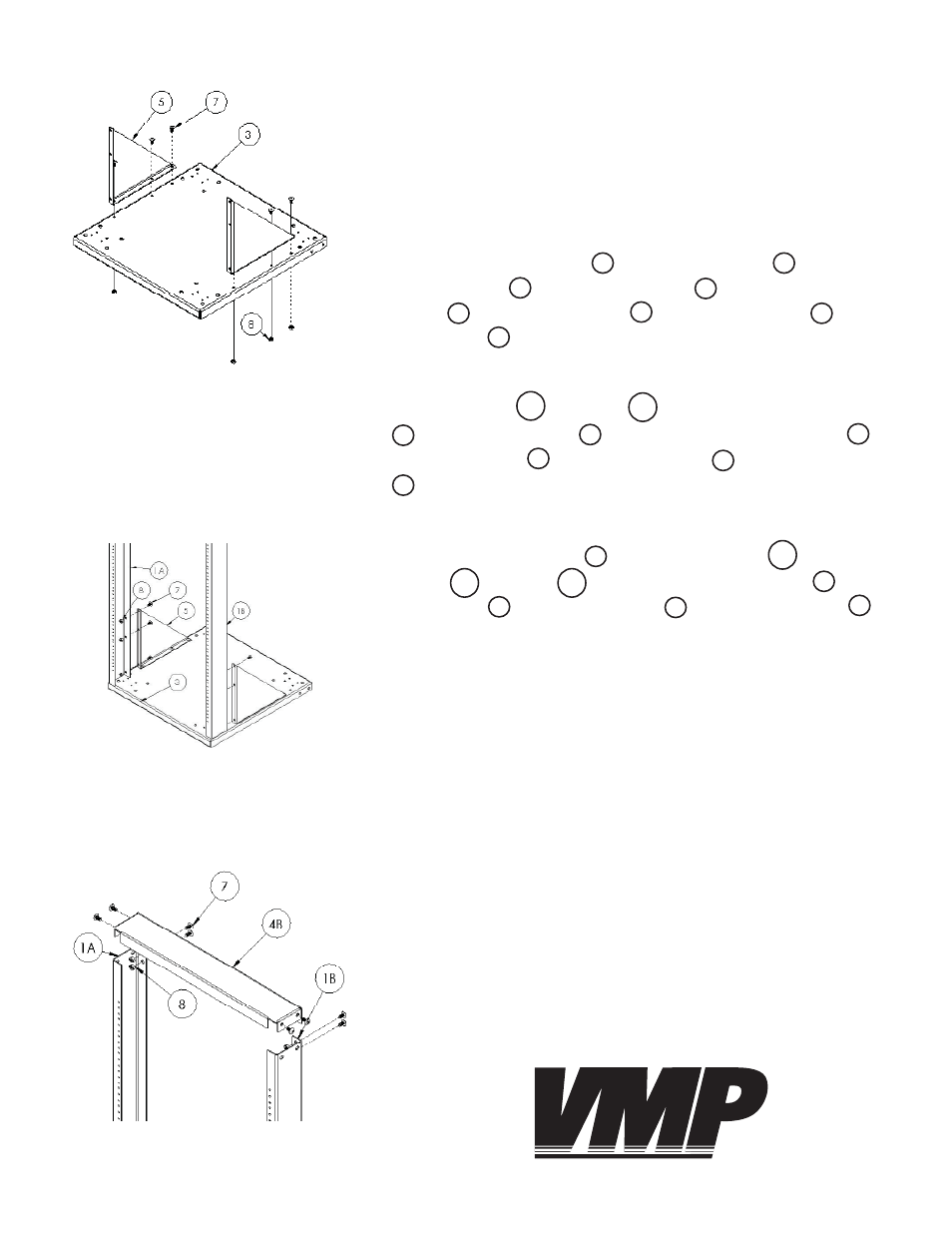

Step 2: Attaching the triangle plates
Step 3 : Attaching the left and
right supports
2
3
WARNING: The installer of these products must verify that the mount-
ing surface, ceiling or wall, will safely support the combined weight
of all attached equipment and hardware. Video Mount roducts will
not be held liable for the improper use or installation of its products.
Enjoy Your Mount!
