Step 1
Before starting, lay out all parts to your mount and match them to
the parts list provided. Verify that you have all your parts before
attempting to assemble the mount.
Step 2
Place the self adhesive pads
(#5) in the wells on the wall arm (#1)
and extension bar (#2) .
Step 3
Measure the distance from the front lip of the bottom of your DLP
television to the rear of your television. Slide the extension bar
(#2)
out of the wall arm (#1) until the distance between the front lip of
the extension bar (#2) and the wall plate of the wall arm (#1) equal
the depth of your DLP television. Tighten down a brake screw (#3)
into the threaded hole in the wall arm (#1) to secure the extension
bar (#2) in place.
Step 4
Mark the wall or desired mounting surface in preparation of instal-
lation of wall arm
(#1) . If mounting to wooden studs, pre drill pilot
holes using a 3/16” drill bit. Attach the wall arm (#1) to the wood-
en stud using the 1/4” by 2” long lag screws (#6) and washers (#7) .
WARNING: Please verify that your mounting surface will support
the combined weight of your mount, mounting hardware, and flat
panel. Also verify that the mounting surface is safe to drill through.
Please note only mounting hardware for mounting to wooden studs
will be provided with the unit. If mounting to a surface other than
wooden studs then other hardware will be required. If in doubt or
uncertain about any of the above, please contact a professional
installer.
Step 5
Insert the DLP television into the brackets. Please verify that all nuts
and screws are securely tightened.

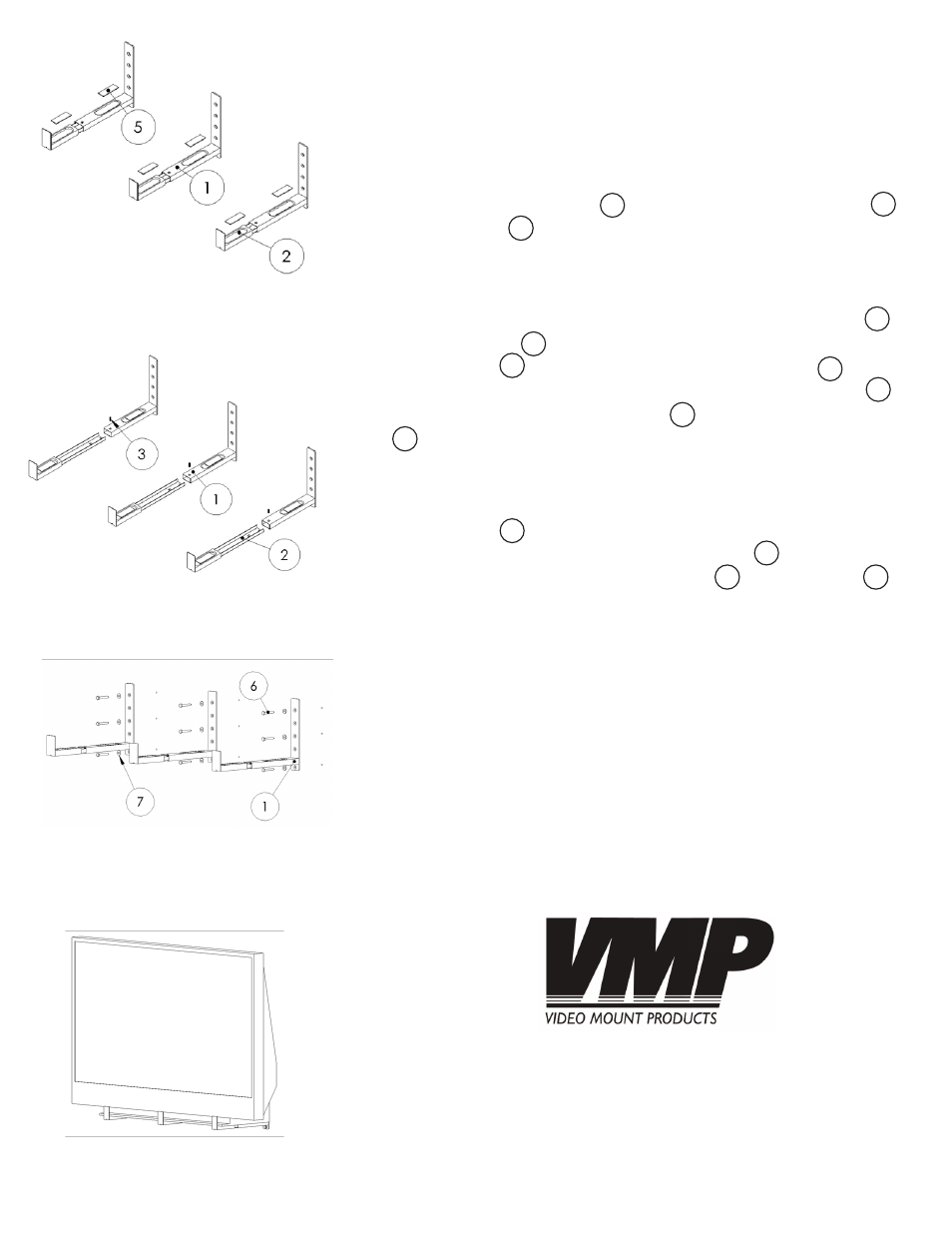

Step 2: Placing the self
adhesive pads
Step 3: Securing the extension bar
WARNING: The installer of these products must verify that the mount
surface, ceiling or wall, will safely support the combined weight of
all attached equipment and hardware. Video Mount Products will
not be held liable for the improper use or installation of its products.
Enjoy Your Mount!
2
1 5
2
Step 4: Mounting the wall arm
to the wall
Step 5: Inserting the DLP
television
1
2
2
3
1
1
1
1
6 7
