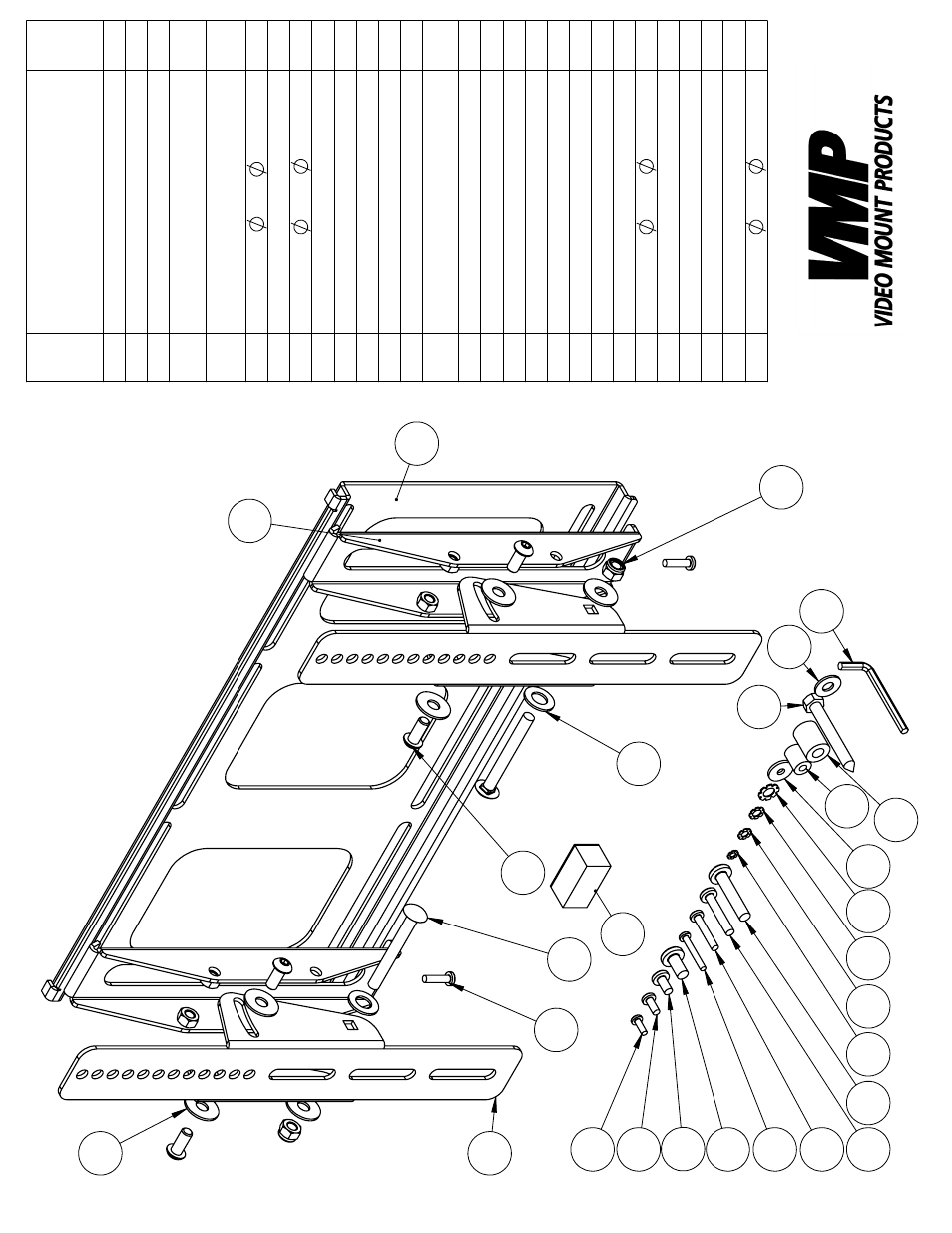

Video Mount Products LCD-MID-FTB - Manual (Page 2)

1
2
4
6
7
22
23
10
25
24
21
20
19
18
17 16 15 14 13 12 11 3
9
5
LCD-MID-FT
26
8
28
27
ITEM NO.
DESCRIPTION
QTY.
1
Wall Plate
1
2
Pivot Bracket
2
3
Screen Mount Bracket
2
4
Socket Screw M8*P1.25*L20
4
5
Carriage Screw 5/16" -
18UNC*L2.75"
2
6
Washer
12*
19*T1.6
2
7
Nylon Nut 5/16" - 18UNC
2
8
Washer
9.2*
25*T1.6
6
9
Cross Screw M3*P0.7*L12
2
10
M5 Allen Key
1
11
Cross Screw M4*P0.7*L12
4
12
Cross Screw M5*P0.8*L12
4
13
Cross Screw M6*P1.0*L12
4
14
Cross Screw
M8*P1.25*L16.5
4
15
Cross Screw M4*P0.7*L30
4
16
Cross Screw M5*P0.8*L30
4
17
Cross Screw M6*P1.0*L35
4
18
Cross Screw M8*P1.25*L40
4
19
Lock Washer M4
4
20
Lock Washer M5
4
21
Lock Washer M6
4
22
Lock Washer M8
4
23
Washer
5.5*
18*T2.0
4
24
Spacer M6
4
25
Spacer M8
4
26
Magnetic Level
1
27
Lag Screw 5/16"*L2.5"
4
28
Washer
8.3*
19*T1.6
4
