Video Mount Products LCD-MID-CM2B - Manual (Page 2)

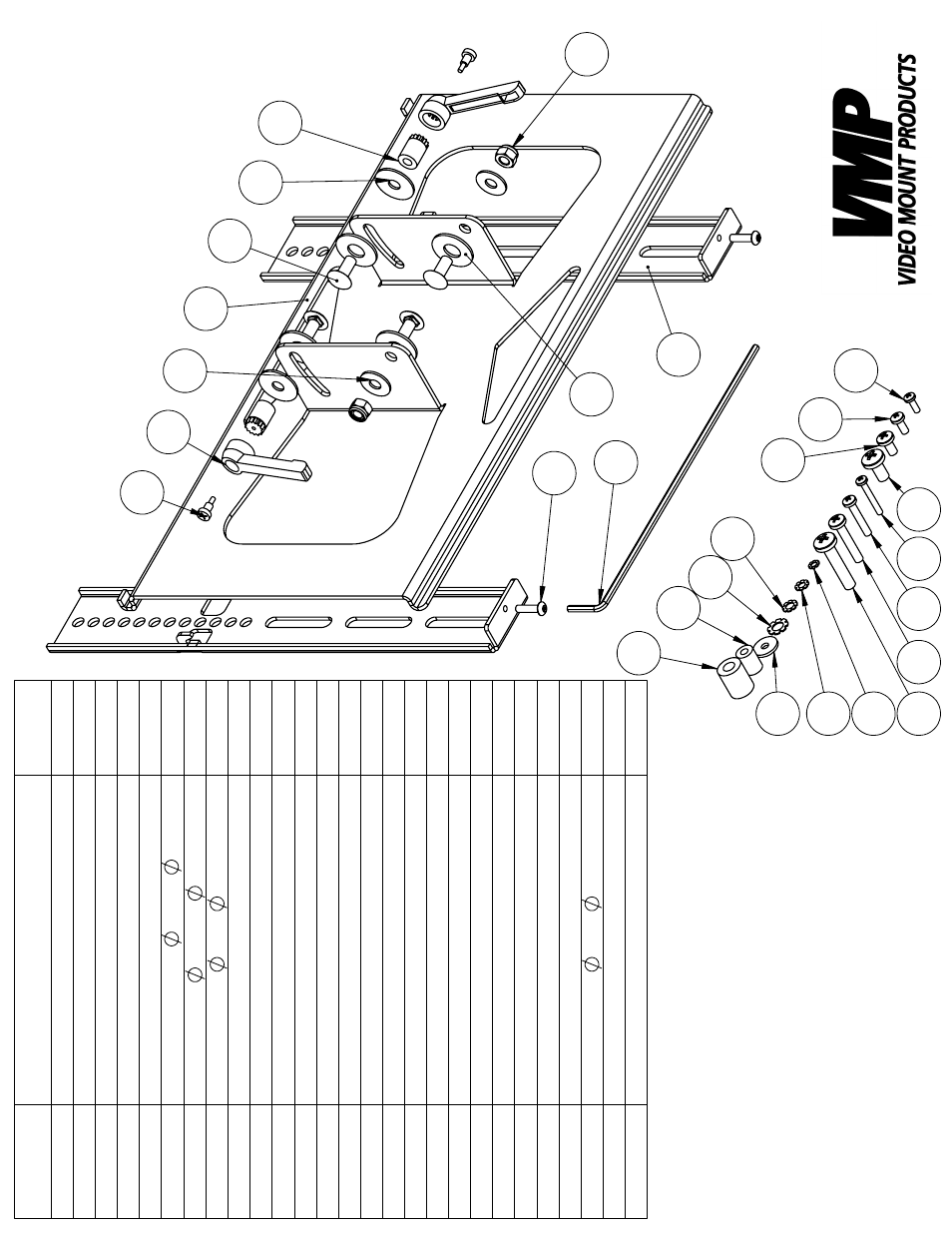

LCD-MID-CM2
11
10
7
8
1
9
5
12
6
2
13
14
15
16
17
18
19
20 21 22
23
25
24
26
27
4
3
ITEM NO.
DESCRIPTION
QTY.
1
Tilt Plate
1
2
Screen Mounting Brackets
2
3
Security Screw M5*P0.8*L20
2
4
Long Allen Key M4
1
5
Carriage Screw M8*P1.25*L20
4
6
Nylon Washer
12.5*
30*T1.8
4
7
Washer
5/16"*
19*T1.6
2
8
Washer
8.5*
25*T2.0
2
9
Gear Nut
2
10
Lever Handle
2
11
Lever Screw
2
12
Nylon Nut M8*P1.25
2
13
Screw M4*P0.7*L12
4
14
Screw M5*P0.8*L12
4
15
Screw M6*P1.0*L12
4
16
Screw M8*P1.25*L16
4
17
Screw M4*P0.7*L30
4
18
Screw M5*P0.8*L30
4
19
Screw M6*P1.0*L35
4
20
Screw M8*P1.25*L40
4
21
Lock Washer M4
4
22
Lock Washer M5
4
23
Lock Washer M6
4
24
Lock Washer M8
4
25
Washer
5.5*
18*T2.0
4
26
Spacer M6
4
27
Spacer M8
4
