Page 4: Module pin assignment
ET-316A
The Specifications are subject to be changed without notice. Copyright © 2007, GlobalSat Technology.
Page 4 of 17
Version 1.2
2. Technical Information

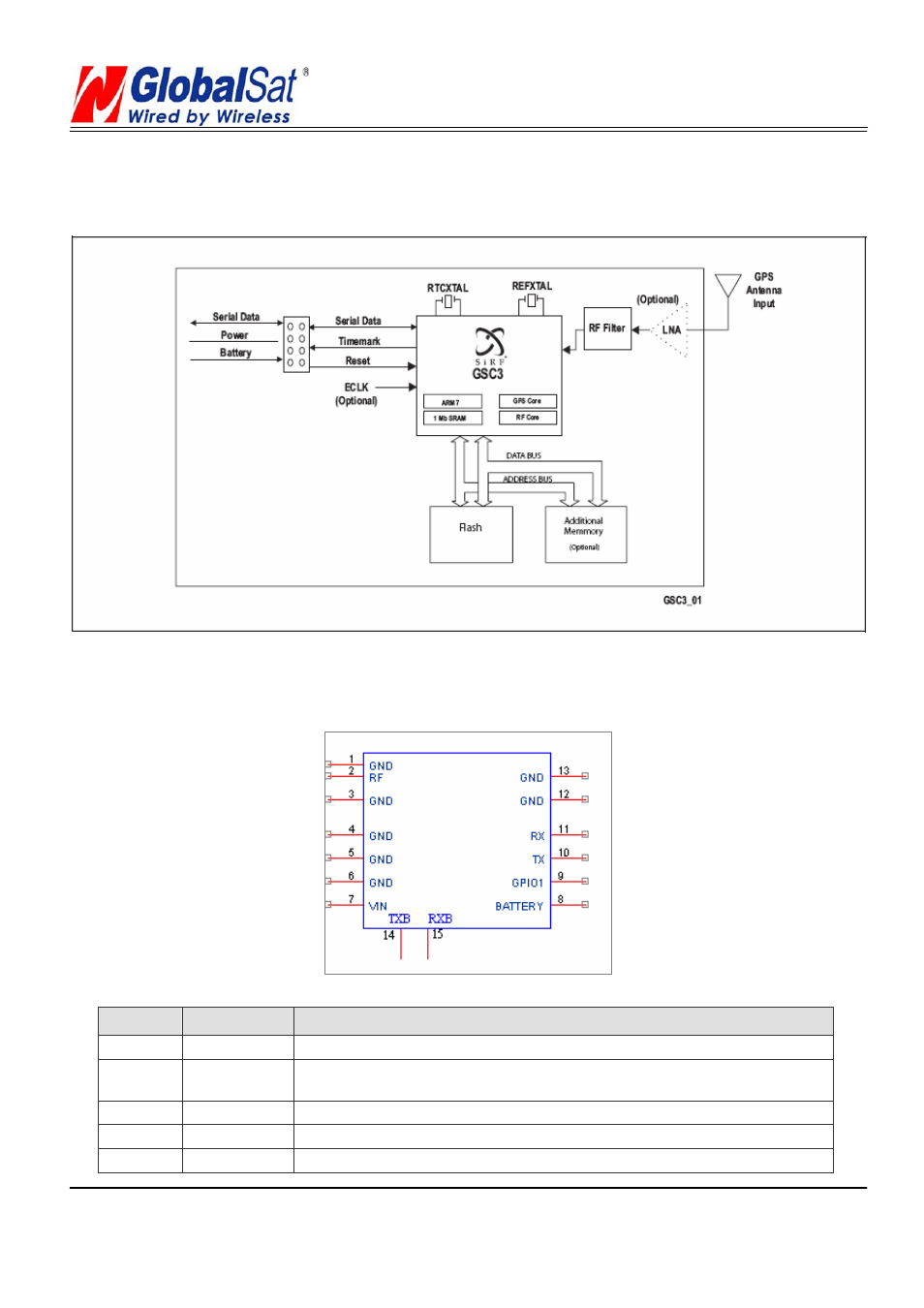

Block Diagram
Module Pin Assignment:
Pin NO.
Pin Name
Remark
1. GND
Ground.
2.
RF
Connect to External Active Antenna. While external antenna is used, the
optional power is needed.
3. GND
Ground.
4. GND
Ground.
5. GND
Ground.
