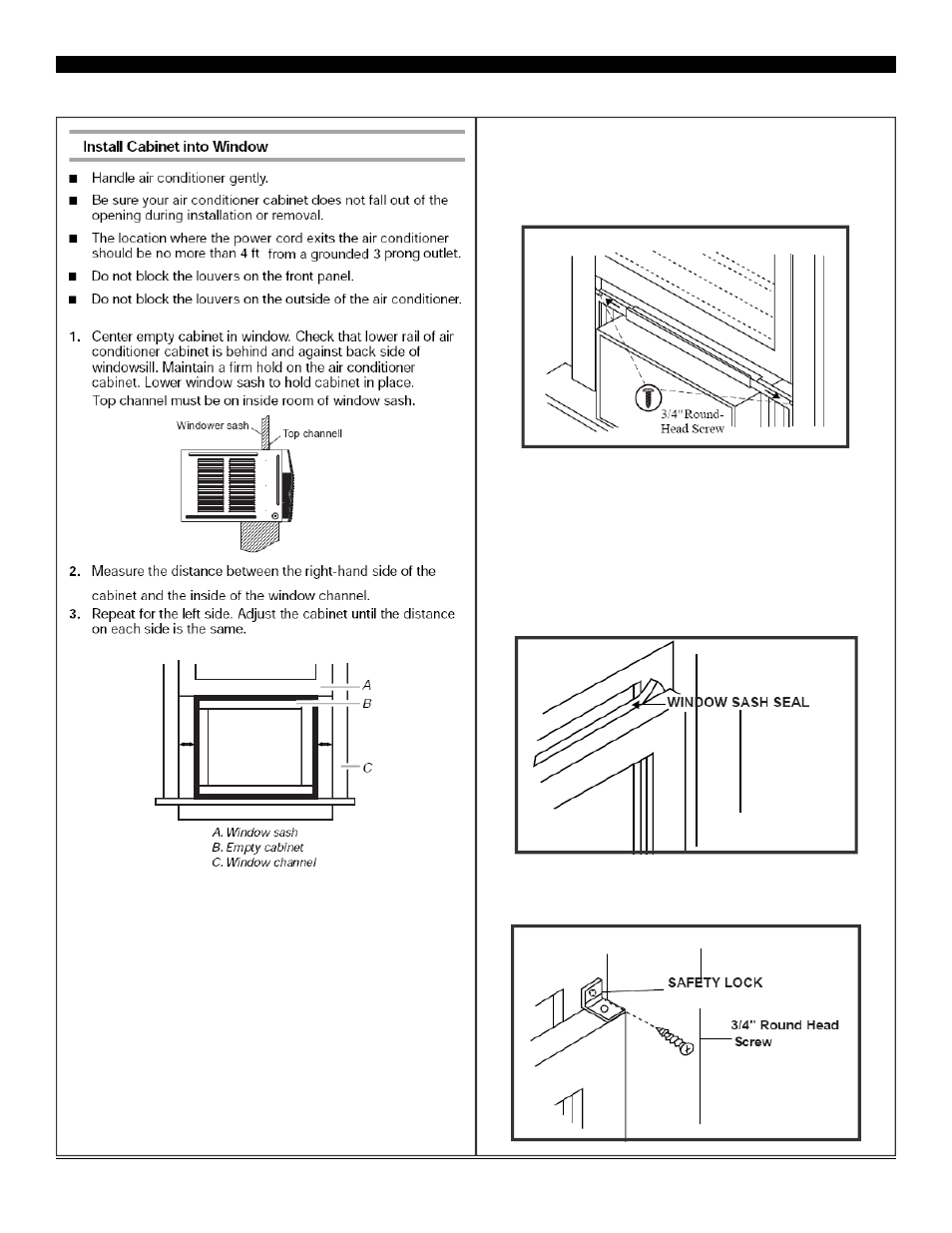

ASSEMBLY & INSTALLATION (CONT.)
10
Extend the Accordion Panels
1. Carefully raise the window to expose the accordion
panel and panel frame. Loosen the locking screws so
the accordion panels slide easily. Pre-drill 3/32” holes if
needed.
2. Extend each panel to completely fill the width of the
window. Tighten the locking screws when the panels
are fully extended.
Install the Window Lock and Sash Seal
1. Trim the sash seal to fit the width of the window. Insert
the sash seal into space between the upper and lower
sashes.
2. Attach the right angle safety lock as shown below. Do
this for both sides.
