Attach side walls to frame – ShelterLogic 26779 18 x 30 Super Max Enclosure Kit User Manual
Page 3

05-26779-0C
Page 3
18' x 30' 2" SUPER MAX - 12 Leg - Enclosure Kit Parts List - Model #26779
Quantity
Part #
Bungee Cords
Description of Parts:
102
10066
2
1
1
Side Walls
Back Panel
3 - Zipper Door
10334
10336
10337
NOTES:
• Canopy Enclosure panels attach to frame with bungee cords.
• Leave Canopy Cover bungees in place when attaching Enclosure panels.
CAUTION:
Bungee Cords are under extreme tension. Use Caution when installing. Safety glasses are
recommended to prevent injury.

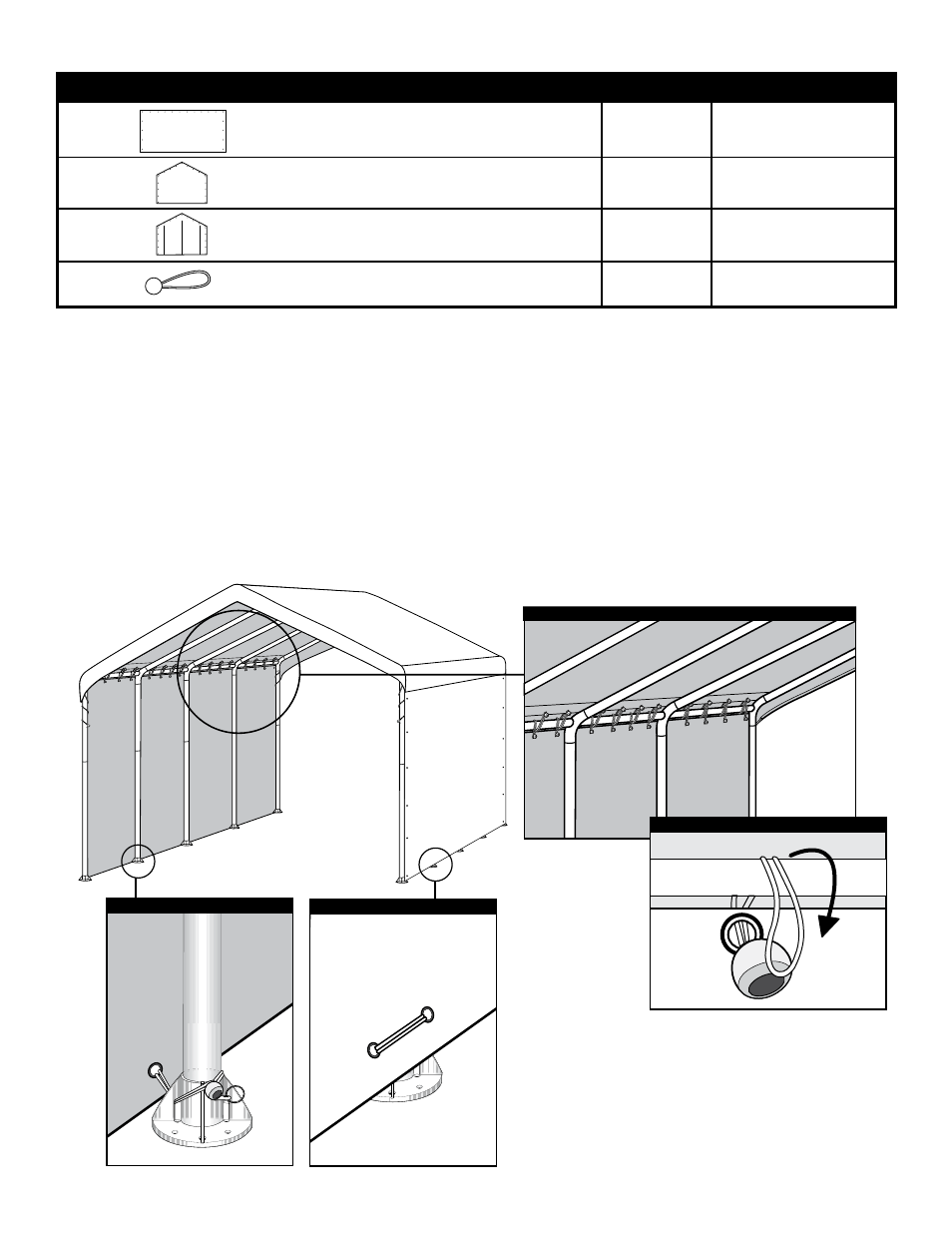

1. ATTACH SIDE WALLS TO FRAME
A.
If tightened at corner leg poles, disengage the TwistTite
™
cord and “S” hook from canopy cover and corner
legs. Re-tighten after all Enclosure panels have been secured, as shown in Step 3.
B. Attach the extension panels with bungees to the cross rails at the top first. Adjust the panels as needed to
ensure a tight and even fit before securing to the leg poles.
Side Wall
Panel
10334
Interior view Side Wall Panel Setup
Interior view of Canopy Base Feet
Exterior view of Canopy Base Feet
Insert Bungee Cord Through Grommet
Side Wall
Panel
(Exterior)
10334
Side Wall
Panel
(Interior)
10334
