ShelterLogic 00800 Pull-Eaze Roll-Up Door Kit User Manual
Page 2
05-10077-00800-OD
Page 2
Shelter Width
Door Width
Number of Poles
6'
4'
1 Swedged Poles + 1 Plain Pole
8'
6'
2 Swedged Poles + 1 Plain Pole
10'
8'
3 Swedged Poles + 1 Plain Pole
12'
10'
4 Swedged Poles + 1 Plain Pole
14'
12'
5 Swedged Poles + 1 Plain Pole
A. Measure width of door between the zippers to determine size.
B. Slide pipes into one another to assemble.
NOTE: Fill pipe with sand for added weight and insert plugs.
C.
Slide pipe into pocket at bottom of door.
Attach butterfly cleat with screws to second vertical rib, about 8" down from cross rail on either side.

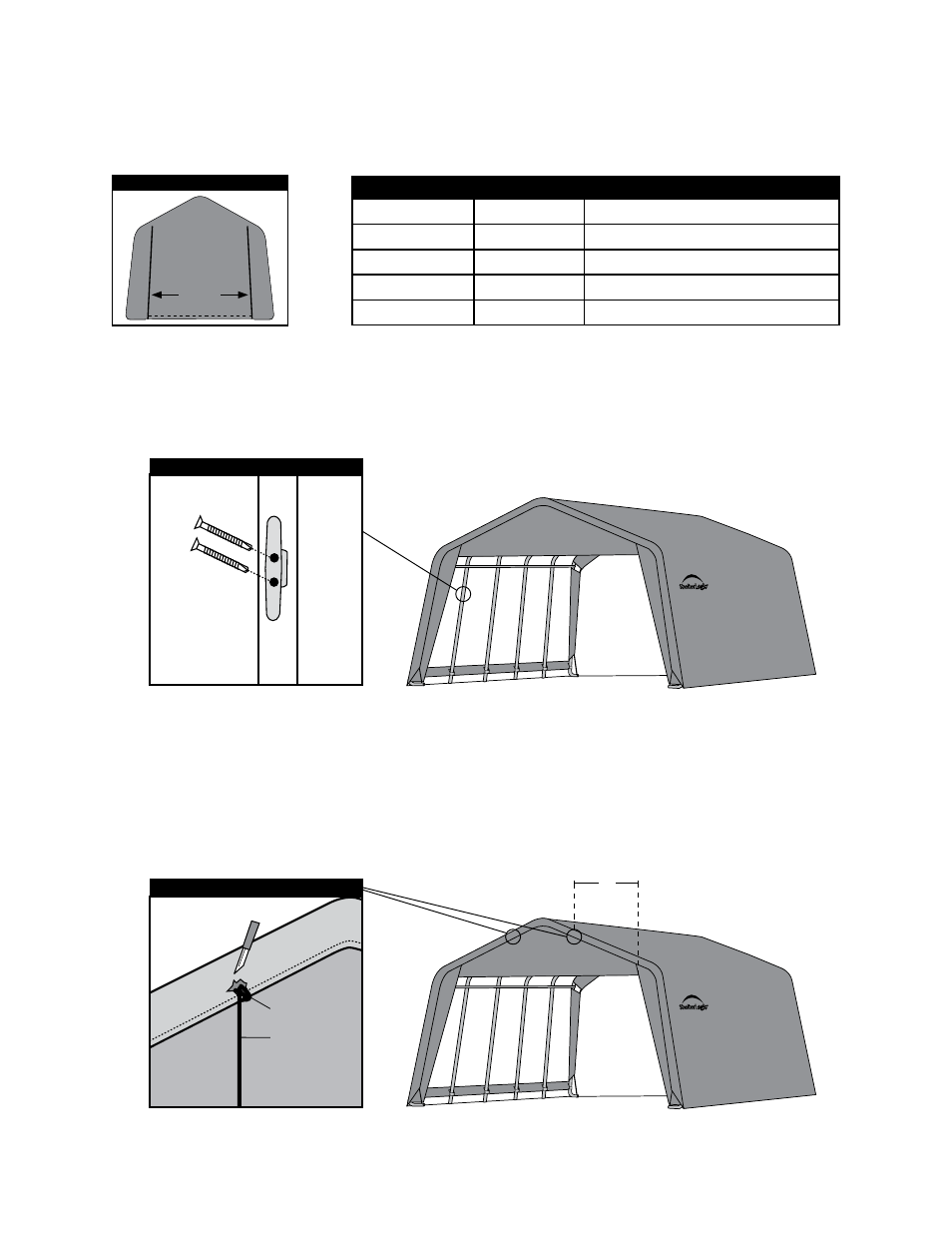

2. AttAch bUttERfly clEAt to InsIDE of shEltER fRAME
3. AttAch RoPE EnDs to oUtsIDE of shEltER covER
1. AssEMblE PIPEs foR bottoM PocKEt of DooR.
Shelter Cover Exterior
Door Panel Exterior
Width
Between
Zippers
A. Cut a small slit/hole, approximately 18" in from zipper, on the outside of the cover, just above
the webbing rope. Do this on both sides.
B. Tie a knot around the cover webbing through the hole in the cover.
"Approximately"
18"
Butterfly Cleat
Tie Knot
Rope
Cover
Door Panel
